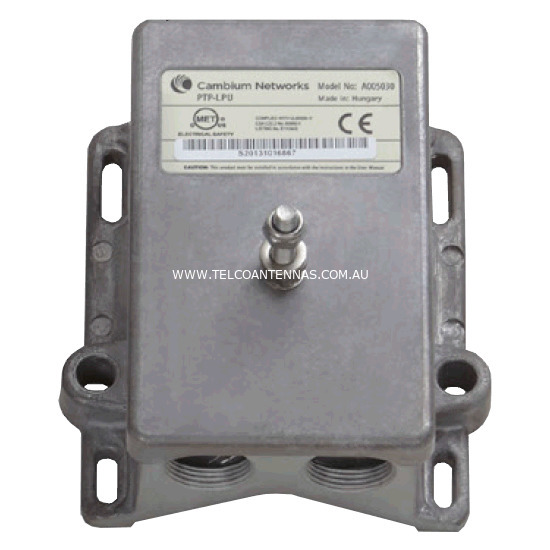

Cambium PTP 650LPU (Lighting Protection Unit) & Grounding Kit



Key Features



  • 2 protection methods; line-to-line and line-to-ground

  • Shunts excess power to ground within 5 nanoseconds

  • Lightweight unit for easy transport to installation location.



Usage



  • Lightning strikes are the most typical cause of system outages or failures of mast-mounted equipment, especially when mounted as high as 300m, therefore, lightning protection is critical to minimise the potential for damage

  • Cambium Networks strongly recommend that all PTP 650 installations be deployed with the PTP-LPU

  • Network operators should always follow best-practices for grounding and lightning protection - doing so will minimise network outages and reduce the associated costs of tower climbs and equipment repair/replacement

  • The ruggedised design of the PTP Lightning Protection Unit offers two protection methods: line-to-line and line-to-ground, this ensures that a surge in current induced onto the PTP 650 cabling is diverted away from the ODU

  • When installed correctly with the recommended grounding practices (i.e. using solid shielded CAT5e cable), the PTP-LPU quickly shunts the excess current to ground (typically within five nanoseconds)

  • By grounding the power surges before they can harm the units, the Cambium Networks PTP-LPU provides radios the best protection from the harmful effects of lightning

  • The PTP-LPU’s connections and enclosure are designed for IP 66/67 water and dust protection so they can be installed in the most difficult terrain and environmental conditions

  • Easily mounted on a wall or tower with a PTP radio, the PTP-LPU includes a minimum number of components

  • The PTP-LPU is small, lightweight, making it extremely easy to transport even up to the highest towers

  • Each PTP 650 radio requires two PTP-LPU devices (both included in the single kit part number) – one installed on a tower or a mast adjacent to the radio and another installed at the cable entrance point leading to the building entry point of the network.





Specifications / Frequency


  • Transfer rate: 1000 Base T

  • Connectors: RJ 45

  • Protection mode: Line-to-line and line-to-ground

  • Response time: 5 nanoseconds typical

  • Mounting: Pole mount 25-75 mm or wall mount

  • Metal enclosure: Projected 10-year operational life

  • Dimensions (including glands): 16 cm Length, 10 cm Width, 9 cm Height

  • Weight: 700 g

  • Wind loading: 242 kph

  • Operating temperature: -40° C to +60° C

  • Humidity: 100% condensing

  • Surge rating: 10/1000us 150 Amps min, 8/20us 1500 Amps min

  • Environmental protection: IP66/ IP67 (Dust and Water Intrusion Protection)



(C000065L007A)

SKU C000065L007A
Brand Cambium
Shipping Weight 0.0450kg
Shipping Width 0.300m
Shipping Height 0.080m
Shipping Length 0.290m
Shipping Cubic 0.006960000m3
