Freestanding Hinged Mast - 15m

Made To Order

Key Features

• Hot dip galvanised and can be powder coated or painted in the colour of your choice

• Engineered Pad or Pile foundation extra, please enquire

• Mast head tilts all the way to ground level for easy access

• Eliminates the need for EWPs (Elevated Work Platform)

• Simple, practical design for safe operation

• Mounts any type of antenna with offset brackets (brackets in photo extra)

• 150mm galvanised box section, 3 x 8m long, 261kg x 2,1 x 190kg

• Base Plate hole centres are 300mm x 300mm,

• This mast can be customised to individual requirements, including:

  • Grounding/surge protection to protect equipment against lightning

  • Mast head design allowing for antenna array, sectors, etc.

  • Engineered Pad or Pile Foundation available

  • Additional mounting brackets along length of mast

  • Stand off bars, access doors, boxes, etc.

  • Multiple sizes available.

Usage

• This product has been specifically designed to meet a demand for a tall independent antenna mast that can be lowered allowing for convenient adjustments and or maintenance of mounted equipment

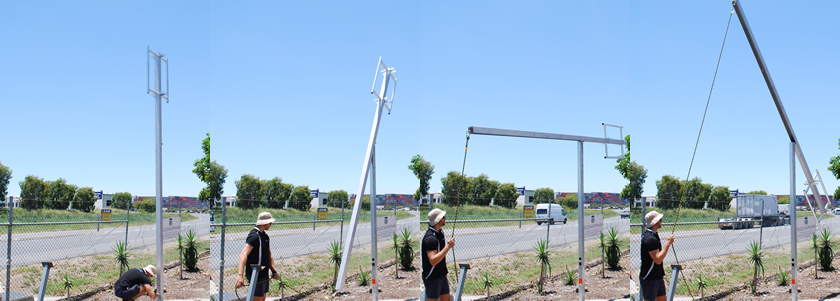

• The pivoting design of this mast means that it can be lowered  before re-raising and locking into place

• Perfect for mine sites, airports, and rural facilities, these masts offer a simple, safe, and effective method of RF equipment maintenance that can be carried out by one or two people

• The lowering mast is the ideal solution where space is limited and cherry pickers are not feasible

• The height of the mast also lends itself for use by clients looking to mount antennas high enough to clear trees or other obstructions in order to receive a clearer and stronger signal

• Future proofing comes in the form of convenient access to the mast head and as new technology becomes available you will be able to easily replace/upgrade antennas, radios etc. to ensure that you are achieving the best performance possible

• Please contact us for orders of multiple masts, trade pricing and to discuss customisation of mast for a specific project

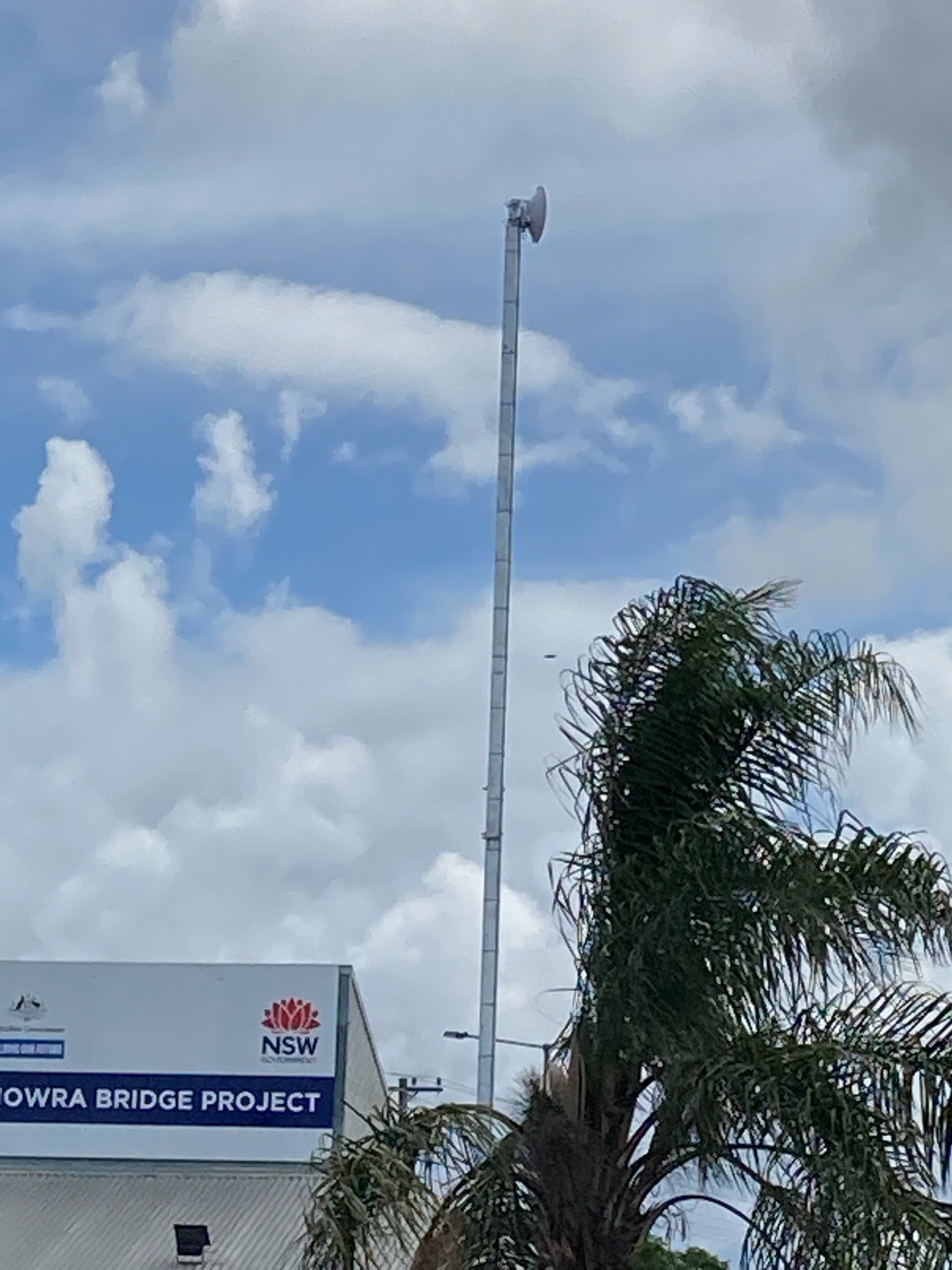

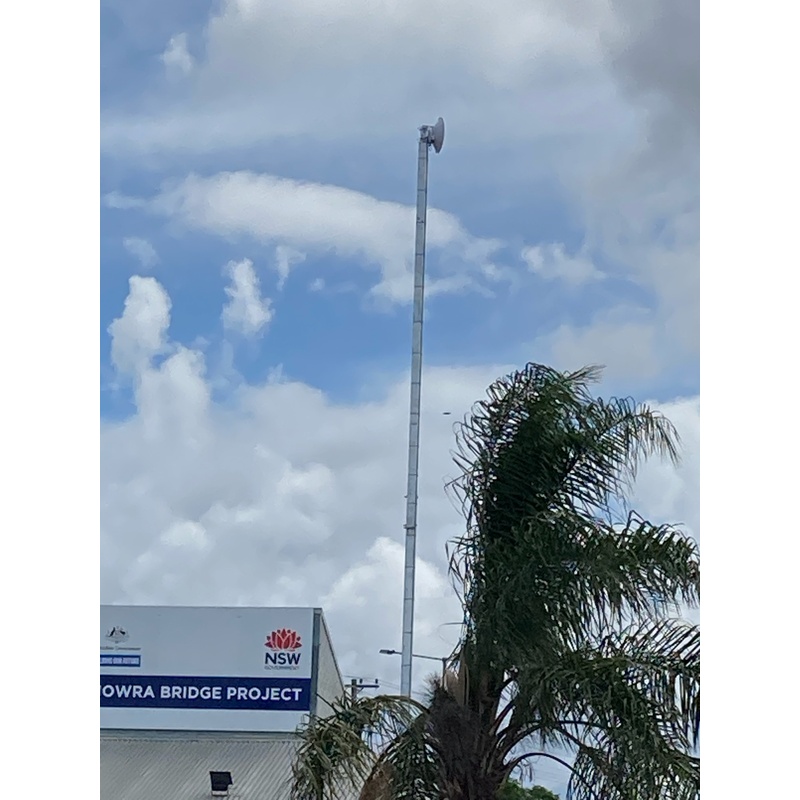

• The tower shown has a Custom Mast Head installed.

Engineer approved recommendation

• Due to the complicated nature of tower infrastructure, it can prove invaluable to have an engineer approved recommendation for solutions that will accommodate your particular project.

• We offer a Tower Recommendation Proposal Consultation Service, providing a detailed report that you can use for the planning of communication assets.
