Ubiquiti UniFi Outdoor+ High Density Access Point



  • HSR superheterodyne active filter

  • Ideal for high subscriber density, collocated access points

  • Coverage up to 183m (600ft), speeds up to 300Mbps in 802.11n

  • Second Ethernet port for easy bridging

  • Supplied with 48VDC POE injector, wall and ceiling mounting kit



The UniFi Enterprise WiFi System is a scalable enterprise access point solution designed to be easily deployed and managed. Spread the UniFi love to the outdoors with the UAP Outdoor+ model - its weather-resistant case is designed specifically for outdoor installations. Dual omni-directional antennas provide for complete 360° wireless coverage and coverage radius of up to 183m. The antennas are also removable for the addition of higher power or directional antennas.

...


High Capacity WiFi

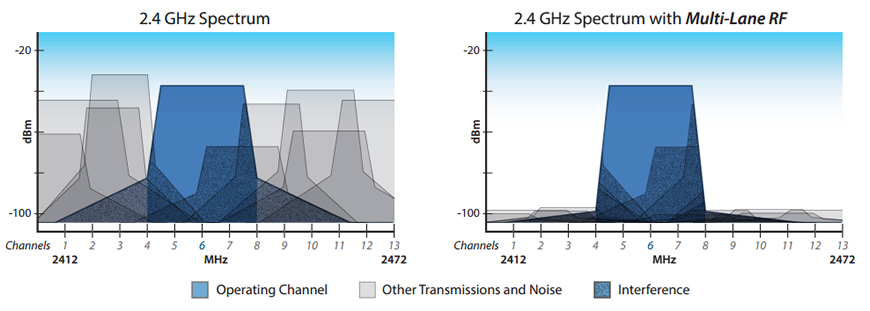

Ubiquiti's Multi-Lane RF is one of the most exciting innovations to enter the WiFi field in a long time. Instead of conventional 2.4-2.5GHz bandpass filters, the Outdoor+ employs a High Selectivity Receiver (HSR) to filter out only the operating channel from the rest of the WiFi spectrum, eliminating interference effects from nearby access points polluting the spectrum. The superheterodyne based HSR results in an additional +30dB adjacent channel rejection resulting in amazing real-world results.

When compared to other market leaders Cisco, Aruba, and Rukus, this equates to an incredible 112% increase in DL and 124% greater UL throughputs in high noise environments. Even in interference-free environments, Ubiquiti Outdoor+ secures the edge over all competing brands by offering higher DL throughputs in high subscriber densities.

superheterodyne high capacity wifi deployment

ubiquiti unifi controller software demonstration

Intuitive and Robust Configuration, Control and Monitoring


Instantly provision and configure thousands of UniFi APs. Quickly manage system traffic.



Custom Maps and Google Maps

Upload custom map images or use Google Maps for a visual representation of your wireless network.



WLAN Groups

Take advantage of WLAN groups for flexible configuration of large deployments and enable wireless connection between APs to extend range.



One UniFied Network with Zero-Handoff Roaming

Create one large wireless network across multiple APs so users can roam and seamlessly maintain their connection as they switch to the nearest AP. Unlimited scalability.



Intuitive UniFi Controller Software

The UniFi Enterprise WiFi System includes the UniFi Controller software. The software installs on any PC or Mac within the network and is easily accessible through any standard Web browser. Using the UniFi Controller software, an Enterprise WiFi network can be instantly configured and administered without any special training. Real-time status, automatic UAP device detection, map loading, and advanced security options are all seamlessly integrated. Controller software is also available for Linux using apt-get commands. The UniFi system only requires the controller software for installation and management and can run independent of the controller software for day-to-day operation.



ubiquiti unifi management software distributed wifi access point throughout building




Read More

(UAP-Outdoor)

SKU UAP-Outdoor
Brand Ubiquiti
Shipping Weight 0.9000kg
Shipping Width 0.300m
Shipping Height 0.100m
Shipping Length 0.300m
