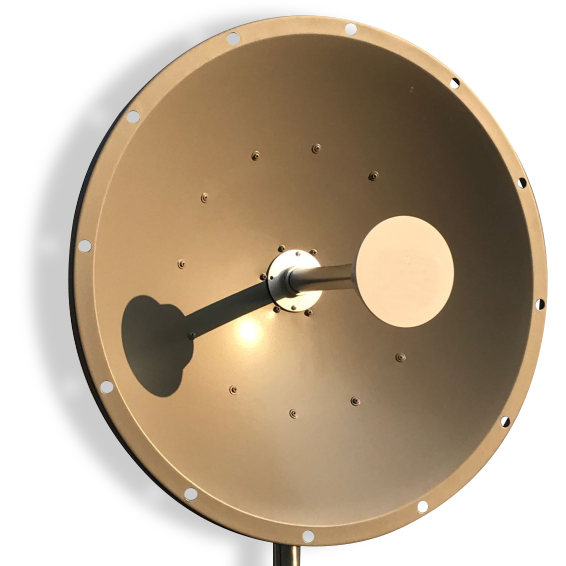

Telco XPOL MIMO Industrial Class Solid Dish 4G Antenna



Key Features



  • Dual-polarised antenna feed with high isolation

  • Industrial grade high precision 0.6 m dish

  • Ultra high F/B ratio

  • Two low PIM N Female connectors

  • 17.5 to 19.0 dBi gain across 1800 and 2100 MHz bands.



Usage



  • We specifically designed this heavy duty solid dish antenna for operation on 4G LTE MIMO networks

  • This antenna has an incredibly low VSWR and <-130 dBc PIM, making it the ideal antenna for commercial and industrial 4G applications, as well as suitable for broadcast and carrier applications

  • With a heavy duty design, the key to this antennas unmatched performance on 4G networks is the solid dish and microwave-class feedhorn element

  • The finely machined 0.6 m parabolic reflector provides a dead stable main lobe, with sidelobe interference being effectively eliminated with its -32 dB typical F/B ratio - this is extremely important as a cleaner signal will allow the modem to negotiate a more complex (and faster) method of modulation

  • The 17 dBi gain was chosen to maintain a beamwidth above 15 degrees to permit operation in non line of sight applications

  • While designed for commercial and industrial applications, this antenna suits a wide variety of 4G applications from high speed broadband in city areas, remote and rural farming properties, to linking island communities back to mainland

  • As with any high gain antenna, this product is designed for operation where the antenna beam is clear from obstructions for the first 50-100m of the link

  • The tight beamwidth assists in minimising sidelobe interference however it also reduces performance in highly multipath areas (i.e. where signal is scattered around buildings and dense bushland) and accordingly lower gain antennas may be more suitable.





Specifications / Frequency



Network Compatibility
Yes/No
Gain
Telstra/Optus/Vodafone 4G (1800 MHz)
compatible
17.5 dBi
LTE Bands 2, 25, 35-37, 39 (1900 MHz)
compatible
18.3 dBi
All Carriers - Urban/Metro 3G (2100 MHz)
compatible
18.7 dBi
LTE Bands 1, 33, 34 (2100 MHz)
compatible
18.7 dBi



Electrical Specifications



  • Frequency Range: 1710 to 2170 MHz

  • Input Impedance: 50 Ω VSWR: <1.8:1 (-17 dB RL typical)

  • Polarisation: ±45° (XPOL)

  • Vertical Beamwidth: 15° (± 3°)

  • Horizontal Beamwidth: 15° (± 3°) Front to Back Ratio: >30 dB (33 dB typical)

  • Inter-Port Isolation: >30 dB (32 dB typical) PIM IMD (3rd Order): <-130 dBc

  • Radiation: Directional

  • Maximum Power: 100 Watts



Mechanical/Environmental Specifications



  • Construction: PVC Radome, Stainless Steel Tilt Bracket

  • Cable: 167mm Semi-Flex SF141 Blue PVC Tails

  • Input Connector: 2x N-Type Female White Bronze

  • Wind Rating: 198 km/hr

  • Temperature: -40 °C to +60 °C

  • Weight: 4.0 kg incl mounting kit

  • Dimensions: 600 x 500 mm (Ø x D)

  • Packing Dimensions: 815 x 660 x 200 mm (L x W x H) Mounting: 35 to 110 mm Ø pole



telco fabrications engineer certified mount









  • This antenna is laboratory tested in a certified 3D Anechoic Chamber.

  • All listed electrical specifications and performance are produced from real-world test data, and not the product of computer simulation.



Connection



This antenna has short SF141 tails with an N Female connectors for attaching thick 4G-rated extension cables (e.g. LMR400).



n female connector

2x N Female Connectors [pictured]


Read More





"From the position shown we have line of sight to the Telstra tower (19 km) and to the office complex (500m). Using the Telco 4G MiMo dish antenna, my Netcomm NTC 140W modem reports a signal strength of -55 dB. We achieved some variation in speeds with the best results being 42 M down and 23 M up."



(17-1800XPOL)

SKU 17-1800XPOL
Brand Telco Antennas
Shipping Weight 9.0000kg
Shipping Width 0.705m
Shipping Height 0.215m
Shipping Length 0.705m
Shipping Cubic 0.106860375m3
