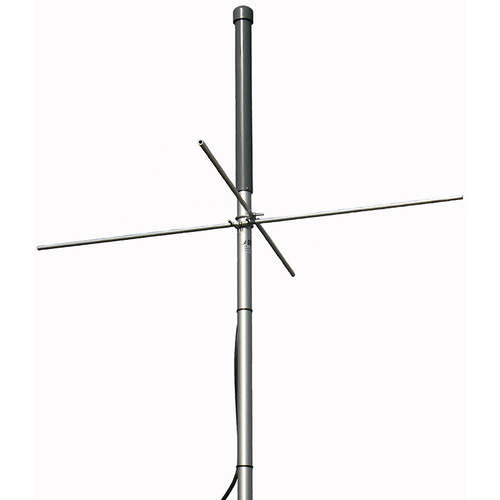

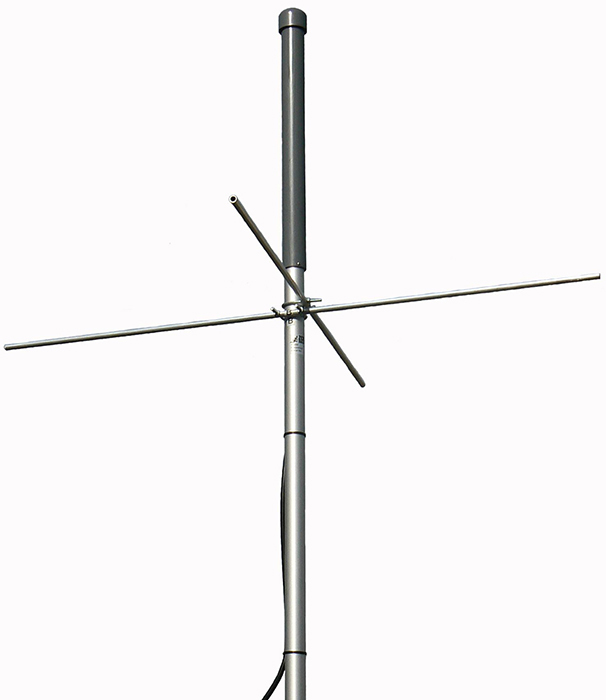

Suitable for mounting to lightweight towers, the B55SS monocone covers the entire Air Band frequency 118-137MHz, making this the ideal fixed position antenna for Airports where a variety of channels are used.

With an omni-directional radiation pattern and integral ground plane, this monocone produces a low angle of radiation making it comparable with centre-fed dipoles.

Mounting hardware, coaxial feeder cables, connectors and other installation accessories are all available separately.

Product Specifications

Weight 4.6kg
Dimensions Height: 1.55m
Construction Grey radome, stainless steel radials and mount tube
HEPlane H Plane: 360° omni-directional, E Plane: 65°
Impedance 50 Ohms
Polarisation Vertical
Connector N-type female fitted to cable tail
Frequency Air Band 118-137MHz
Bandwidth Full band
Tuning Factory at 1.5:1 VSWR
Gain 0 dBd
Max power 500 Watts



Please note; this antenna is built to order, please contact us for the expected lead time.

(B55SS)

SKU B55SS
Brand ZCG
Shipping Weight 5.0000kg
Shipping Width 1.600m
Shipping Height 0.300m
Shipping Length 0.350m
Shipping Cubic 0.168000000m3
