DC Block DIN Female-DIN Male



DC Block DIN Socket-DIN Pin

DC Block DIN Jack-DIN Plug



Usage

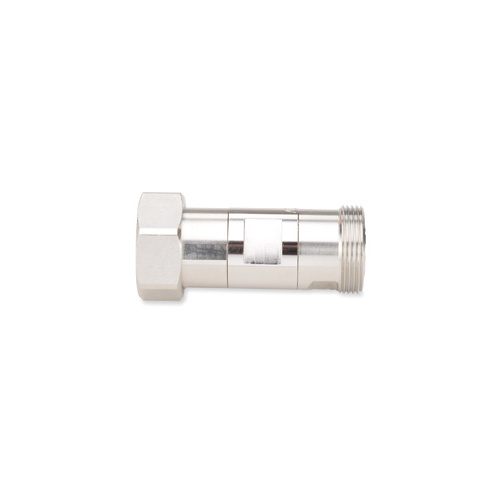

  • COMMSCOPE ADCB-DFDM-DB A DC block separates or blocks DC voltage (galvanic isolation) and lets RF frequency pass along a coaxial transmission line.



Specifications



General:



  • Interface 7-16 DIN Female

  • Interface 2 7-16 DIN Male



Electrical:



  • Operating Frequency Band 650 – 2700 MHz

  • 3rd Order IMD -116.0 dBm | -159.0 dBc

  • 3rd Order IMD Test Method Two +43 dBm carriers

  • Average Power 500 W @ 883 MHz and 250 W @ 1940 MHz (Combined)

  • Connector Impedance 50 ohm dc

  • Test Voltage 48 V

  • Injector Port to Antenna Isolation, minimum -70 dB

  • Peak Power, maximum 13.00 kW

  • Insertion Loss, typical 0.10 dB





(ADCB-DFDM-DB)

SKU ADCB-DFDM-DB
Shipping Width 0.050m
Shipping Height 0.050m
