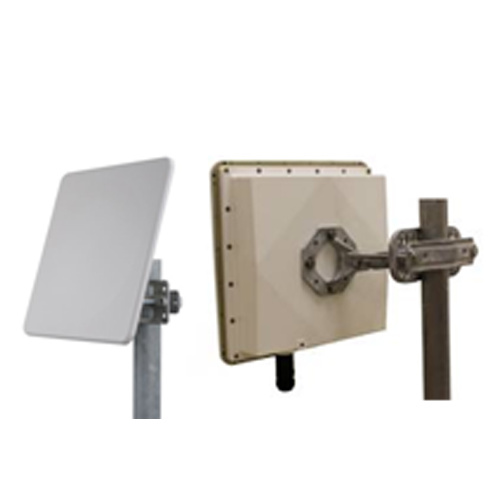

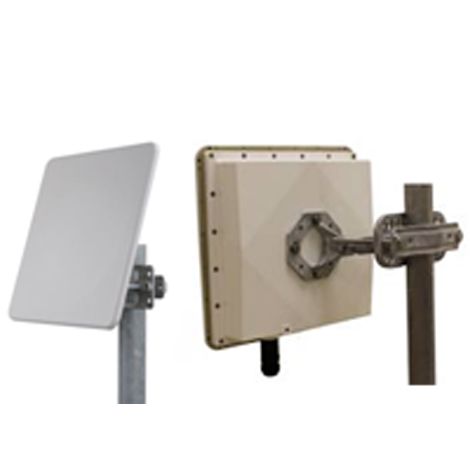

MARS 5.8GHz Dual Polarisation/Dual Slant Subscriber Antenna 23dBi



Key Features



  • Dual slant if mounted diagonally

  • Efficient and stable performance

  • High gain/size ratio

  • Light weight and durable construction

  • UV protected radome made of polycarbonate suitable for harsh weather installations.



Usage



  • Easy mounting allowing Az/El adjustment and 45° turn installation Mars 5GHz 2X2 MIMO Antenna designed to provide full coverage for the 5GHz frequency band

  • The antennas 23dBi gain makes for an ideal mid-range subscriber antenna in PtMP systems

  • We integrate this antenna with Ubiquiti Rocket AC Gen2 radios to provide a durable high performance drop in replacement for the PowerBeam M5.



Specifications / Frequency


Network Compatibility
Yes/No
Gain
802.11 a/n/ac WiFi (5800MHz)
compatible
23 dBi

LIPD Class 2000 Fixed Services (5800MHz)

compatible

23 dBi



Electrical Specifications



  • Frequency Range: 4.9-6.1GHz

  • VSWR: < 1.7:1

  • Beamwidth: 10°

  • Polarisation: Dual, vertical and horizontal

  • Cross Polarisation: >20 dB

  • Input power: 10 Watts

  • Input Impedance: 50Ω

  • Lightning Protection: DC Grounded

  • Port to Port Isolation: >30 dB



Mechanical/Environmental Specifications



  • Weight: 400g

  • Dimensions: 305 x 305 x 15 mm

  • Connector: 2 x N-Type, Female

  • Back Plane: Aluminum; protected through chemical passivation

  • Radome: UV Protected Polycarbonate

  • Operating Temperature Range: -40°C to +65°C

  • Wind Load: 200 Km/h (Survival)

  • Water Proofing: IP-67



Read More





(MA-WA56-DP23)

SKU MA-WA56-DP23
Brand Mars Antennas
Shipping Weight 2.0000kg
Shipping Width 0.350m
Shipping Height 0.030m
Shipping Length 0.350m
Shipping Cubic 0.003675000m3
