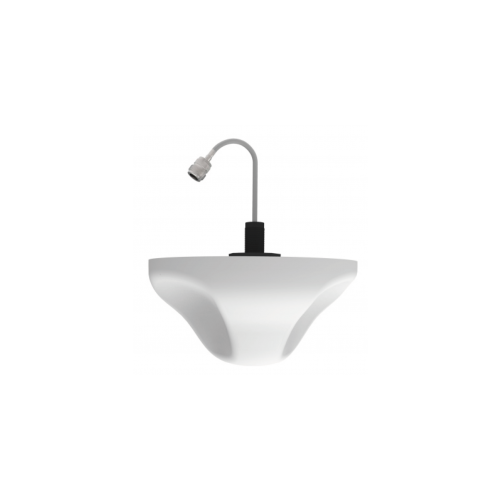

RFI Low PIM DAS Omnidirectional Ceiling Antenna



Key Features



  • Single Port for Cel-Fi GO amplifier

  • Full 700 to 2700MHz band coverage

  • Single 300mm tail with N Female or 4.3-10 Female Connector



Usage



  • Ideal ceiling mounted drop antenna for multi-storey or multiple room coverage

  • The DAS6960-SOC153 antenna is a high performance, PIM rated multiband omni-directional ceiling mount antenna, covering 698-960MHz & 1710-6000Mhz.

  • The multi-band design eliminated the need to purchase different antennas for each frequency and is ideal for all fixed in-building coverage applications.



Specifications / Frequency

Electrical Specifications

  • Frequency Range: 698-960MHz / 1710-2700MHz / 3500-3600MHz / 5200-6000MHz

  • Max Gain: 2.0dBi / 4.0dBi / 4.0dBi / 6.0dBi

  • Input Impedance: 50 Ω

  • VSWR: <1.7:1 / <1.7:1 / <1.6:1 / <1.7:1

  • Vertical Beamwidth: 100° / 55° / 45° / 30°

  • Horizontal Beamwidth: 360°



Mechanical/Environmental Specifications

  • Construction: PC + ABS

  • Cable: 300mm

  • Input Connector: N Female

  • Weight: 0.25 kg

  • Dimensions: 89 x 184mm (H x Ø)

  • Mounting: Ceiling



Read More



(DAS6960-SOC153)

SKU DAS6960-SOC153
Brand RFI
Shipping Weight 0.0450kg
Shipping Width 0.180m
Shipping Height 0.160m
Shipping Length 0.190m
Shipping Cubic 0.005472000m3
