RFI CSH900-GPSWIFI Low Profile Mobile, WiFi & GPS Antenna

Key Features

• Polycarbonate radome is ideal for outdoor use

• 800-2500MHz Mobile + WiFi + GPS bands

• Standard 14mm stud mount

• 3x 3m RG174 cables with 2x FME Female (WiFi, Cell) + 1x SMA Male (GPS).

Usage

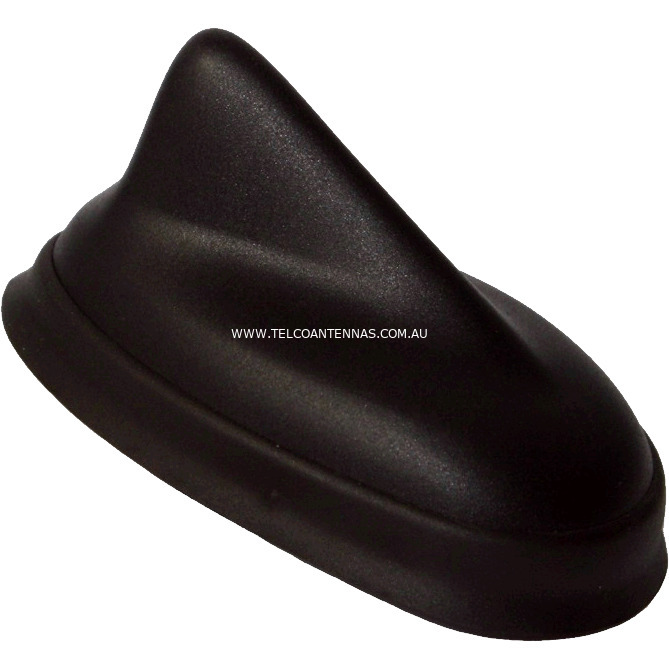

• The CSH900-GPSWIFI is a roof mounted shark fin style antenna

• This antenna is suited to applications that require multiple simultaneous operations (ie mobile broadband + WiFi + GPS) while still offering solid performance

• Being a low profile, ground independent omni directional antenna, its sturdy design and low visual impact make it perfect for fixed and mobile data applications

• Covering all bands 850MHz, 900MHz, GPS, 1800MHz,1900MHz, 2100MHz, ISM 2.4-2.5GHz bands, this one antenna can be used for any purpose

• The shark fin low profile multiband antenna offers great performance for cellular, GPS and WIFI. Suited for M2M and monitoring applications and telematics, this antenna has 3 x 3m RG174 cable fitted with one FME Jack for Cellular, a SMA plug for GPS and a FME Jack for WIFI.

Specifications / Frequency

Network Compatibility	Yes/No	Gain
Telstra Next-G™ (850MHz)		2.1dBi
New Vodafone Network (850MHz)* *Please check Vodafone Coverage Map		2.1dBi
Optus Regional 3G (900MHz)* *Please check Optus Coverage Map.		2.1dBi
Vodafone Regional 3G (900MHz)* *Please check Vodafone Coverage Map.		2.1dBi
All carriers - calls & text (900MHz)		2.1dBi
Telstra 4G (1800MHz)		2.1dBi
Optus 4G (1800MHz)		2.1dBi
All carriers - 3G internet (2100MHz)		2.1dBi
GPS (1227MHz / 1575MHz)		26dB (ACTIVE)
802.11 b/g/n WiFi (2400MHz)		2.1dBi

Electrical Specifications

• Frequency Range: 824-960MHz / 1227MHz / 1575MHz / 1710-2170MHz / 2400-2500MHz

• Input Impedance: 50Ω

• VSWR: Cell & WiFi = <2.5:1 / GPS = <2.1:1

• Radiation: Omnidirectional

• Maximum Power: 10Watts

Mechanical/Environmental Specifications

• Construction: Black polycarbonate radome

• Cable: 3 x 3m RG174

• Connector: Cell = FME Female / WiFi = FME Female / GPS = SMA Male

• Dimensions: 98mm (L) 58mm (W) 65mm (H)

Connection

• This antenna has 3x 3m cables, the cellular and WiFi antennas both terminate with FME Female, and the GPS antenna terminates with SMA Male

• All cables are tagged for easy identification.

1x SMA Male Connector - GPS [pictured]
