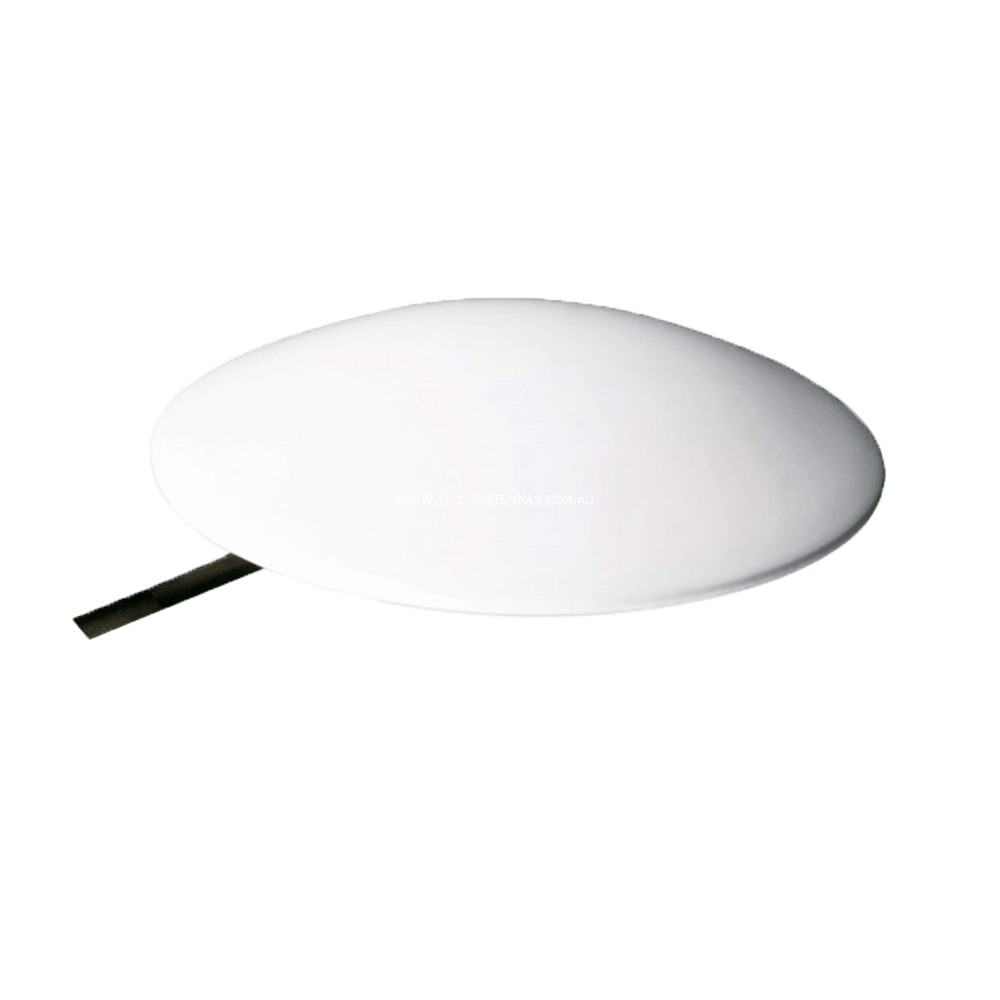

Taoglas Roadmarker RG.02 3G+4G Cellular Adhesive Antenna



Key Features



  • Heavy duty trafficable construction

  • Quad-Band 3G/4G operation

  • 698-960MHz + 1710-2690MHz Bands

  • Low profile 17.6mm height

  • UV and vandal proof IP67 housing

  • 1.5m cable with SMA Male cable, fully customisable.



Usage



  • The Taoglas Roadmarker has been potted with the epoxy that is traditionally used to secure the Roadmarker to the ground

  • In order to maintain the mechanical integrity, there are no air gaps inside the new type approved Roadmarker with antenna

  • It is presumed that the standard black epoxy will also be used to install the Roadmarker in its final resting place on the ground

  • The CAB.826 cable assembly is included so the antenna cable can be easily disconnected if desired - this is useful when the antenna is mounted on a manhole cover. If the manhole cover is lifted, the cable will split at the push-pull connectors, preventing damage to the cable.



Network Compatibility
Yes/No
Gain
Telstra Next-G™ (850MHz)
compatible
2.5dBi
Vodafone 4G+ (850MHz)* *Please check Vodafone Coverage Map
compatible
2.5dBi
Optus Regional 3G (900MHz)
compatible
2.5dBi
Vodafone Regional 3G (900MHz)
compatible
2.5dBi
LPWAN/ISM (915MHz)
compatible
2.5dBi
Telstra/Optus/Voda 4G (1800MHz)
compatible
1.0dBi
LTE Bands 2, 25, 35-37, 39 (1900MHz)
compatible
0.6dBi



Specifications / Frequency



Electrical Specifications



  • Frequency Range: 698-960MHz + 1710-2690MHz

  • Input Impedance: 50Ω

  • VSWR: <3.0:1

  • Radiation: Omnidirectional



Mechanical/Environmental Specifications



  • Construction: UV Resistant PP

  • Cable: WY-100 Coaxial Cable

  • Connector: Fully Customizable

  • Thermal Shock: 100 cycles -40°C to +85°C

  • Dimensions: 17.6 x 101.4mm (Height x Diameter)



Read More





taoglas logo

(RG.02.01.3000W)

SKU RG.02.01.3000W
Brand Taoglas
Shipping Weight 0.0450kg
Shipping Width 0.120m
Shipping Height 0.060m
Shipping Length 0.120m
Shipping Cubic 0.000864000m3
