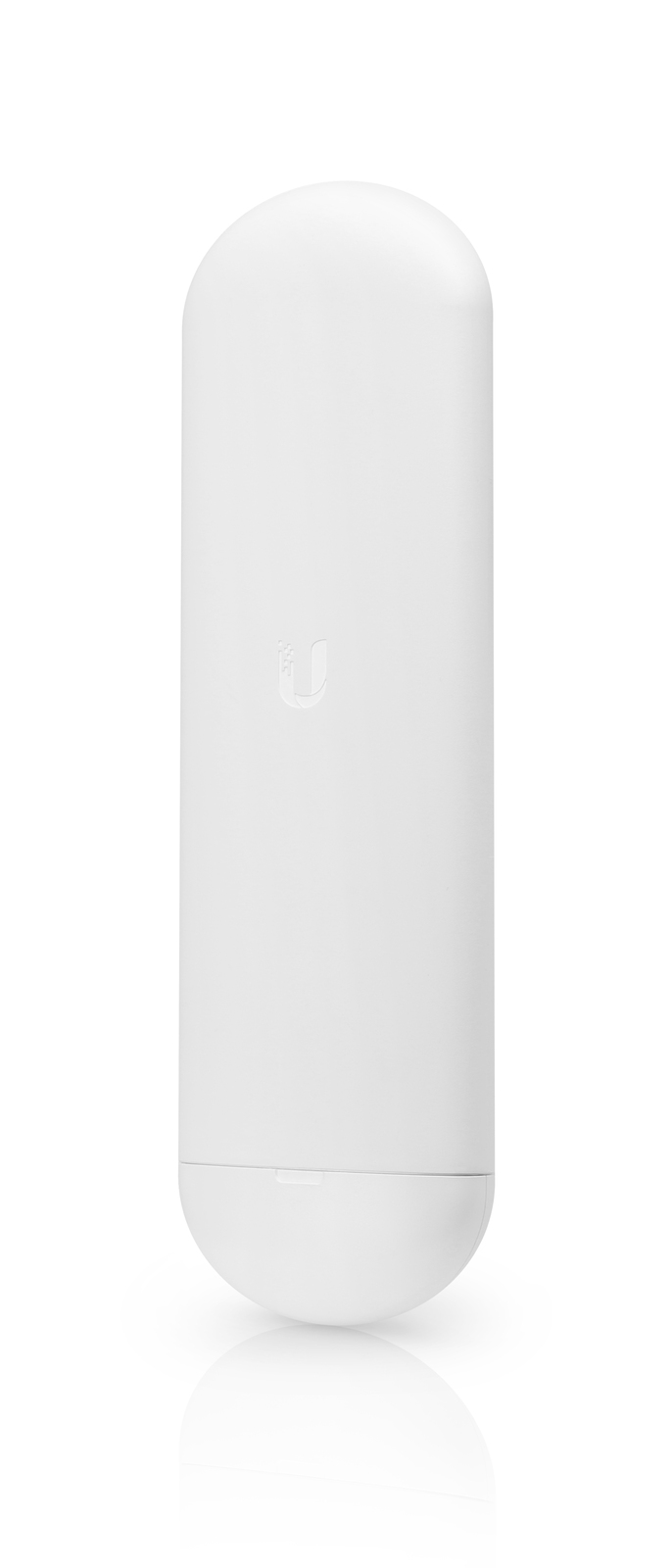

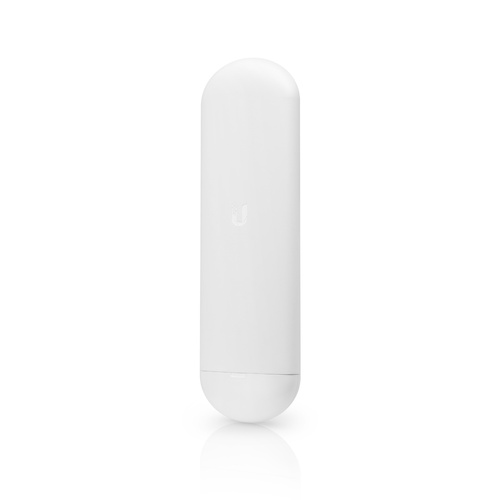

Ubiquiti NanoStation NS5 (5.8GHz) Wireless Bridge & WiFi AP



Key Features



  • Connect two remote locations on the one network

  • Share Internet connection between buildings, remote sites, etc.

  • AirMax AC compatible, up to 450Mbps throughput

  • Integrated AirOS web software for controlling power, bridge/AP mode, etc.

  • Two units required for wireless bridge

  • Includes POE injector and 240V AC adaptor.



High Speed Point-to-Point Networking



  • Forget Ethernet cable, the Ubiquiti NanoStation is ideal for bridging networks or sharing broadband across a distance

  • To install, place the units at either end of the network and connect both to Ethernet cables - for example, the first unit into your modem at location one, and second into an Ethernet switch or WiFi access point at the other location

  • Up to 6 remote buildings can be linked over one connection with the NanoBridge supporting AP-WDS.


ubiquiti nanostation m5 installation diagram setup instructions


  • This is a transparent data-link layer bridge, not a routed bridge - this means that you are creating a virtual ethernet cable between the two facilities, making network setup incredibly simple - no routing configuration, all protocols (DHCP, DNS, etc.) just work

  • Management of the Ubquiti device couldn't be easier with SSH and SNMP protocol support, as well as a very intuitive HTTP interface.



Ready to Install



  • This unit has all networking hardware integrated and is completely weatherproof for permanent installation in even the toughest environments

  • Signal strength indicators allow for quick and easy alignment

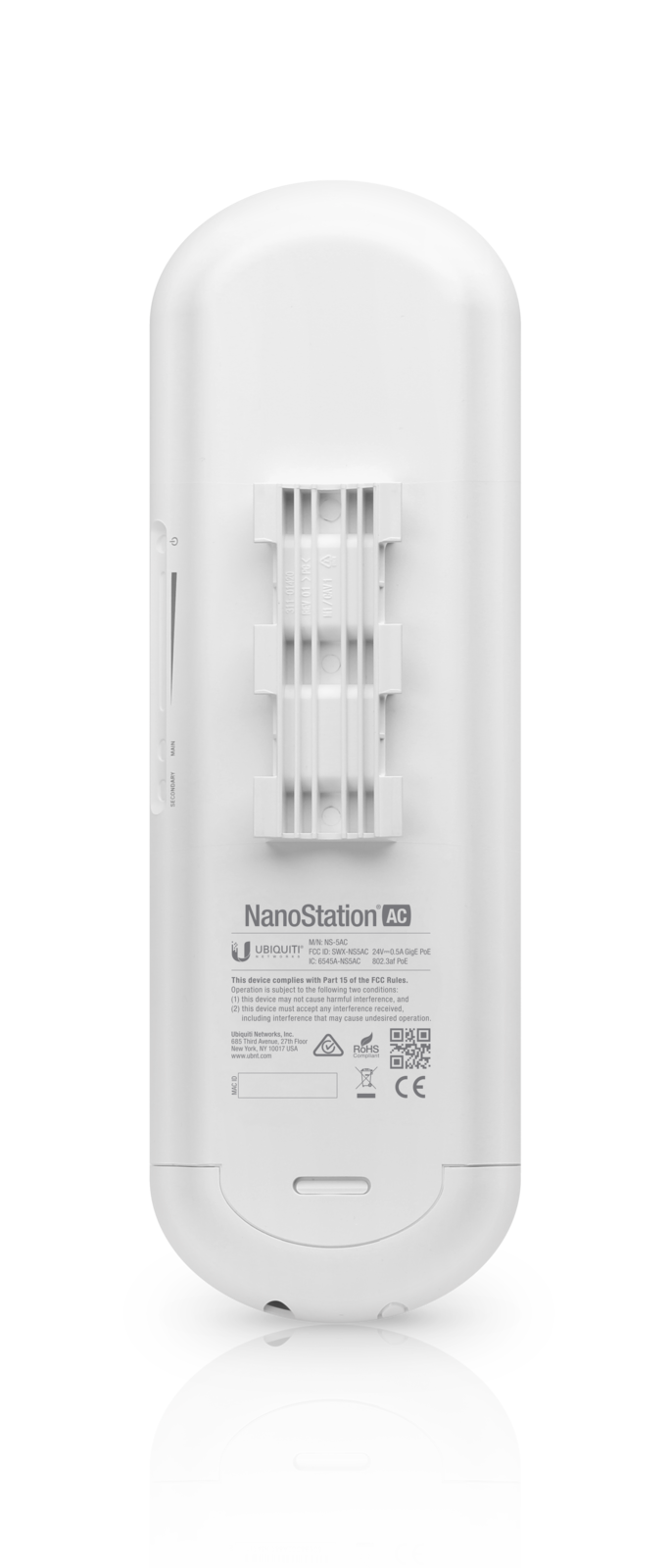

  • For best performance the unit should be roof mounted, high and clear of obstructions, via its integrated pole mounting bracket

  • The units are powered via Power over Ethernet (PoE) - simply plug one end of the Ethernet cable into the NanoStation, and the other into the PoE Injector (which is plugged into AC power)

  • This allows one cable to power the unit as well as carry network traffic

  • We recommend using Cat6 Outdoor UV Shielded Cable with this unit.



A heads up!



  • Surge protection should be used for all outdoor installations. Ubiquiti recommend that you use two Ethernet Surge Protectors - model ETH-SP - place one near the NanoStation and the other at the entry point to the building. The ETH-SP will absorb power surges and safely discharge them into the ground.



Need to order bulk? Please contact us for a more accurate shipping quote.



Read more




Setup Guides (Click Image)



long range wifi client using ubiquiti nano as antennawide area wifi access point setup ubiquiti





direct point to point wireless bridge ubiquiti nanostation m2 m5point to multipoint wireless bridge ubiquiti nano station access point WDS





point to point link with wifi access ubiquiti airos











sharing internet connection between houses with ubiquiti nanostation m5 rural farm







(NS5AC)

SKU NS5AC
Brand Ubiquiti
Shipping Weight 0.0450kg
Shipping Width 0.200m
Shipping Height 0.200m
Shipping Length 0.200m
Shipping Cubic 0.008000000m3
