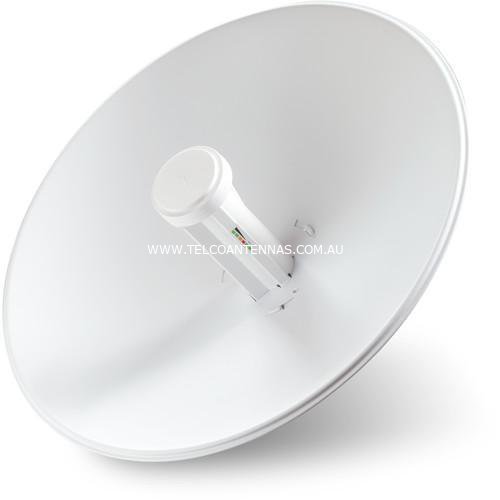

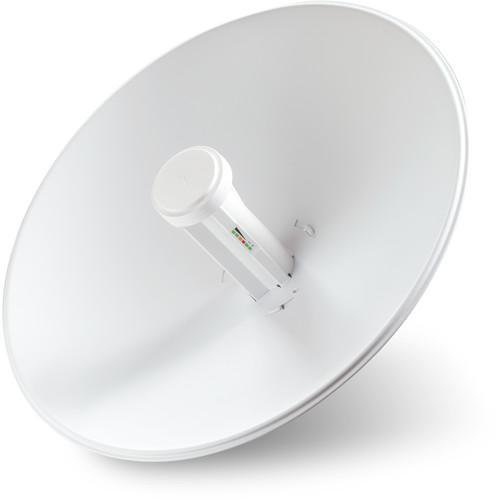

Ubiquiti PowerBeam M2 Wireless Bridge or WiFi AP



Key Features



  • Connect two remote locations on the one network

  • Share Internet connection between buildings, remote sites, etc.

  • Indistinguishable from Ethernet cable

  • 200mW output power, 2x2 MIMO operation, 150Mbps

  • 18dBi antenna gain

  • 6W max power consumption

  • Includes 24VDC Passive POE injector and 240V AC adaptor

  • Two units required for wireless bridge.



High Speed Network Sharing



  • The Ubiquiti PowerBeam is the ideal all-in-one solution for bridging networks or sharing broadband across a very long distance (+20km)

  • To install, place the units at either end of the network and connect both to Ethernet cables - connect the first unit into your modem/router at location one, and the second into an Ethernet switch or WiFi access point at the second location

  • This equipment is ideal for sharing an Internet connection over long distances, perfect for farms and agricultural facilities.

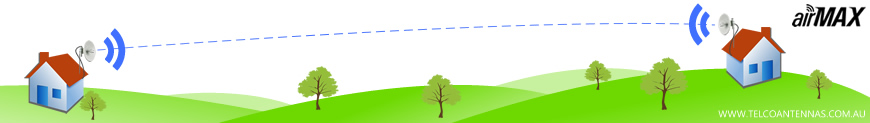

ubiquiti nanobeam m2 setup instructions installation diagram




  • This is a transparent data-link layer bridge, not a routed bridge - this means that you are creating a virtual ethernet cable between the two facilities, making network setup incredibly simple - no routing configuration, all protocols (DHCP, DNS, etc) just work

  • Management of the Ubiquiti device couldn't be easier with SSH and SNMP protocol support, as well as a very intuitive HTTP interface.



Ready to Install



  • This unit has all networking hardware integrated and is completely weatherproof for permanent installation in even the toughest environments

  • Signal strength indicators allow for quick and easy alignment

  • For best performance the unit should be roof mounted, high and clear of obstructions, via its integrated pole mounting bracket

  • The units are powered via Power over Ethernet (PoE) - simply plug one end of the Ethernet cable into the PowerBeam M2, and the other into the PoE Injector (which is plugged into AC power)

  • This allows one cable to both power the unit and also carry network traffic

  • We recommend using Cat6 Outdoor UV Shielded Cable with this unit.



A heads Up!



  • Surge protection should be used for all outdoor installations. Ubiquiti recommend that you use two Ethernet Surge Protectors - model ETH‑SP, one near the NanoStation and the other at the entry point to the building. The ETH‑SP will absorb power surges and safely discharge them into the ground.



Need to order in bulk? Contact our sales team for an accurate quote.



Read More





Setup Guides (click on image)

long range wifi client using ubiquiti nano as antennawide area wifi access point setup ubiquiti

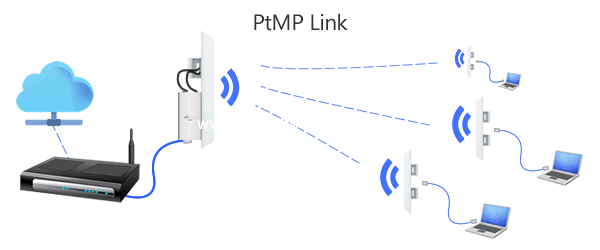

direct point to point wireless bridge ubiquiti nanostation m2 m5point to multipoint wireless bridge ubiquiti nano station access point WDS





point to point link with wifi access ubiquiti airos





































nanobeam m2 installation





(PBE-2AC-400)

SKU PBE-2AC-400
Brand Ubiquiti
Shipping Weight 0.0450kg
Shipping Width 0.350m
Shipping Height 0.150m
Shipping Length 0.450m
Shipping Cubic 0.023625000m3
