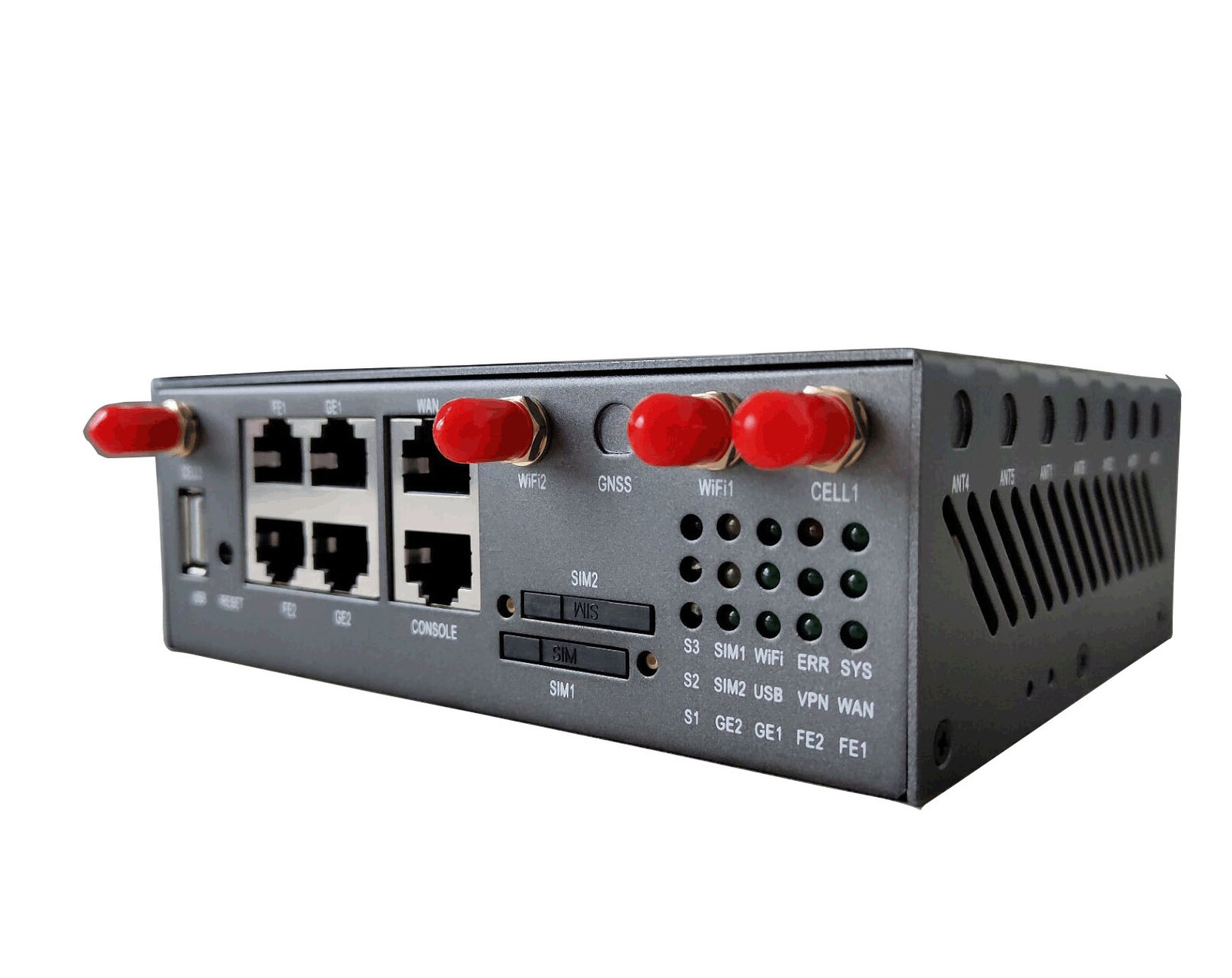

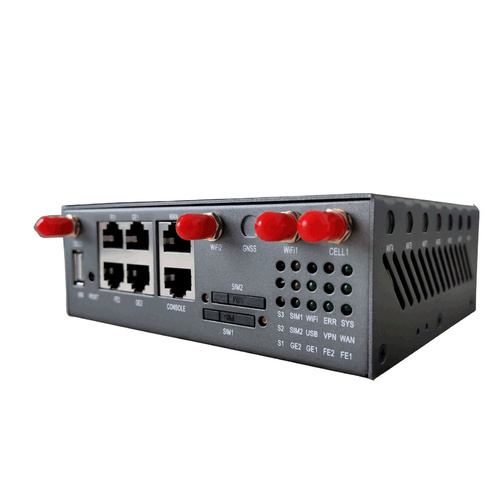

Comset 5G / 4G / 3G WiFi Router with Dual SIM (CM950W)



Key Features

  • Built-in 5G NR Sub 6 GHz industrial cellular module supporting both SA and NSA modes
  • Supports 4G LTE-A CAT 22
  • Worldwide 5G and 4G LTE-A coverage
  • MIMO Technology (4x4, DL)
  • Load balancing between 5G and fixed WAN ADSL/NBN
  • SIM-based auto-carrier selection
  • TR-069, Web management, SMS control, SSH/Telnet/CLI, SFTP, SNMP
  • Network Diagnostic Tools (Ping, Traceroute and NSLookup)
  • Advanced security, VPN, and stateful firewall to protect sensitive data
  • Robust Metal Case
  • Desktop and Wall-mount



Usage



The Comset CM950W is a New Generation 5G Industrial Router. Supporting both 5G SA and 5G NSA modes, the CM950W delivers lightning internet speeds over the 5G networks.  With two Gigabit Ethernet ports, two Fast Ethernet ports and dual band 2.4GHz and 5GHz WiFi, the CM950W provides a powerful and rapidly deployable internet solution to commercial customers and small to medium businesses.



The Comset CM950W is an Innovative Router powered by a Dual Core 880MHz CPU. It features dual SIM card slots for backup redundancy, 4 x LAN ports for fast wired connections, 1 Gigabit WAN/LAN port for automatic failover between fixed NBN/ADSL and mobile 4G or 5G, as well as a GPIO with four digital input/output ports.  Other features include VPN IPSEC, PPTP (Server and Client), L2TP and OpenVPN to establish a secure connection over the 4G/5G network.



The Comset CM950W is a Global Router, supporting frequencies across all major carriers worldwide. The innovative design, easy integration and rich built-in features make the CM950W the router of choice for a wide range of business and commercial applications, including SOHO, SMB, industrial automation, building automation, security, surveillance, transportation, health, mining and environmental monitoring.



Specifications / Frequency

Main

WAN

  • 5G/4G/3G Cellular Modem
    WiFi as WAN
    Failover and Load Balancing
    Advanced modem failure check
  • IP Pass-through
  • WAN ports support Cell/Static IP/DHCP/PPPoE (on demand, keep alive, schedule, manual, standby)

LAN

  • DHCP Server, Client, Relay
    DNS and DNS Proxy
    DDNS
    UPnP
    DMZ
    Multicast/Multicast Proxy
    QoS (DSCP and Priority Queuing)
    MAC Address Filtering
    VLAN 802.1Q

WiFi

  • Dual-Band 2x2 MIMO Technology, up to 867Mbps
    802.11 a/b/g/n/ac 2.4 GHz and 5 GHz
    WPA2 Enterprise (WiFi)
    Hotspot/Captive Portal
    SSID-based Priority

VPN AND ROUTING

  • IPsec Tunnel, PPTP, L2TP, GRE Tunnel, OpenVPN, OSPF/BGP/RIP, Virtual Server/Port Forwarding, IPv6, VRRP.

MANAGEMENT

  • Network Management Software (NMS)
  • Web GUI, API, CLI/SSH/Telnet, SFTP
    Data Usage Alerts (router and per client)
    Advanced Troubleshooting
    Device Alerts
    SNMP
    SMS control
    TR-069

SECURITY

  • RADIUS and TACACS+ support
    802.1x authentication for Ethernet
    Certificate support
    ALGs
    MAC Address Filtering
    Advanced Security Mode (local user management only)
    Per-Client Web Filtering
    IP Filtering
    Content Filtering (basic)
    Website Filtering
    Zone-Based Object Firewall with host address (IP or FQDN), port, and mac address
    NAT, SPI, port blocking, service filtering (FTP, SFTP, SMTP, HTTP, RPL, SNMP, DNS, ICMP, NNTP, POP3, SSH), protocol filtering, WAN ping (allow/ignore)

OPTIMIZED IP COMMUNICATIONS

  • Automated WAN Failover
    WAN Affinity and QoS allow prioritization of VoIP services
    Advanced VPN connectivity options to HQ
    SIP ALG and NAT to allow VoIP and UC communications to traverse firewall
    MAC Address Filtering
    802.1p/q for LAN QoS segmentation and treatment of VoIP on LAN
    Private Network support (wired and 4G/5G WAN)

Firmware update

  • supports firmware update locally, remotely (LAN, WiFi and OTA WAN)

DI/DO (Digital Input and Output)

  • 4 x Digital Input ports for alarm notification via email or SMS. These can also be used as Digital Output ports to control electrical devices via SMS or GUI (a DIO board is required)

Other

  • Cellular and WiFi MIMO
    Syslog (local and remote)
    DDNS
    DNS proxy
    Optimized EMC design
    Real-time clock (NTP, update with defined hours)
    WAN/LAN/Memory statistics
  • Features

Redundancy and Load Balancing

  • Failover between NBN/ADSL and 5G Modem
    Auto-dial feature, keep alive link
    LCP, ICMP check
    Built-in watch dog
    Three-way redundancy: Cellular (3G/4G/5G), RJ45 WAN (xDSL, DHCP, Fixed IP), WiFi client
    Load balancing

Intelligent Routing

  • UPnP, DMZ, virtual server/port forwarding, routing rules, NAT-less routing, wired or wireless WAN-to-LAN IP passthrough, route management, per-interface routing, content filtering, IP filtering, website filtering, per-client Web filtering, local DHCP server, DHCP client, DHCP relay, DNS, DNS proxy, Split DNS; ALGs: PPTP, SIP, TFTP, FTP, IRC; MAC address filtering, Dynamic DNS, LAN/WAN affinity, STP, enterprise routing protocols: BGP/OSPF/RIP, multicast proxy

Management

  • web-based GUI (local management), optional RADIUS or TACACS+ username/password; remote WAN web-based management w/ access control (HTTP, HTTPS); SNMP v1, v2c, & v3; CLI over SSH, SSH to serial, SSH to telnet, SFTP; API; one-button firmware upgrade; modem configuration, update, and management; modem data usage w/ alerts, per-client data usage; custom AT scripting to modems; SMS; TR-069

VPN

  • IPsec – Tunnel, NAT-T, and transport modes; Hash (MD5, SHA128, SHA256, SHA384, SHA512), Cipher (AES, 3DES, DES);
    GRE tunneling;
    PPTP support;
    L2TP, L2TP over IPSec support;
    VPN pass-through;
    OpenVPN;
    Certificate support;
    multiple networks supported in a single tunnel, site-to-site dynamic VPN with NHRP; VTI Tunnel support;

SMS, SMS Control and Alarm

  • Receive and Send SMS;
    WAN Cell APN configuration via SMS;
    SMS Control and Alarm. SMS or Call to control router to be online, offline, reboot, signal and status monitor (check out the Comset SMS App)
    SMS text send/receive.
  • Specifications
  • Main

Hardware

  • CPU: 880Mhz dual core;
    RAM: 1Gb DDR3, option for up to 4Gb DDR3;
    Flash: 128Mb, option for up to 8Gbit

WAN

  • Integrated 5G modem (with 4G and 3G failover);
    10/100/1000Mbps Gigabit Ethernet port – NBN/ADSL;
    WiFi as WAN; MIMO “N” 2.4 GHz; 802.11 a/b/g/n/ac

LAN/WiFi

  • Dual-band WiFi; 802.11 a/b/g/n/ac;
    Two Gigabit and two Fast Ethernet LAN ports.

Ports

  • Power (Passive POE, 2 Pins Terminal Block for wire connection)
    5 x Ethernet LAN/WAN
    4 x cellular (or 3 x cellular and 1 x GPS) antenna connectors SMA
    2 x WiFi antenna connectors SMA
    1 x Serial connector RS232 (3 Pins Terminal Block)
    4 x Digital I/O ports (Terminal Block)
    USB3.0 port
    Console Port (Terminal Block)

Power

  • DC input steady state voltage range: 5-40 VDC (requires inline fuse for vehicle installations);
    For 9–24 VDC installations, use a 3 A fuse;
    For > 24 VDC installations, use a 2.5 A fuse;
    Reverse polarity and transient voltage protection per ISO 7637-2
    Ignition sensing (automatic ON and time-delay OFF);
    Power consumption:
    Idle: typical=100mA@12VDC; Maximum=500mA@12VDC;
    Tx/Rx: typical=300mA@12VDC; Maximum=800mA@12VDC;
    12VDC 1.5A adapter included

LEDs

  • SYS, ERR, VPN, WiFi, USB, WAN, LAN x 4, SIM1, SIM2, SIGNAL1, SIGNAL2, SIGNAL3

UIM/SIM Card Slot

  • Supports 1.8V/3V UIM/SIM cards, two sim card slots

Other

  • Reset button, console port

Size

  • 132mm x 112mm x 45mm

Weight

  • 410g (not including the antennas)
    550g (including the antennas)
    750g (including all accessories)

Temperature

  • −35 °C to 75 °C operating;
     −40 °C to 85 °C storage

Humidity (non-condensing)

  • 5% to 95% operating;
    5% to 95% storage

Case

  • Alloy; Black color
  • Cellular

Compatible Mobile Networks

  • 5G NR
  • 4G LTE (FDD/TDD)
  • 3G UMTS WCDMA (HSUPA/HSDPA/HSPA/HSPA+/DC-HSPA+)

Cellular Frequency

  • 5G NR
  • n1/n2/n3/n5/n7/n8/n12/n20/n28/n38/n40/n41/n48/n66/
  • n71/n77/n78/n79



  • 4G LTE FDD
  • B1/B2/B3/B4/B5/B7/B8/B9/B12/B13/B14/B17/B18/B19/
  • B20/B25/B26/B28/B29/B30/B32/B66/B71



  • 4G LTE TDD
  • B34/B38/39/B40/B41/B42/B48
  • 4x4 MIMO DL
  • 3G WCDMA
  • B1/B2/B3/B4/B5/B6/B8/B19

Bandwidth

  •
  • 5G SA (Stand Alone)
  • § Downlink 2.1Gbps
  • § Uplink 900Mbps



  • 5G NSA (Non-Stand Alone)
  • § Downlink 2.5Gbps
  • § Uplink 650Mbps



  • 4G LTE
  • § Downlink 1.0Gbps
  • § Uplink 200Mbps
  • WCDMA
  • § Downlink 42Mbps
  • § Uplink 5.76Mbps
  • WiFi (WLAN)

Wi-Fi

  • 802.11a/b/g/n/ac;
    Can be used as AP or Client.
  • Frequency Range:
    2.412 ~ 2.472GHz
    5.150 ~ 5.825 GHz
  • Other

Warranty

  • 1 Year Warranty

Package Contents

  • CM950W 5G Router
  • Ethernet and Serial Cables
  • Power Adapter
  • 4 x Cellular Antennas, 2 x WiFi Antennas

Regulatory Compliance

  • RCM*, CE, RoHS
  • *TBA
