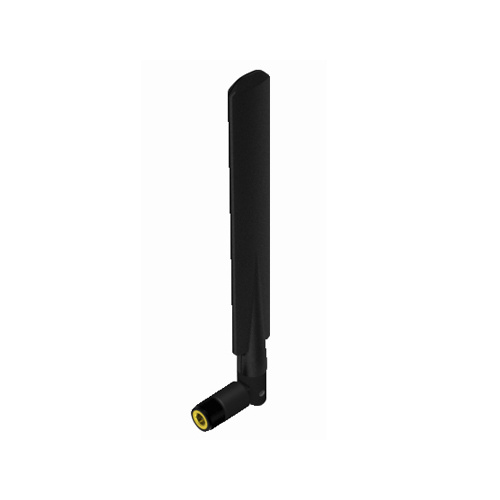

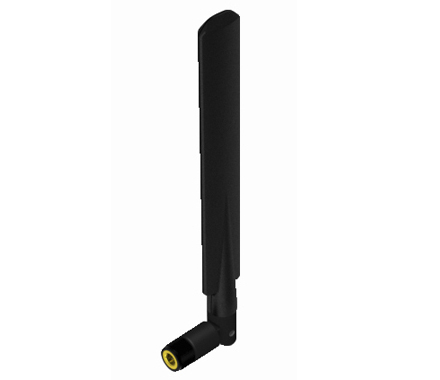

Panorama 3G, 4G & 5G Hinged Paddle Antenna - 698-3800MHz



Key Features



  • Hinged right angle with integrated SMA male connector

  • Wideband performance across standard cellular bands

  • High quality ABS construction.



Usage



  • The PWB-BC3G-38-RSMAP antenna is a ground plane independent antenna covering global 2G/3G /4G and 3.8GHz 5G frequecies from 698- 960/1710-2170/2396-2700 and 3400-3800MHz.

  • Designed for terminals and routers the PWB-BC3G-38-RSMAP offers an articulated SMA connector for flexible positioning and a sleek profile for low visual impact.

  • For applications requiring high electrical efficiency - please see Taoglas TG.30 Apex



Specifications / Frequency



Network Compatibility
Yes/No
Gain
Telstra 4GX (700MHz)
compatible
3 dBi
Optus 4G+ (700MHz)
compatible
3 dBi
LTE Bands 12-14, 17, 28, 29, 44 (700MHz)
compatible
3 dBi
Telstra Next-G™ (850MHz)
compatible
3 dBi
Vodafone 4G+ (850MHz)
compatible
3 dBi
Optus Regional 3G (900MHz)
compatible
3 dBi
Vodafone Regional 3G (900MHz)
compatible
3 dBi
LPWAN/ISM (915MHz)
compatible
3 dBi
Telstra/Optus/Voda 4G (1800MHz)
compatible
4 dBi
LTE Bands 2, 25, 35-37, 39 (1900MHz)
compatible
4 dBi
LTE Bands 1, 33, 34 (2100MHz)
compatible
4 dBi
All Carriers - Urban/Metro 3G (2100MHz)
compatible
4 dBi
Optus/Vivid Wireless 4G (2300 MHz)
compatible
4 dBi
LTE Bands 30, 40 (2300 MHz)
compatible
4 dBi
802.11 b/g/n/ac WiFi (2400 MHz)
compatible
4 dBi
LTE Band 41 (2500 MHz)
compatible
4 dBi
LTE Bands 7, 38 (2600 MHz)
compatible
4 dBi
Telstra 4GX (2600 MHz)
compatible
4 dBi
All Carriers - 5G (3500MHz) compatible 5 dBi



Electrical Specifications

  • Frequency Range: 698-960MHz / 1710-2170MHz / 2396-2700MHz / 3400-3800MHz

  • Input Impedance: 50Ω

  • VSWR: <3:1

  • Polarisation: Vertical

  • Radiation Pattern: Omnidirectional

  • Maximum Power: 10W



 Mechanical/Environmental Specifications

  • Construction: ASA

  • Connector: Integrated SMA Male

  • Temperature: -40°C +80°C

  • Weight: 30g

  • Dimensions: 74mm x 7mm x 163mm (L x W x H)





(PWB-BC3G-38-RSMAP)

SKU PWB-BC3G-38-RSMAP
Brand Panorama
Shipping Weight 0.0190kg
Shipping Width 0.050m
Shipping Height 0.050m
Shipping Length 0.170m
Shipping Cubic 0.000425000m3
