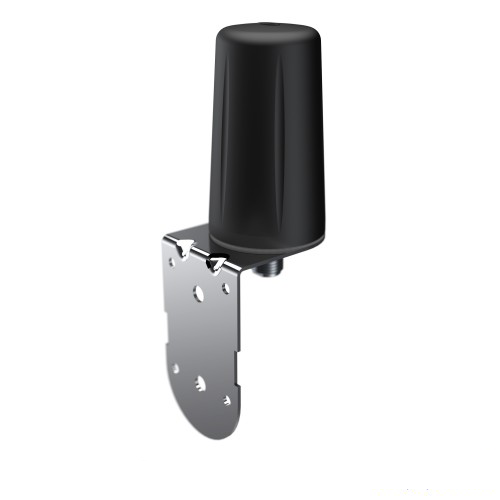

Panorama Low Profile Bracket Mounted Antenna 2G/3G/4G/5G



Key Features

  • Ideal for outdoor use

  • Wideband 617-960/1710-6000MHz

  • Wall, Mast or Cabinet/Enclosure Mount

  • Integrated low loss cable - 0.5m / 2m / 5m Variants available

  • Ingress protection to IP66



Usage



  • TThe B4BE[E] antenna is a cost effective omni-directional broad band antenna range for 4G/3G/2G and 5G devices. It covers 617-960/1710 6000MHz and is suitable for external or internal installation.

  • The mounting bracket enables simple wall/panel mounting using the supplied screws and wall plugs or mast mounting using a pipe clip or cable ties (not supplied).

  • The omni-directional radiation pattern allows easy placement of the antenna in an elevated position, without requiring directional alignment.

  • The B4BE type is supplied with an integrated ultra-low loss CS29 coaxial cable.

  • This antenna is an ideal solution for IoT use in industrial and domestic environments for cellular modems/routers and Machine to Machine (M2M) wireless connectivity applications.

  • You'll often see this type of antenna utilised for Monitoring / Vending / Transit solutions and a wide range of other M2M applications.



Specifications / Frequency



Network Compatibility
Yes/No
Peak Gain
Telstra 4GX (700MHz)
compatible
2dBi
Optus 4G+ (700MHz)
compatible
2dBi
Telstra Next-G™ (850MHz)
compatible
2dBi
Vodafone 4G+ (850MHz)* *Please check Vodafone Coverage Map
compatible
2dBi
Optus Regional 3G (900MHz)
compatible
2dBi
Vodafone Regional 3G (900MHz)
compatible
2dBi
Telstra/Optus/Voda 4G (1800MHz)
compatible
3.5dBi
All carriers - 4G (2100MHz)
compatible
3.5dBi
802.11 b/g/n WiFi (2400MHz)
compatible
3.5dBi
Telstra Metro 4GX (2600MHz)
compatible
3.5dBi
All Carriers 5G Services (3.5GHz) compatible 5dBi
802.11 ac WiFi (5800MHz)
compatible
7.5dBi



Electrical Specifications



  • Frequency Range: 698-960 MHz / 1710-27000 / 3400-3800 / 4900-6000MHz

  • Input Impedance: 50Ω

  • VSWR: <2.5:1

  • Polarisation: Vertical

  • Radiation: Omnidirectional

  • Maximum Power: 30 Watts



Mechanical/Environmental Specifications



  • Construction: ASA, aluminium, zinc plated steel

  • Radome ASA Material - UL 746C F2, UL 94-HB

  • Cable: CS29 (Double Shielded RG58)

  • Cable Length: 0.5 / 2 / 5m

  • Connector: SMA Male

  • Bulkhead Weight: 0.188 / 0.219 / 0.390kg

  • Mounting: 16 mm Stud Mount (cable egress through stud)

  • Dimensions: 164 mm (H) 48 mm (Diameter)

  • Mounting: Wall or Mast (Bracket Supplied)



Read More

Specification Sheet



(B4BE-6-60)

SKU B4BE-6-60
Brand Panorama
Shipping Weight 0.9000kg
Shipping Width 0.320m
Shipping Height 0.060m
Shipping Length 0.120m
Shipping Cubic 0.002304000m3
