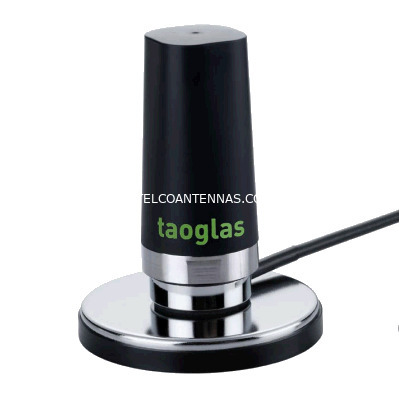

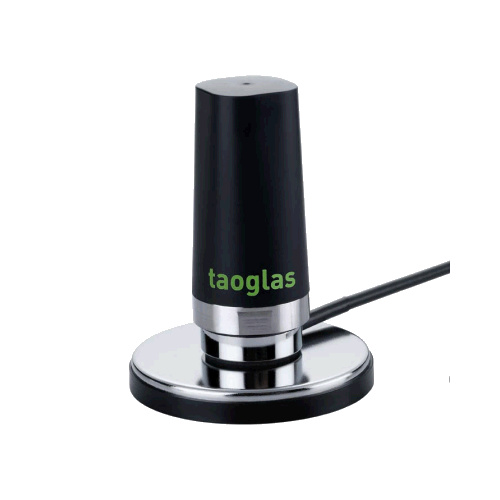

Taoglas Shockwave TL.10 3G+4G+4GX Magnetic Mount Antenna



Key Features



  • Wideband 700-2700MHz + GPS

  • Low profile 85mm height

  • IP69K high pressure waterproof

  • Compact unobtrusive form factor

  • Magnetic Mount with 3m CFD200 SMA Male

  • Ground Plane dependent.



Usage



  • The Shockwave TL.10 NMO series is a new generation of antenna, one part number that is a highly efficient, high gain omni-directional permanent mount antenna designed for all common Cellular, Wi-Fi and ISM bands worldwide

  • It is specially designed for easy and cost effective vandal-proof and waterproof mounting requirements on meters, terminal boxes, and heavy equipment and vehicles

  • During installation, the antenna connects to a NMO Mount connector jutting out from a metal panel

  • A unique indent tab on the base of the antenna means you can solidly lock the antenna on top of its mounting location with a wrench - this prevents its removal by hand, by vandals - and crucially allows for a the installation of a replacement antenna by qualified personnel in the future, without the need to open the device or box it's mounted on

  • A waterproof O-ring around the bottom outer edge prevents water leaking under the antenna

  • The antenna is IP67 waterproof and IP69K resistant against high pressure water jets in commercial cleaning environments, incorporating highest quality stainless steel mounting base ensuring corrosion resistance

  • The Shockwave TL.10 has been tested on a variety of mounting conditions as below specification, with excellent efficiency and gain measured in all typical common mounting conditions

  • Radiation patterns are consistent, and show very good stability in the azimuth on lower and upper bands.



Specifications / Frequency



Network Compatibility
Yes/No
Gain
Telstra 4GX (700MHz)
compatible
2.6dBi
Optus 4G+ (700MHz)
compatible
2.6dBi
Telstra Next-G™ (850MHz)
compatible
2.5dBi
Vodafone 4G+ (850MHz)* *Please check Vodafone Coverage Map
compatible
2.5dBi
Optus Regional 3G (900MHz)
compatible
2.5dBi
Vodafone Regional 3G (900MHz)
compatible
2.5dBi
Telstra/Optus/Voda 4G (1800MHz)
compatible
2.2dBi
All Carriers - Urban/Metro 3G (2100MHz)
compatible
2.2dBi
802.11 b/g/n/ac WiFi (2400MHz)
compatible
3.1dBi
Telstra Metro 4GX (2600MHz)
compatible
3.1dBi



Electrical Specifications



  • Frequency Range: 698-960/1575.42/1710-2700MHz

  • Input Impedance: 50Ω

  • VSWR: See specification sheet

  • Vertical Beamwidth: See specification sheet

  • Radiation: Omnidirectional

  • Maximum Power: 5Watts



Mechanical/Environmental Specifications



  • Construction: Black Polycarbonate + PBT, Stainless Steel Base, Brass NMO Connector

  • Cable: 3m CFD200

  • Connector: SMA Male

  • Thermal Shock: -40°C to +85°C

  • Weight: 0.180kg

  • Dimensions: 85 x 41mm (H x Diameter)

  • Magnet Diameter: 86mm

  • Mounting: Magnetic Mount



Read More





(TL.10.1HH11_CAB.W05)

SKU TL.10.1HH11_CAB.W05
Brand Taoglas
Shipping Weight 0.0450kg
Shipping Width 0.070m
Shipping Height 0.070m
Shipping Length 0.110m
Shipping Cubic 0.000539000m3
