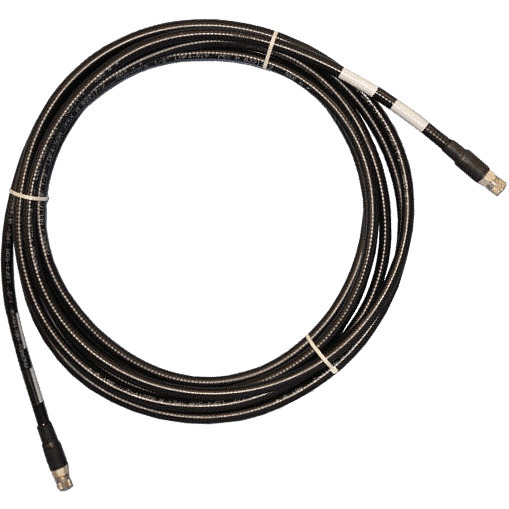

30m Telco TEL450 1/2" Corrugated Coaxial Cable Assembly


Key Features


  • Low density foam dielectric

  • 50Ω impedance

  • Corrugated copper outer conductor

  • CCA inner conductor

  • 2x N Male connectors.

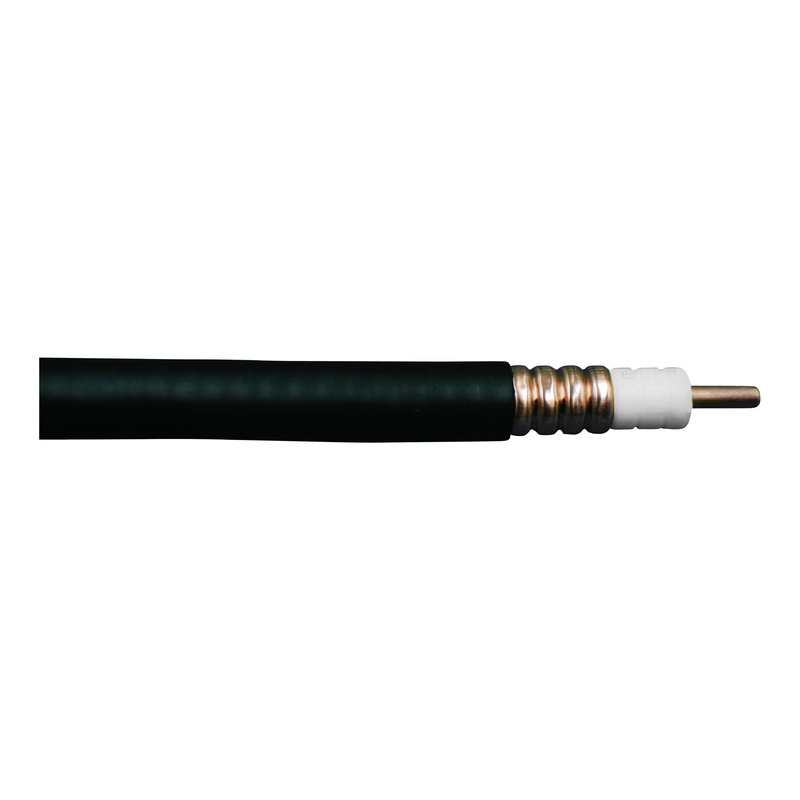

  • Telco Antennas ½” flexible foam dielectric 50Ω coaxial cable is a very high performance feeder cable with Fire Retardant properties


Specifications / Frequency


Electrical Specifications


  • Resistance: 50Ω

  • Capacitance: 76pF/m

  • Signal Loss: 0.067dB/m @ 850MHz, 0.11dB/m @ 2100MHz

  • Frequency Range: DC-8.8GHz

  • Maximum Recommended Length: 100m (cellular bands)

  • Velocity of Propagation: 88%

  • Peak Power: 40kW


Mechanical Specifications


  • Weight/100m: 22kg

  • Minimum Bend Radius: 50.8mm

  • Conductor Material: CCA (4.82mm)

  • Insulating Material: Physical Foam Polyethylene (12.94mm)

  • Outer Shield Material: Corrugated Copper Tube (13.97mm)

  • Outer Jacket Material: Black PE Weather & UV Resistant (15.87mm)


Read More



A heads up!


Special delivery information


over-size item symbol sign


  • This cable assembly is very large and may be transported on a cable spool

  • Please enquire for an accurate shipping quote.





SKU 450A-NN-30
Shipping Weight 6.2000kg
Shipping Width 0.480m
Shipping Height 0.480m
Shipping Length 0.235m
Shipping Cubic 0.054144000m3
