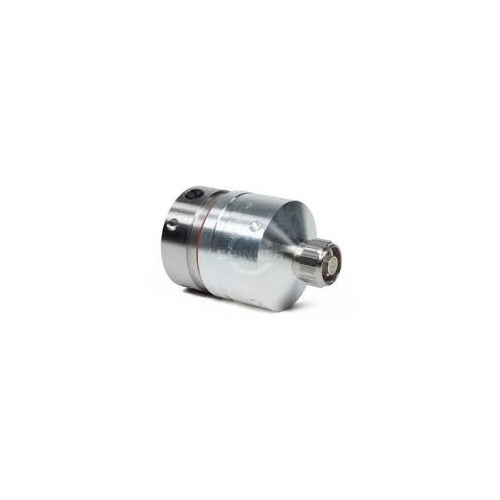

Spinner 7-16 female connector



Key Features



  • LF 1 1/4"-50 CAF O-Ring

  • The renowned SPINNER quality combines excellent VSWR and PIM characteristics with simple fitting.

  • MultiFit[tm] connectors guarantee highest demands on tightness.



Specifications / Frequency



RF characteristics



  • Number of interfaces: 1

  • Interface type: 7-16 female (50 ?) per IEC 61169-4

  • Interface direction: Straight

  • Mounting type: None

  • Frequency range: DC to 3.3 GHz

  • VSWR, max.: 1.02 @ DC to 1.0 GHz 1.04 @ 1.0 to 2.2 GHz 1.06 @ 2.2 to 2.7 GHz 1.08 @ 2.7 to 3.3 GHz



Mechanical characteristics



  • Cable entry type: CAF®

  • Cable compatibility: LF 1 1/4

  • Cable manufacturer types: RFS: LCFS 114-50 A, UCF 114-50 A

  • Inner conductor: copper-alloy / silver-plated

  • Outer conductor material / surface: copper-alloy / silver-plated

  • Other metal parts material / surface: copper-alloy / nickel-plated

  • Insulation: PTFE

  • Housing sealing: Silicone rubber

  • IP protection level: IP 68

  • IP protection level remark: Connected with appropriate gasket

  • Weight, approx.: 400.0 g



(SP-716-F)

SKU SP-716-F
Shipping Width 0.050m
Shipping Height 0.050m
