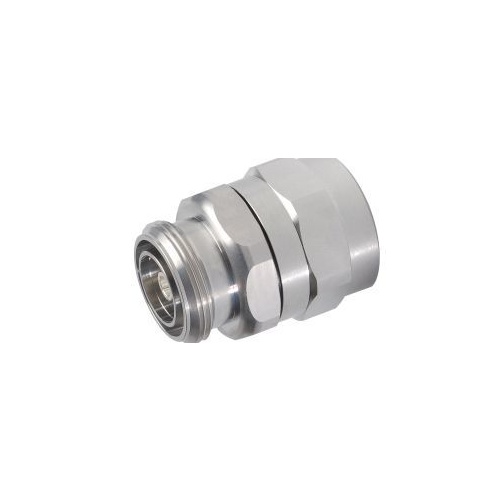

78EZDF 7/16 DIN Female EZfit® Connector for 7/8" Heliax cable



General Specifications



  • Interface 7-16 DIN Female

  • Body Style Straight Brand EZfit®

  • Harmonized System (HS) Code 854420

  • (Coaxial cable and other coaxial electric conductors) Mounting Angle Straight



Electrical Specifications



  • Connector Impedance 50 ohm

  • Operating Frequency Band 0 – 5000 MHz

  • Cable Impedance 50 ohm

  • 3rd Order IMD, typical -116 dBm @ 1800 MHz, 3rd Order IMD

  • Test Method Two +43 dBm carriers

  • RF Operating Voltage, maximum (vrms) 1415.00 V dc

  • Test Voltage 4000 V

  • Outer Contact Resistance, maximum 1.50 mOhm

  • Inner Contact Resistance, maximum 0.40 mOhm

  • Insulation Resistance, minimum 5000 MOhm

  • Peak Power, maximum 40.00 kW

  • Insertion Loss, typical 0.05 dB



(78EZDF)

SKU 78EZDF
Shipping Width 0.050m
Shipping Height 0.050m
