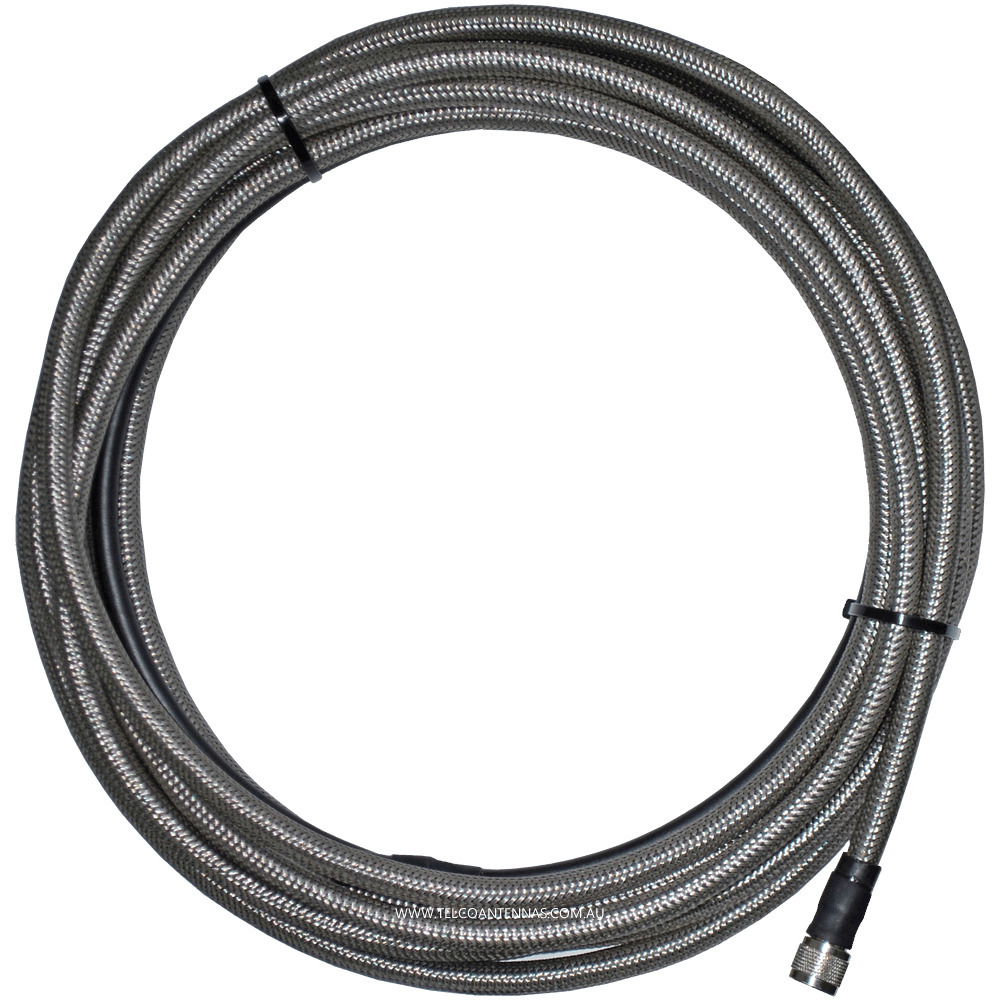

35m LCU400 Super Low Loss Coaxial Cable



Key Features



  • LCU400 50Ω series cabling

  • High grade stainless steel outer braid

  • Your choice of connectors

  • DB-FLEX.



Usage



  • High environmental protection LCU-400 cables, pre-fitted with stainless steel outer braiding for protection from wildlife and vandal attack

  • Can be combined with mid-span grounding for added EMI protection.

  • This cable is manufactured locally in Brisbane, individually swept using Anritsu SiteMaster - test report available upon request

  • Please use the dropdown boxes to select your cable terminations.



Introducing dB-FLEX



  • dB-FLEX is our flagship subtype of LCU400 cabling, designed for maximum weather resistance and usability

  • LCU400 dB-FLEX sports a 7-strand bare copper centre conductor which permits repeated bending and much greater flexibility, allowing an incredibly tight bend radius - similar to Times Microwave's LMR-400 UltraFlex

  • Both dB-FLEX and UltraFlex cables achieve this by trading off for a marginally higher per-metre loss, up from 0.128dB/m to 0.145dB/m @ 850MHz.

  • dB-FLEX has a UV-stable TPE (Thermoplastic Elastomer) jacket designed for harsh outdoor environments while maintaining maximum flexibility and minimising plastic memory (for improved wall-cavity feeding).



A heads up!



  • Emergency stock fulfilment may use standard LMR-400 cable

  • If you specifically require dB-FLEX cable please advise us when placing your order.



Importance of LCU400 Cable



  • When it comes to high frequency networks, such as 3G, 4G, WiFi and microwave band communications, cable loss becomes a big factor affecting both signal quality and strength

  • L400 series cable such as Telco LCU400 have one quarter the loss of standard grade cables like RG58, and one third the loss of LCU195 series cable.

  • When used in cellular-band communications (700-2700MHz), LCU400 coaxial cable is suitable for lengths up to 30 metres

  • For lengths exceeding 30m please see Heliax LDF4-50A

  • Full test reports are available upon request.



Specifications / Frequency



Electrical Specifications



  • Resistance: 50Ω

  • Capacitance: 78.4pF/m

  • Signal Loss (typical, terminated cable):

    • 0.145dB/m @ 850MHz

    • 0.151dB/m @ 940MHz

    • 0.229dB/m @ 1810MHz

    • 0.259dB/m @ 2170MHz

  • Frequency Range: DC-16GHz

  • Velocity of Propagation: 85%

  • Nominal Delay: 3.92ns/m

  • Voltage Withstand: 2500Volts DC

  • Peak Power: 16kW



Mechanical Specifications



  • Weight/100m: 12.8kg

  • Minimum Bend Radius: 25.4mm

  • Conductor Material: 7 Strand Bare Copper (2.74mm)

  • Insulating Material: Gas Injected Foamed Polyethylene (7.24mm)

  • Outer Shield Material:

    • (1) Sealed APA Tape 100% Coverage (7.37mm)

    • (2) Tinned Copper Braid 98% Coverage (8.17mm)

  • Outer Jacket Material: Thermoplastic Elastomer (TPE), Hone Finish (10.3mm)
