UHF PL259 Male to BNC Male Adaptor

UHF PL259 Plug to BNC Plug

UHF PL259 Pin to BNC Plug




Electrical Specifications


  • Resistance: 50Ω (variable)

  • Frequency Range: DC-300MHz

  • Working Voltage: 500V RMS

  • Withstand Voltage: 1500V RMS

  • Insertion Loss: <0.2dB/3GHz

  • VSWR: <1.22:1


Mechanical/Environmental Specifications


  • Durability: >500 cycles

  • Body Material: Brass

  • Plating Material: Nickel

  • Pin/Socket Contact: Brass/Beryllium-Copper

  • Pin/Socket Plating: Gold

  • Insulator: PTFE

  • Operating Temperature: -40° to 85° C

  • MIL-C-39012

  • CECC 22120

  • IEC 60169-12

  • IEC 60169-8

  • GB/T 15888

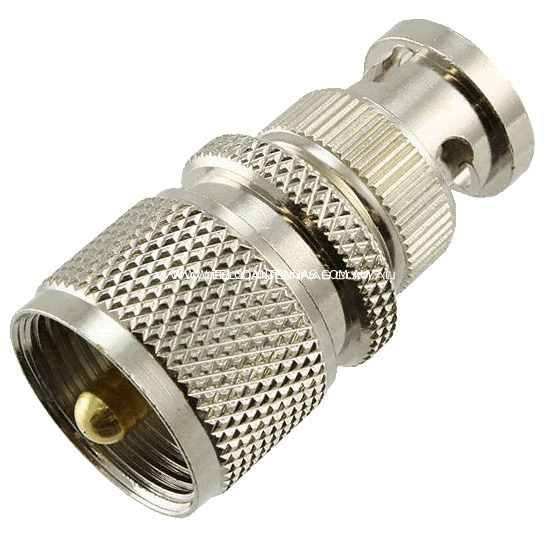

Product image is representative only - for exact dimensions and/or specification please contact us for a copy of the CAD drawing.



Shipping Weight 0.0450kg
Shipping Width 0.050m
Shipping Height 0.050m
Shipping Length 0.030m
Shipping Cubic 0.000075000m3
