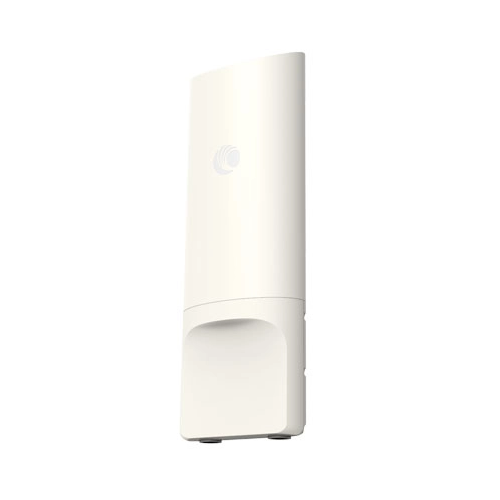

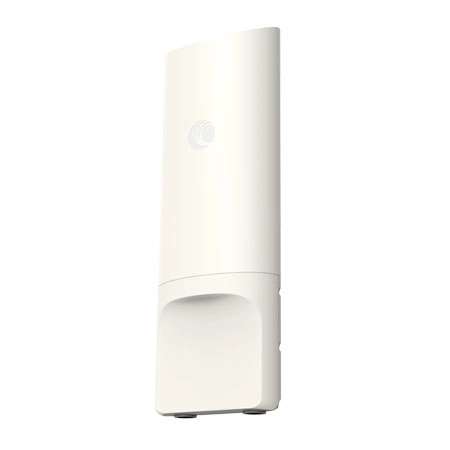

Cambium Networks XV2-2T1 Wi-Fi 6 Outdoor Access Point 802.11ax Dual-radio, 2x2, HE 120º Sector Antenna

Key Features

  • Dual radio 802.11ax
  • 2.5GbE Uplink Ethernet
  • 1 GbE with power out
  • Outdoor IP67 rated, -40ºC to 65ºC
  • HE 120º Sector Antenna




  • The XV2-2T1 is a dual radio Wi-Fi 6 access point (AP) designed for outdoor deployments in Wi-Fi hotspots, outdoor enterprise networks, hospitality, and education markets.

  • Surge suppression up to 4kV and an LTE co-existence filter are featured.

  • The XV2-2T1 delivers Cambium 30VDC power out, or 48VDC for PoE devices connected to the second gigabit Ethernet port.

  • Ideal for connecting the XV2-2T1 to a Cambium subscriber module (SM), Terragraph CN (connection node), orany IP and Ethernet device such as a security IP camera, or another Wi-Fi access point.

  • The new IEEE 802.11ax standard delivers higher network speeds and enables more connected devices at higher packet quality.

  • In outdoor deployments, the IEEE 802.11ax standard delivers greater range by boosting the RF frame preamble by 3dB and improved signal quality with increased guard interval vs previous Wi-Fi technology. The XV2-2T1 is fully backward compatible with existing Wi-Fi technology and prepares a network for higher growth and greater density of Wi-Fi connected devices.

Specification Sheet


Brand Cambium
Shipping Width 0.050m
Shipping Height 0.050m
