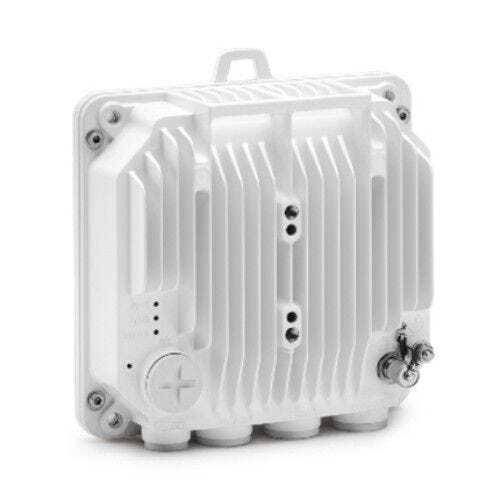

Cambium PTP 820S Point-to-Point Licensed Microwave Radio

The PTP 820/850 is a point-to-point licensed microwave backhaul platform that integrates leading networking functionality with the industry’s most advanced microwave technologies, creating a superior microwave transport solution.
Supporting licensed frequency bands ranging from 6 to 86 GHz, the PTP 820/850 series delivers a wide range of configurations to offer a tailored solution for any deployment scenario.
Composed of high-density multi-technology nodes and integrated radio units, the PTP 820/850 series offers flexibility in choosing all-indoor, split-mount, and all-outdoor configuration options. Exploiting unique
Line of Sight (LOS) Multiple Input Multiple Output (MIMO) technology, modulation up to 4096 QAM and wider channel bandwidths ensures industry-leading throughput and spectral efficiency.
The PTP 820E/850E operate in E-Band radio providing throughput up to 20Gbps, this eliminates the need for future forklift upgrades, or major system overhaul by the network operator to deliver multi gigabit-plus capacity.
PTP 820/850 also offers both Synchronous Ethernet (SyncE) and IEEEv2 synchronization protocols required for large ISP and MPLS networks.
Operations, Administration and Maintenance (OA&M) tools coupled with a full suite of network and element management systems (NMS and EMS) simplify network provisioning and monitoring, reducing operators’ total cost of ownership and enabling them to meet the most stringent service level agreements.
Combining technologies, equipment and services, PTP 820/850 enables network operators to meet accelerating demand for capacity cost-effectively under rapidly evolving conditions.

Specifications
RADIO
Frequency6-38 GHzFrequency1+0, 1+1 HSB, 2+0
ProtectionProtection: 1+1 HSB
ProtectionQPSK to 2048 QAM w/ACM
FeaturesAdvanced Frequency Reuse (AFR)
TECHNICAL
Dimensions230mm(H), 233mm(W), 98mm(D), 6.0kg
Pole Diameter Range (for Remote Mount Installation)8.89 cm – 11.43 cm
Environmental-33°C to +55°C (-45°C to +60°C extended)
Power InputStandard Input: -48 VDC, IDU DC Input range: -40 to -60 VDC
Read More

(C110085B001A)

SKU C110085B001A
Brand Cambium
Shipping Weight 0.0450kg
Shipping Width 0.050m
Shipping Height 0.050m
Shipping Length 0.030m
Shipping Cubic 0.000075000m3
