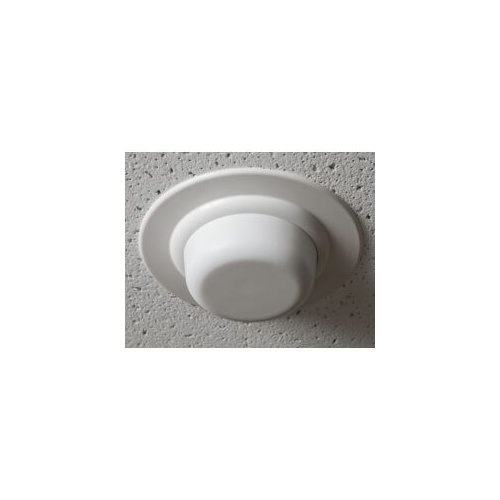

Cell-Max Low PIM Omni Directional In-building Antenna - 617-6000MHz



Key Features



  • Low Profile Design

  • Single Port for Cel-Fi GO amplifier

  • Full 700 to 2700MHz band coverage

  • PIM Rated -153 dBc.



Usage



  • Ideal ceiling mounted drop antenna for multi-storey or multiple room coverage

  • The CMAX-O-43-UW-I53 antenna is a high performance, PIM rated multiband omni-directional ceiling mount antenna, covering 617-6000MHz

  • The multi-band design eliminated the need to purchase different antennas for each frequency and is ideal for all fixed in-building coverage applications.



Specifications / Frequency

  • Nominal Gain: 3.5dBi / 4.0dBi / 6.0dBi / 6.5dBi
  • Frequency: 617-698MHz / 698-960MHz / 1400-1600MHz / 1710-2700MHz / 3300-3800MHz / 5150-5925MHz
  • VSWR: <1.7:1
  • Nominal Impedance: 50Ω
  • Horizontal Beamwidth 360°
  • Max Power Rating: 50 W
  • PIM Rating: -153 dBc



Mechanical/Environmental Specifications

  • Construction: UV resistant White ABS
  • Height: 82mm
  • Radome Diameter: 206mm
  • Weight: 0.6kg
  • Cable Length: 500mm
  • Termination: 4.3-10 Female



Read More

(CMAX-O-43-UW-I53)

SKU CMAX-O-43-UW-I53
Brand RFI
Shipping Weight 0.0450kg
Shipping Width 0.180m
Shipping Height 0.160m
Shipping Length 0.190m
Shipping Cubic 0.005472000m3
