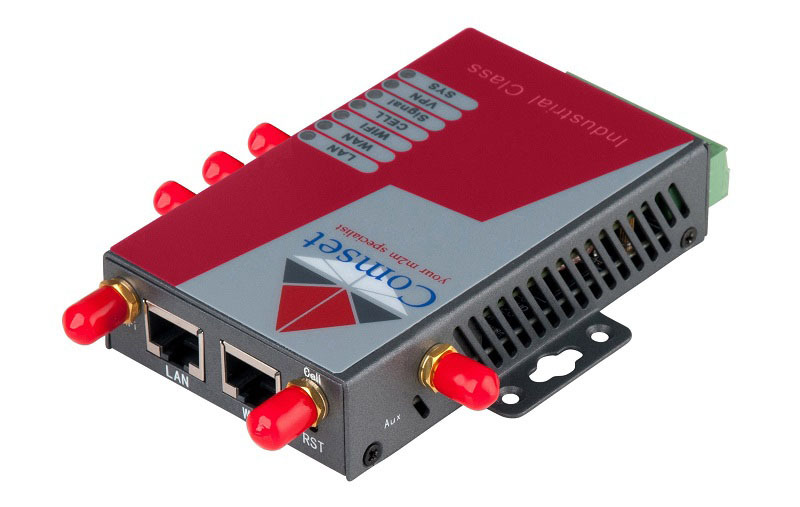

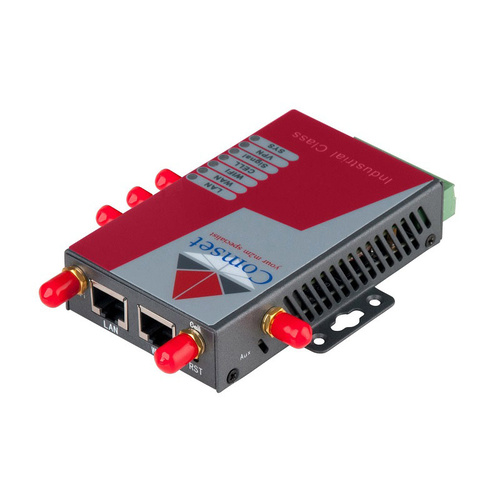

Comset 5G / 4G / 3G Industrial Router with Two Gigabit Ports (CM685VX)



Key Features

  • 5G Modem Router with speeds of up to 2Gbps
  • Supports 5G SA and 5G NSA modes
  • Supports 4G LTE-A CAT 16 Download
  • Supports 4G LTE-A Cat18 Upload
  • Worldwide 5G and 4G LTE-A coverage
  • OpenWrt Fully Featured Linux OS
  • Two Gigabit Ethernet Ports (One LAN and one LAN/WAN)
  • Automatic failover between ADSL/NBN and 5G/4G/3G
  • Built-in transient and reverse polarity voltage protection, over-current and over-voltage protection
  • SMS Control (check out the Comset SMS App)
  • Fully Operational on telstra.corp APN



Usage



The Comset CM685VX is a New Generation 5G Industrial Router. Supporting both 5G SA and 5G NSA modes, the CM685VX delivers lightning internet speeds over the 5G networks.  With two Gigabit Ethernet ports and built-in WiFi N300, the CM685VX provides a powerful and rapidly deployable internet solution to commercial customers and small to medium businesses.

The Comset CM685VX is an Innovative 5G Router powered by a Dual Core 880MHz CPU. It features one Gigabit LAN port for fast wired connections, 1 Gigabit WAN/LAN port for automatic failover between fixed NBN/ADSL and mobile 4G or 5G, as well as a GPIO with four digital input/output ports.  Other features include VPN IPSEC, PPTP (Server and Client), L2TP and OpenVPN to establish a secure connection over the 4G/5G network.

The Comset CM685VX is a Global 5G Router, supporting frequencies across all major carriers worldwide. The innovative design, easy integration and rich built-in features make the CM685VX the router of choice for a wide range of business and commercial applications, including SOHO, SMB, industrial automation, building automation, security, surveillance, transportation, health, mining and environmental monitoring.



Specifications / Frequency

Main

WAN

5G/4G/3G Cellular Modem
WiFi as WAN
Failover and Load Balancing
Advanced modem failure check

IP Pass-through

WAN ports support Cell/Static IP/DHCP/PPPoE (on demand, keep alive, schedule, manual, standby)

LAN

DHCP Server, Client, Relay
DNS and DNS Proxy
DDNS
UPnP
DMZ
Multicast/Multicast Proxy
QoS (DSCP and Priority Queuing)
MAC Address Filtering
VLAN 802.1Q

WiFi

WiFi N300
802.11 a/b/g/n 2.4 GHz
WPA2 Enterprise (WiFi)
Hotspot/Captive Portal
SSID-based Priority

VPN AND ROUTING

IPsec Tunnel, PPTP, L2TP, GRE Tunnel, OpenVPN, OSPF/BGP/RIP, Virtual Server/Port Forwarding, IPv6, VRRP.

MANAGEMENT

Network Management Software (NMS)

Web GUI, API, CLI/SSH/Telnet, SFTP
Data Usage Alerts (router and per client)
Advanced Troubleshooting
Device Alerts
SNMP
SMS control
TR-069

SECURITY

RADIUS and TACACS+ support
802.1x authentication for Ethernet
Certificate support
ALGs
MAC Address Filtering
Advanced Security Mode (local user management only)
Per-Client Web Filtering
IP Filtering
Content Filtering (basic)
Website Filtering
Zone-Based Object Firewall with host address (IP or FQDN), port, and mac address
NAT, SPI, port blocking, service filtering (FTP, SFTP, SMTP, HTTP, RPL, SNMP, DNS, ICMP, NNTP, POP3, SSH), protocol filtering, WAN ping (allow/ignore)

OPTIMIZED IP COMMUNICATIONS

Automated WAN Failover
WAN Affinity and QoS allow prioritization of VoIP services
Advanced VPN connectivity options to HQ
SIP ALG and NAT to allow VoIP and UC communications to traverse firewall
MAC Address Filtering
802.1p/q for LAN QoS segmentation and treatment of VoIP on LAN
Private Network support (wired and 4G/5G WAN)

Firmware update

supports firmware update locally, remotely (LAN, WiFi and OTA WAN)

DI/DO (Digital Input and Output)

4 x Digital Input ports for alarm notification via email or SMS. These can also be used as Digital Output ports to control electrical devices via SMS or GUI (a DIO board is required)

Other

Cellular and WiFi MIMO
Syslog (local and remote)
DDNS
DNS proxy
Optimized EMC design
Real-time clock (NTP, update with defined hours)
WAN/LAN/Memory statistics

Modbus

Features

Redundancy and Load Balancing

Failover between NBN/ADSL and 5G Modem
Auto-dial feature, keep alive link
LCP, ICMP check
Built-in watch dog
Three-way redundancy: Cellular (3G/4G/5G), RJ45 WAN (xDSL, DHCP, Fixed IP), WiFi client
Load balancing

Intelligent Routing

UPnP, DMZ, virtual server/port forwarding, routing rules, NAT-less routing, wired or wireless WAN-to-LAN IP passthrough, route management, per-interface routing, content filtering, IP filtering, website filtering, per-client Web filtering, local DHCP server, DHCP client, DHCP relay, DNS, DNS proxy, Split DNS; ALGs: PPTP, SIP, TFTP, FTP, IRC; MAC address filtering, Dynamic DNS, LAN/WAN affinity, STP, enterprise routing protocols: BGP/OSPF/RIP, multicast proxy

Management

web-based GUI (local management), optional RADIUS or TACACS+ username/password; remote WAN web-based management w/ access control (HTTP, HTTPS); SNMP v1, v2c, & v3; CLI over SSH, SSH to serial, SSH to telnet, SFTP; API; one-button firmware upgrade; modem configuration, update, and management; modem data usage w/ alerts, per-client data usage; custom AT scripting to modems; SMS; TR-069

VPN

IPsec – Tunnel, NAT-T, and transport modes; Hash (MD5, SHA128, SHA256, SHA384, SHA512), Cipher (AES, 3DES, DES);
GRE tunneling;
PPTP support;
L2TP, L2TP over IPSec support;
VPN pass-through;
OpenVPN;
Certificate support;
multiple networks supported in a single tunnel, site-to-site dynamic VPN with NHRP; VTI Tunnel support;

SMS, SMS Control and Alarm

Receive and Send SMS;
WAN Cell APN configuration via SMS;
SMS Control and Alarm. SMS or Call to control router to be online, offline, reboot, signal and status monitor (check out the Comset SMS App)
SMS text send/receive.

Specifications

Main

Hardware

CPU: 880Mhz dual core;
RAM: 1Gb DDR3, option for up to 4Gb DDR3;
Flash: 128Mb, option for up to 8Gbit

WAN

Integrated 5G modem (with 4G and 3G failover);
10/100/1000Mbps Gigabit Ethernet WAN port – NBN/ADSL;
WiFi as WAN; MIMO “N” 2.4 GHz; 802.11 a/b/g/n

LAN/WiFi

WiFi N300; 802.11 a/b/g/n;
10/100/1000Mbps Gigabit Ethernet LAN port.

Ports

Power (Passive POE, 2 Pins Terminal Block for wire connection)
2 x Ethernet LAN/WAN
4 x cellular (or 3 x cellular and 1 x GPS) antenna connectors SMA
2 x WiFi antenna connectors SMA
1 x Serial connector RS232 (3 Pins Terminal Block)
4 x Digital I/O ports (Terminal Block)

Power

DC input steady state voltage range: 5-40 VDC (requires inline fuse for vehicle installations);
For 9–24 VDC installations, use a 3 A fuse;
For > 24 VDC installations, use a 2.5 A fuse;
Reverse polarity and transient voltage protection per ISO 7637-2
Ignition sensing (automatic ON and time-delay OFF);
Power consumption:
Idle: typical=100mA@12VDC; Maximum=500mA@12VDC;
Tx/Rx: typical=300mA@12VDC; Maximum=800mA@12VDC;
12VDC 1.5A adapter included

LEDs

SYS,  VPN, SIGNAL, CELL, WAN, LAN, WiFi

UIM/SIM Card Slot

Supports 1.8V/3V UIM/SIM cards, two sim card slots

Other

Reset button, console port

Size

100mm x 60mm x 21mm

Weight

230g (not including the antennas)
380g (including the antennas)
860g (including all accessories)

Temperature

 −35 °C to 75 °C operating;
 −40 °C to 85 °C storage

Humidity (non-condensing)

5% to 95% operating;
5% to 95% storage

Case

Alloy; Black color

Cellular

Compatible Mobile Networks

5G NR

4G LTE (FDD/TDD)

3G UMTS WCDMA (HSUPA/HSDPA/HSPA/HSPA+/DC-HSPA+)

Cellular Frequency

o 5G NR

n1/n2/n3/n5/n7/n8/n12/n20/n28/n38/n40/n41/n48/n66/

n71/n77/n78/n79



o 4G LTE FDD

B1/B2/B3/B4/B5/B7/B8/B9/B12/B13/B14/B17/B18/B19/

B20/B25/B26/B28/B29/B30/B32/B66/B71



o 4G LTE TDD

B34/B38/39/B40/B41/B42/B48

o 4x4 MIMO DL

o 3G WCDMA

B1/B2/B3/B4/B5/B6/B8/B19

Bandwidth



o 5G SA (Stand Alone)

§ Downlink 2.1Gbps

§ Uplink 900Mbps



o 5G NSA (Non-Stand Alone)

§ Downlink 2.5Gbps

§ Uplink 650Mbps



o 4G LTE

§ Downlink 1.0Gbps

§ Uplink 200Mbps

o WCDMA

§ Downlink 42Mbps

§ Uplink 5.76Mbps

WiFi (WLAN)

Wi-Fi

WiFi N300 802.11a/b/g/n;
Can be used as AP or Client.

Frequency Range:
2.412 ~ 2.472GHz

Other

Warranty

1 Year Warranty

Package Contents

CM685VX 5G Router
Ethernet and Serial Cables
Power Adapter
4 x Cellular Antennas, 2 x WiFi Antennas

Regulatory Compliance

RCM*, CE, RoHS

*TBA

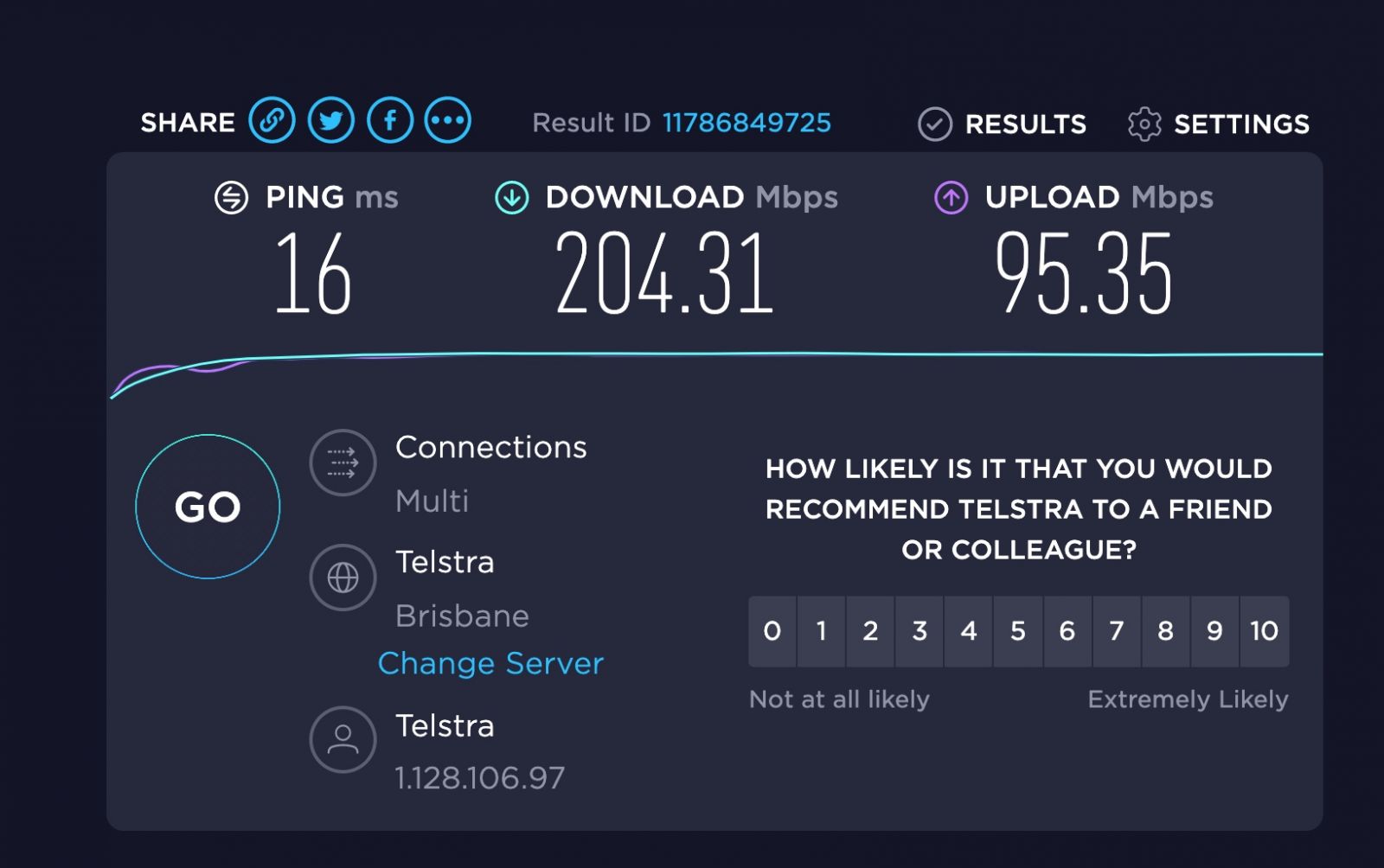

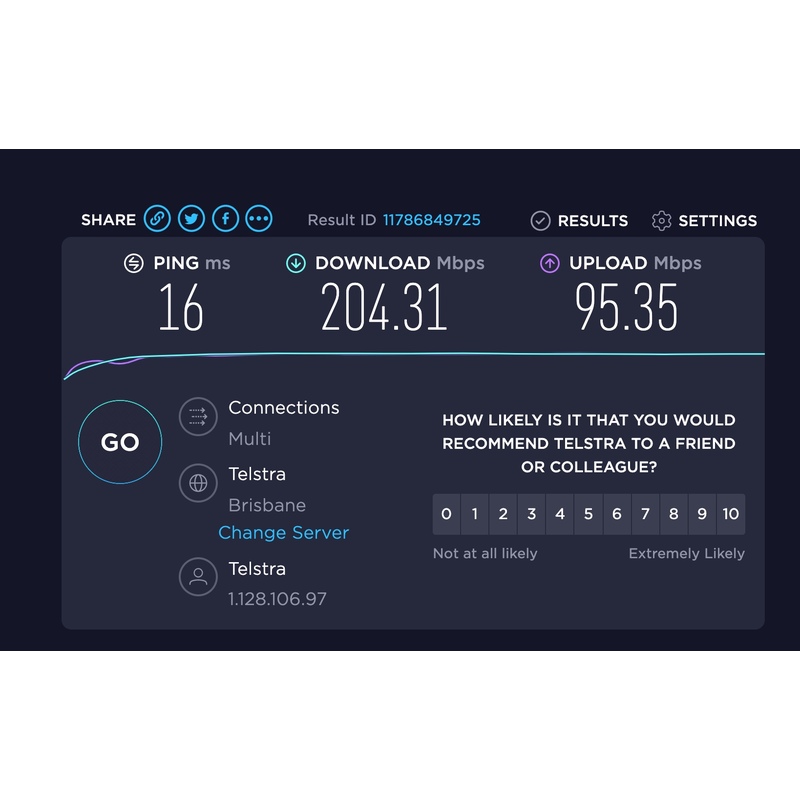

Real world performance under ideal conditions
