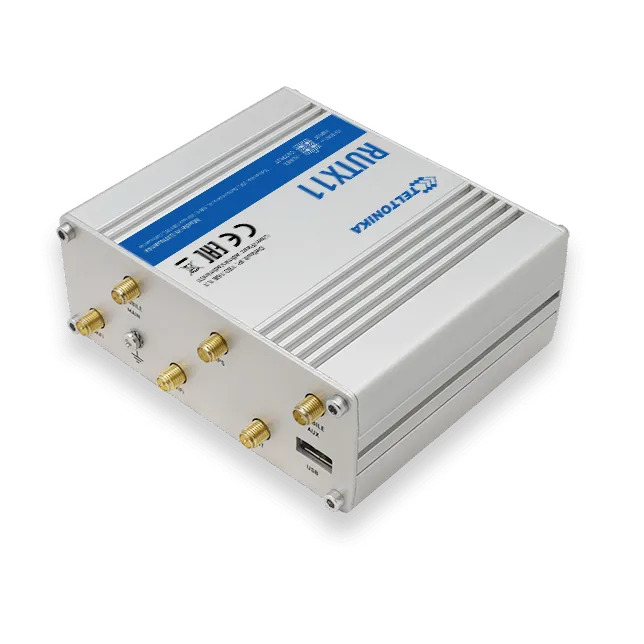

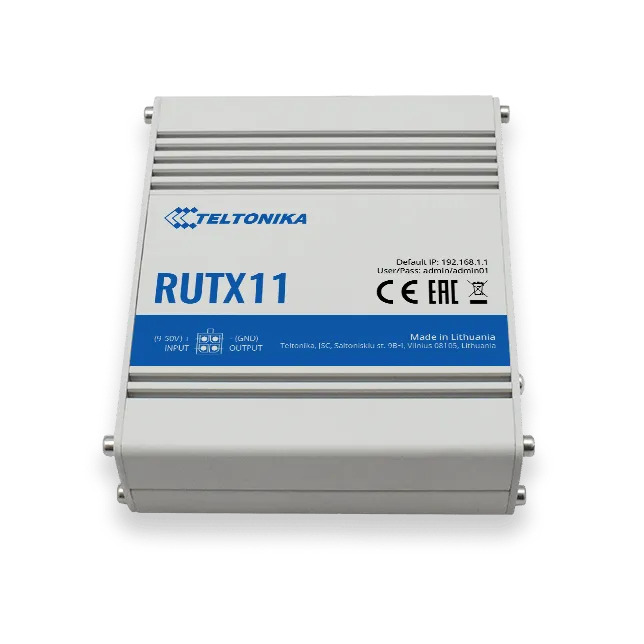

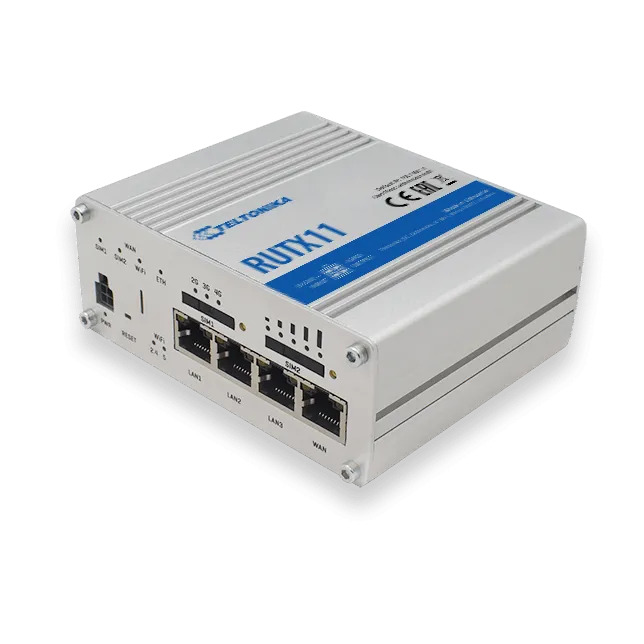

Teltonika RUTX11 - Dual SIM LTE-A Cat6 cellular IoT Router



Key Features



  • Next generation LTE-A Cat6 cellular IoT router

  • Dual SIM, Carrier Aggregation and Gigabit Ethernet interfaces

  • VPN, Firewall and plenty of processing power for custom applications on OpenWrt based RutOS system

  • Support LTE Cat 6 up to 300 Mbps

  • Gigabit Ethernet with speeds up to 1000 Mbps

  • Dual-SIM with auto Failover, Backup WAN and other SW features

  • Teltonika Remote Management System compatible

  • Multiple secure VPN services

  • Easy to use, secure and feature rich OpenWrt based Operating System.



Usage



  • This powerful LTE router is designed as a Main/Backup Internet source where steady connection and high data throughput is required

  • Equipped with Dual-SIM and 4 x Gigabit Ethernet ports. RUTX09 has all advanced RutOS software and security features.



Specifications / Frequency



Electrical



  • Mobile module: 4G (LTE) – Cat 6 up to 300 Mbps, 3G – Up to 42 Mbps

  • Input: 1 x Digital Input (Non-isolated, Logic low 0...+5V, Logic high +8...+40V)

  • Output: 1 x Digital Output (open collector type, 30V@0.3A)

  • Connector: 4 pin industrial DC power socket

  • Input voltage range: 9 – 50 VDC, reverse polarity protection, voltage surge/transient protection

  • PoE (passive): Passive PoE. Possibility to power up through LAN port, not compatible with IEEE 802.3af and 802.3at standards

  • Power: 4 pin industrial DC power socket

  • Power consumption: 11W Max.

  • Antennas: 2 x SMA for LTE, 1 x SMA for GNNS

  • Bridge: Direct connection (bridge) between mobile ISP and device on LAN

  • Multiple PDN: Possibility to use different PDNs for multiple network access and services

  • Band management: Band lock, Used band status display

  • OpenVPN: Multiple clients and server can be running simultaneously, 12 encryption methods

  • RMS: Teltonika Remote Management System (RMS)

  • Operating system: RutOS (OpenWrt based Linux OS)

  • Wi-Fi - 802.11ac (WiFi 5) with data transmission rates up to 867 Mbps (Dual Band, MU-MIMO), 802.11r fast transition, Access Point (AP), Station (STA)



Mechanical



  • Dimensions: 115 mm x 95 mm x 44 mm (H x W x D)

  • Weight: 456g

  • Casing material: Full aluminium housing

  • Mounting options: DIN rail (can be mounted on two sides), flat surface placement

  • Operating temperature: -40 C to 75 C

  • Operating humidity: 10% to 90% non-condensing

  • Ingress Protection Rating: IP30

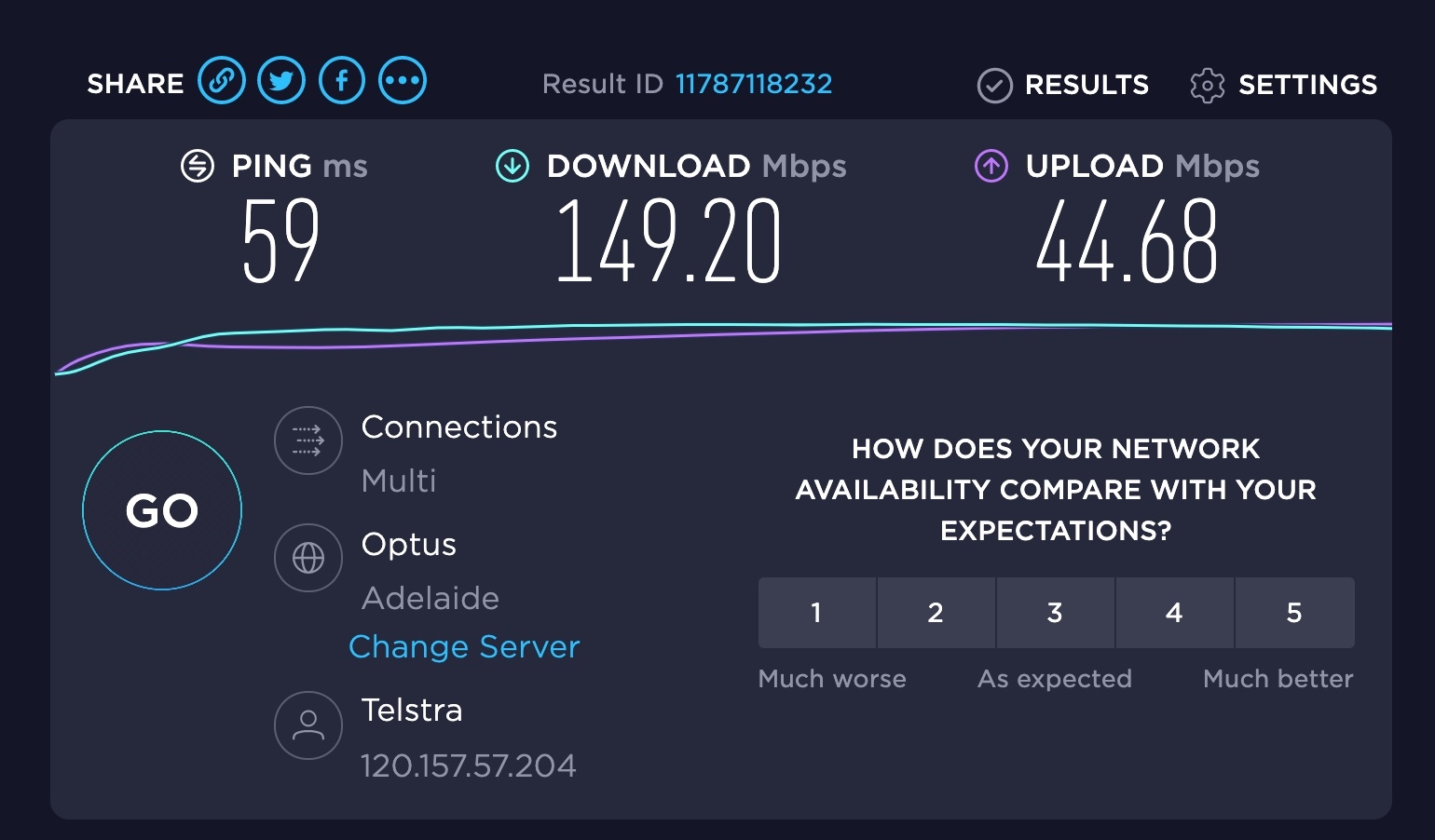

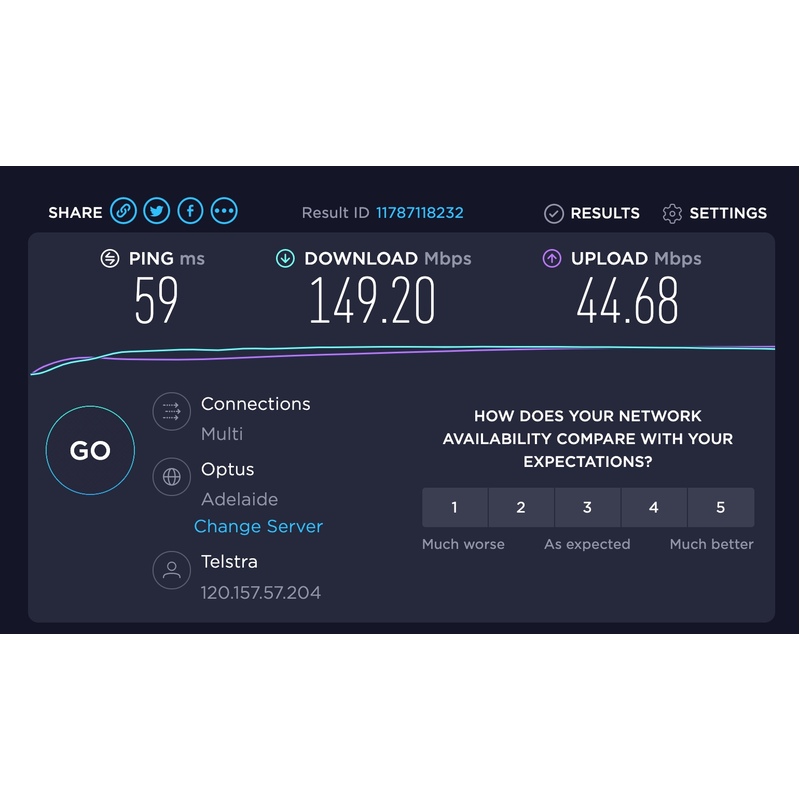

Real world performance under ideal conditions
