CRC9 Male Crimp Connector



Key Features

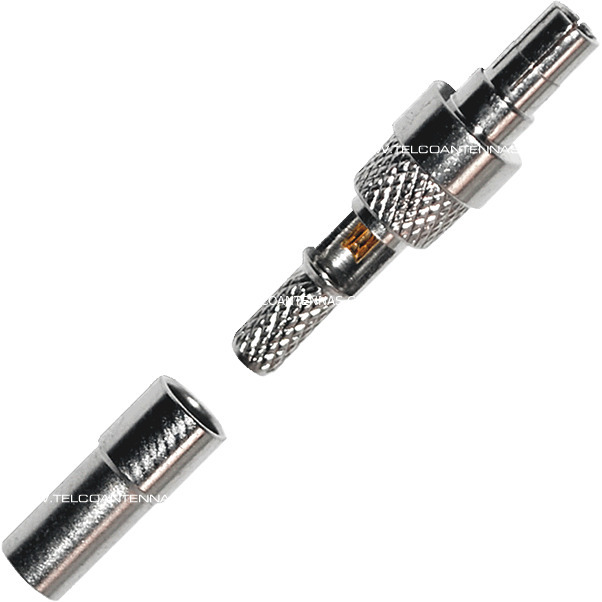

CRC9 Plug

Suits 2.5mm diameter cable such as RG174 and RG316



Usage



  • A crimp connector is used to terminate the end of a coaxial cable to allow connection to an RF device or antenna

  • Each series of connector differs by method of connection, size, and electrical properties, allowing a technician to select a connector to best match the intended purpose

  • Most crimp connectors consist of three components - the connector body, pin/socket, and crimping ferrule

  • Terminating a coaxial cable with a crimp connector requires three tools - a wire stripper/cutter, soldering iron, and hex crimp

  • You can find instructional videos on crimping most connectors on YouTube.



Crimp Hex Die Sizing



  • RG316/RG174 - 0.128"

  • RG58/LMR195 - 0.213"

  • LMR400/RG8 - 0.429"

  • For large orders please contact our team to arrange a quote.



Electrical Specifications



  • Frequency Range: 0-6GHz

  • Impedance: 50Ω nominal

  • VSWR: <1.06:1



Mechanical Specifications



  • Temperature Range: -55°C to + 155°C



Product image representative only, for exact dimensions and/or specification please contact us for a copy of the CAD drawing.


tick rohs compliant lead free



(CRC9-174)

SKU CRC9-174
Shipping Weight 0.0450kg
Shipping Width 0.050m
Shipping Height 0.050m
Shipping Length 0.030m
Shipping Cubic 0.000075000m3
