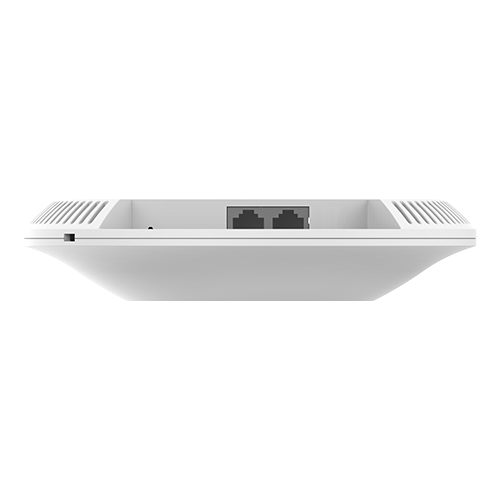

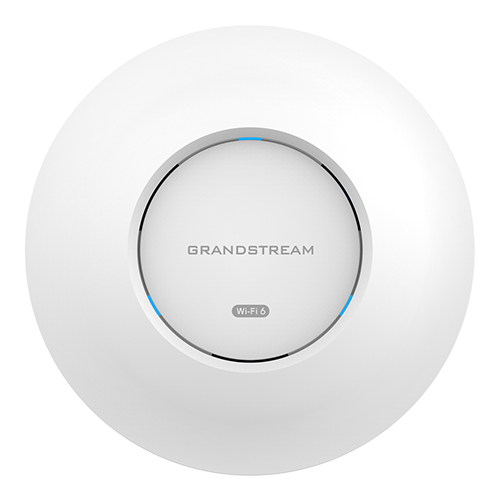

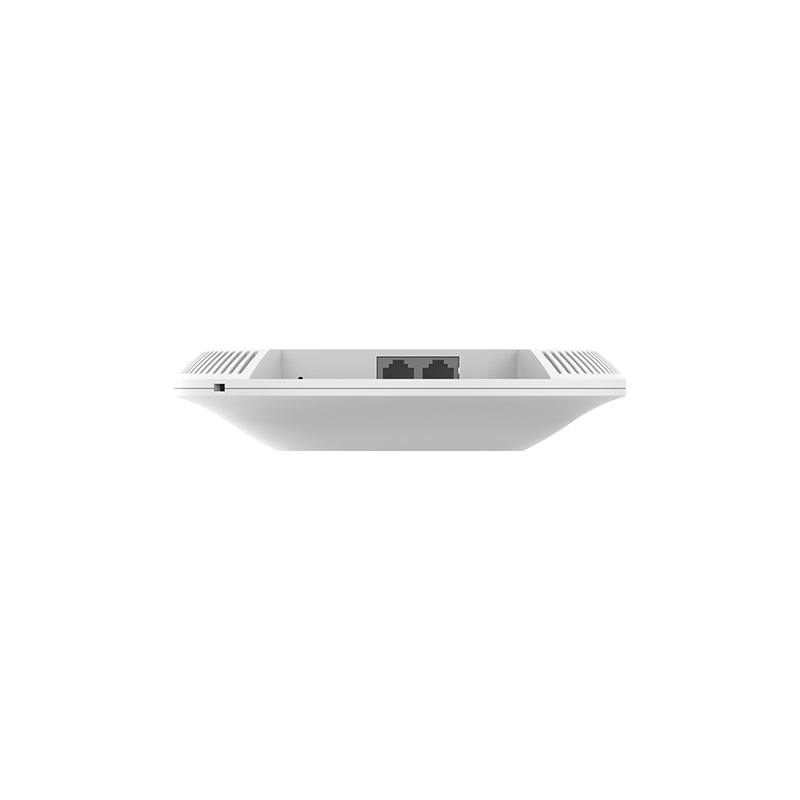

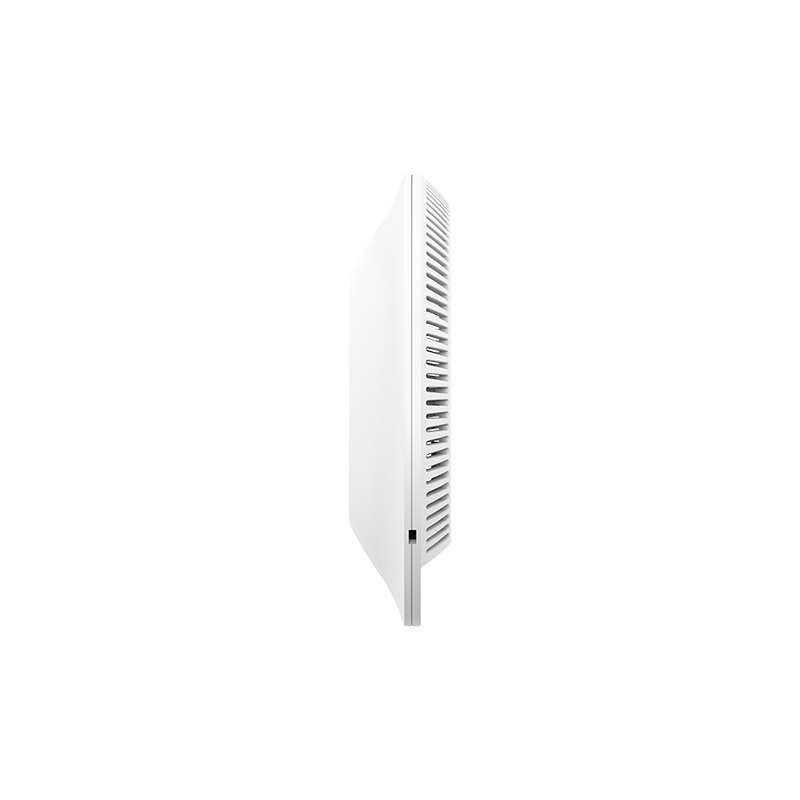

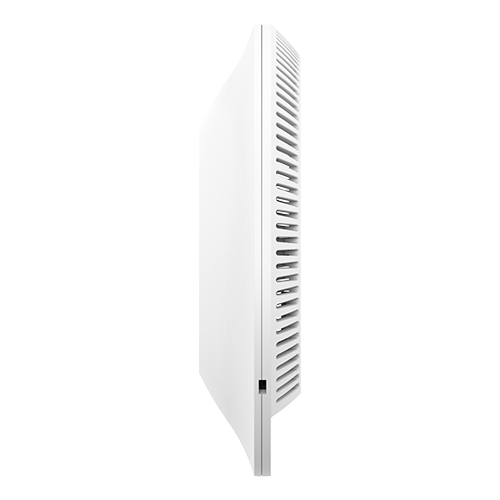

Grandstream GWN7660 802.11ax 2x2:2 Wi-Fi 6 Access Point

Key features

• 1.77Gbps aggregate wireless throughput and 2x Gigabit Ethernet ports

• Dual-band 2x2:2 MUMIMO with DL/UL OFDMA technology

• Up to 175-meter coverage range

• Supports 500+ concurrent Wi-Fi client devices

• Advanced QoS to ensure real-time performance of low-latency applications

• Anti-hacking secure boot and critical data/control lockdown via digital signatures, unique security certificate/random default password per device

• Self-power adaptation upon auto detection of PoE or PoE+

• Embedded controller can manage up to 50 local GWN series APs; GWN.Cloud offers unlimited AP management; GWN Manager offers premise based software controller

Usage

• The GWN7660 offers dual-band 2x2:2 MU-MIMO with DL/UL OFDMA technology and a sophisticated antenna design for maximum network throughput and expanded Wi-Fi coverage range.

• To ensure easy installation and management, the GWN7660 uses a controller-less distributed network management design in which the controller is embedded within the product’s Web user interface.

• The GWN7660 is also supported by GWN.Cloud and GWN Manager, Grandstream’s cloud and on-premise Wi-Fi management platform.

• It is the ideal Wi-Fi AP for voice-over-Wi -Fi deployments and offers a seamless connection with Grandstream’s Wi-Fi capable IP phones.

• With support for advanced QoS, low-latency real-time applications, mesh networks, captive portals, 256 concurrent clients per AP and dual Gigabit network ports with PoE/PoE+, GWN7660 is an ideal Wi-Fi access point for medium wireless network deployments with medium-to-high user density.
