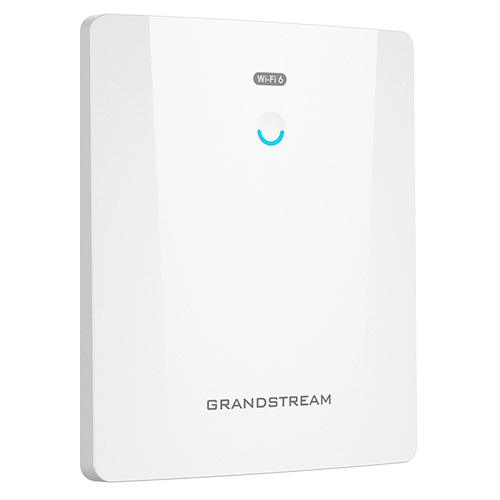

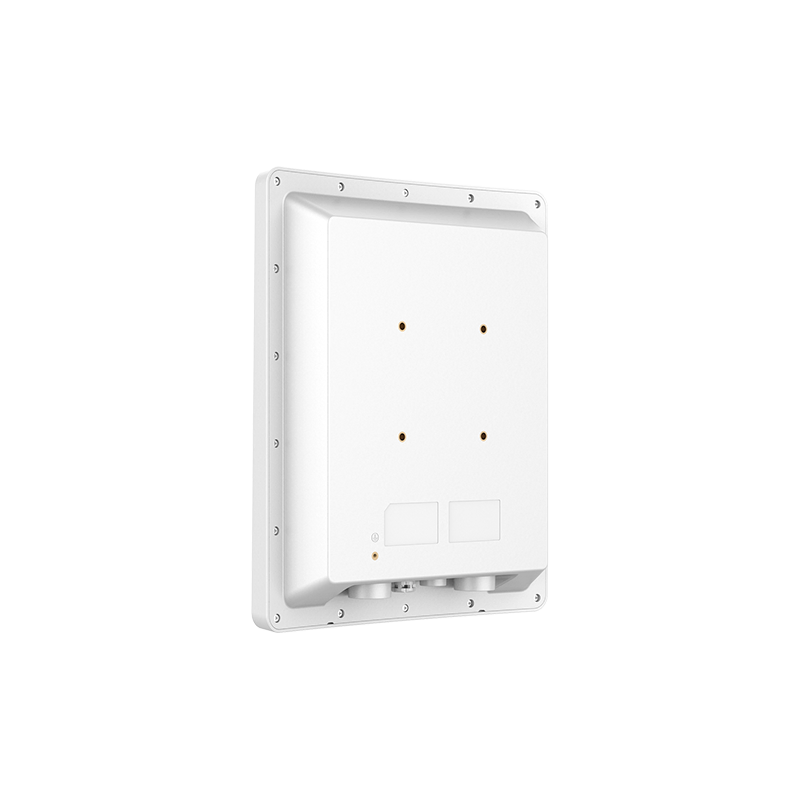

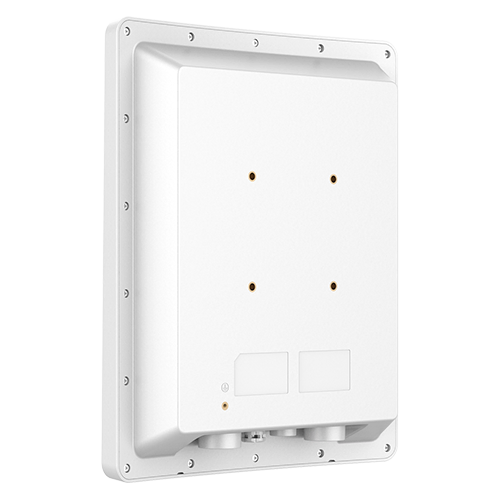

Grandstream GWN7664ELR High-Performance Outdoor Long-Range 802.11ax Wi-Fi 6 Access Point

Key Features

• 6 Gbps aggregate wireless throughput, 2.5 Gbps RJ45, and 2.5 Gbps SFP wireline ports
• Dual-band 4x4:4 MU-MIMO with OFDMA technology
• Self-power adaptation upon auto-detection of PoE or PoE+
• Support 512 concurrent Wi-Fi client devices
• Up to 300-meter coverage range
• Advanced QoS to ensure real-time performance of low-latency applications
• Anti-hacking secure boot and critical data/control lockdown via digital signatures, unique security certificate/random default password per device
• Flexibility of 8 internal antennas
• Embedded controller manages up to 50 local GWN APs; GDMS Networking offers unlimited AP management, & GWN Manager offers on-premise software AP management

Usage

• The GWN7664ELR is an enterprise-grade long-range 802.11ax Wi-Fi 6 access point for medium-to-large businesses and enterprises who need to provide long-range coverage in outdoor spaces.

• To facilitate straightforward installation and management, the GWN7664ELR is equipped with a built-in controller integrated into the product’s web user interface. Additionally, it is compatible with GWN.Cloud and GWN Manager, which are Grandstream’s complimentary cloud and on-premise Wi-Fi management solutions.

• The GWN7664ELR serves as the perfect Wi-Fi access point for voice-over-Wi-Fi applications, providing a seamless connection with Grandstream’s Wi-Fi-enabled voice and video IP phones.

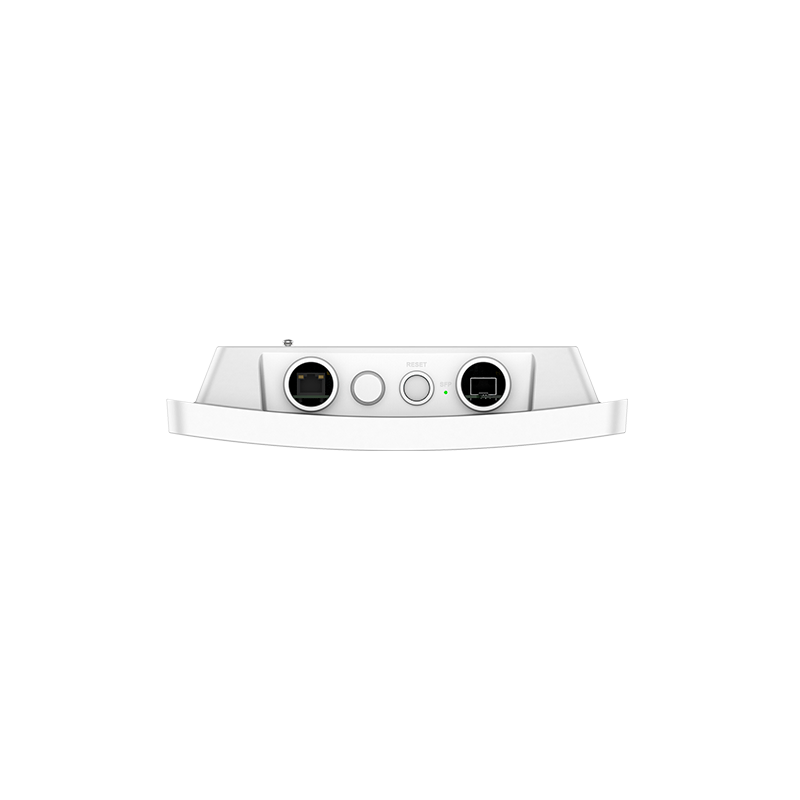

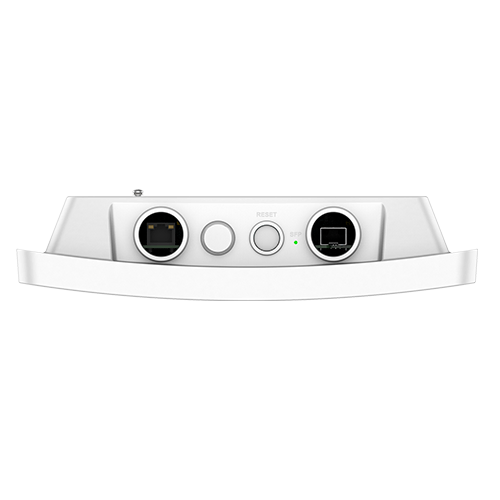

• The GWN7664ELR is designed with support for advanced Quality of Service (QoS), low-latency real-time applications, mesh networking, captive portals, a 2.5 Gigabit Ethernet port with Power over Ethernet Plus (PoE+), and a 2.5 Gigabit SFP port.

• The GWN7664ELR is an excellent outdoor Wi-Fi access point suitable for enterprises, multi-floor offices, warehouses, hospitals, schools, and various other environments.
