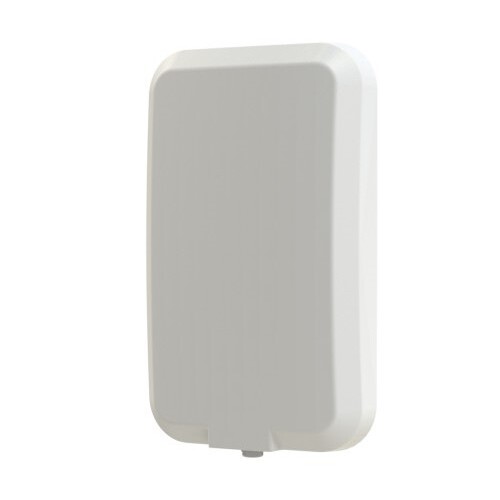

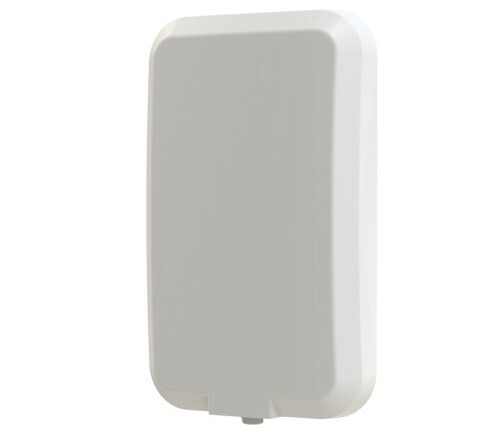

Panorama 2x2 MIMO 3G, 4G & 5G Directional Panel Antenna

Key Features

• Ultra wide-band coverage 700 to 6000MHz

• Wall Mount or Pole Mount

• Your choice of cable length and connectors (SMA or N-type)

• Two cables for true 2x2 MIMO operation

• Wide spectrum design, suits all current and planned cellular networks (including 5G Networks).

Additional Information

• The WMM2G-6-60 is a high gain directional 2x2 MiMo antenna for 4G and 5G networks.

• It incorporates two wideband element assemblies in a single housing and is designed to support fixed site client devices. It offers 6dBi peak gain for 617- 960MHz and 9dBi peak gain for 1710-6000MHz.

• The weather resistant housing is designed for wall or mast mounting with the supplied hardware.

• The standard WMM2G-6-60-5SP version has 5m length ultra-low loss CS32 type coaxial cables which eliminates exposed connector joints and simplifies the installation process

• The WMM2G-6-60-05NJ version has 50cm length cables, fitted with N type jacks, which is ideal for installations that require a longer cable run.

• The WMM2G-6-60 is a value added product for network operators and service providers by improving the link resilience to the router, achieving increased data rates.

Specifications / Frequency

Network Compatibility	Yes/No	Gain
Telstra 4GX (700MHz)		6dBi
Optus 4G+ (700MHz)		6dBi
Telstra Next-G™ (850MHz)		6dBi
Vodafone 4G+(850MHz)		6dBi
Optus Regional 3G (900MHz)		6dBi
Vodafone Regional 3G (900MHz)		6dBi
Telstra/Optus/Voda 4G (1800MHz)		9dBi
All carriers - Urban/Metro 3G (2100MHz)		9dBi
Optus 4G/Vivid Wireless (2300MHz)		9dBi
LTE-TDD Bands 38, 40 (2300MHz)		9dBi
802.11 b/g/n/ac WiFi (2400MHz)		9dBi
Telstra 4Gx (2600Mhz)		9dBi
Optus 4G+ (2600Mhz)		9dBi
Future 5G Networks		9dBi

Electrical Specifications

• Frequency Range: 617-960 / 1710-6000Hz

• Input Impedance: 50Ω

• VSWR: <2:1

• Efficiency: >60%

• Correlation Co-Efficient: <0.2

• Maximum Power: 20 Watts

Mechanical/Environmental Specifications

• Construction: White Impact Resistant ASA

• Cable: 500mm tails or 5m CS29 cables

• Connector: N-Type Female or SMA Male

• Temperature: -40°C +80°C

• Weight: 5.4kg

• Dimensions: 507*307*85mm (L x W x D)

• Ingress Protection: IP66
