Panorama Omnidirectional MIMO Antenna - Mast or Wall Mount

Key Features

•  Incorporates two separately fed ultra wideband elements in a single housing

• Compact weatherproof ASA Housing

• Carrier Aggregation ready

• Wide spectrum design, suits all current and planned networks (including 5G 3500MHz).

Usage

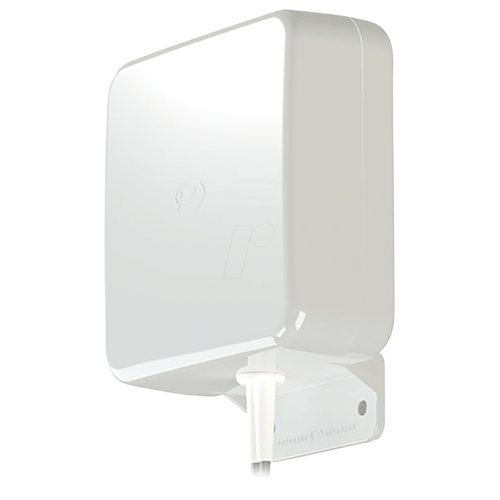

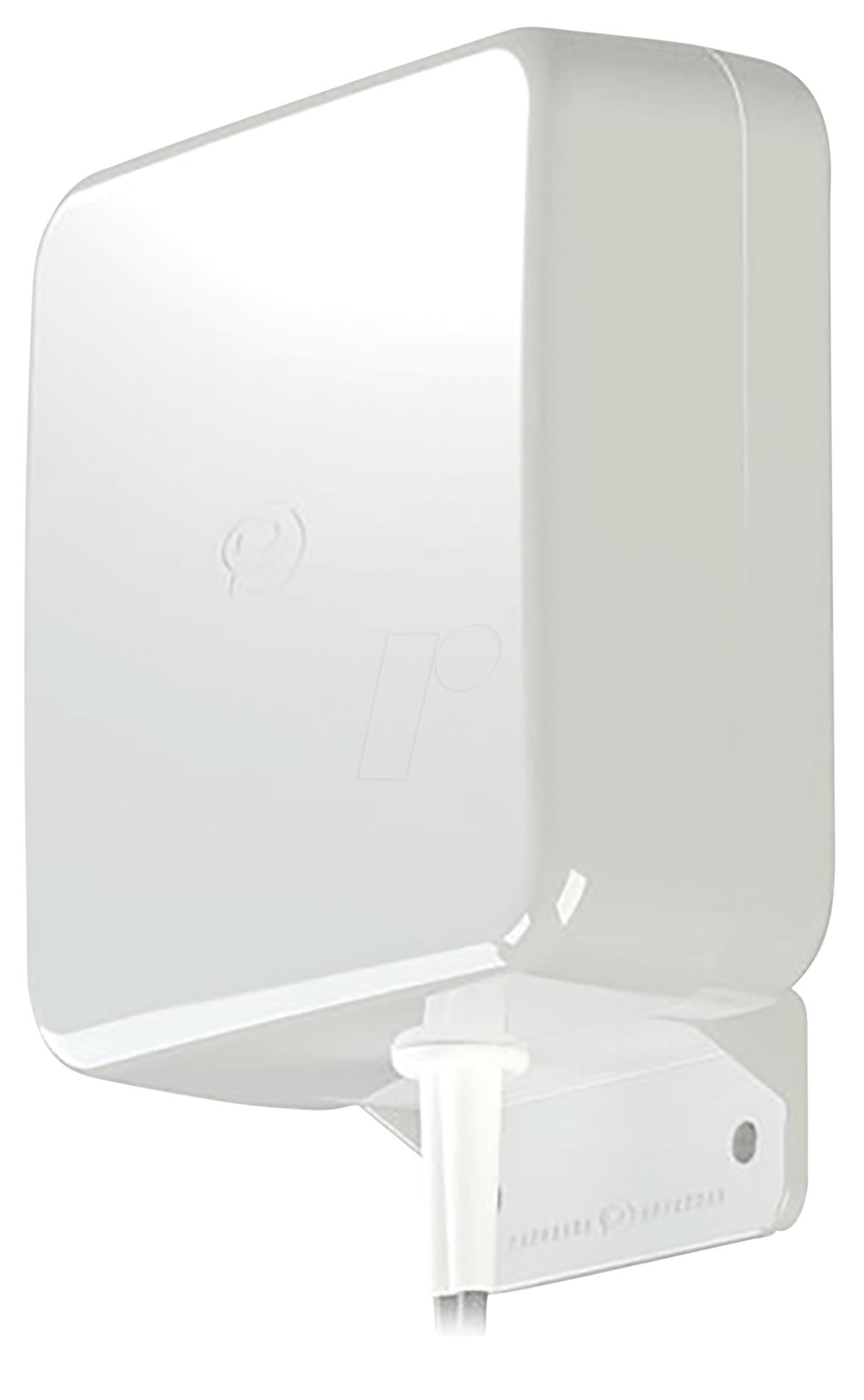

• Incorporating two separately fed, ultra-wideband elements in a single housing, it provides a client-side 2x2 MiMo antenna system for the networks of today and tomorrow. With between 2-5dBi gain in the range 698-3800MHz, the WMMG gives a great performance, whilst maintaining a wide beam pattern which is ideal for metro and urban areas.

• The rugged, weatherproof housing is designed for wall or mast mounting and hardware is provided. A desk stand is also included to enable the antenna to be positioned on a window sill if preferred.

• The antenna is supplied with an integral “twinned” CS29 coaxial cable. WMMG-7-38-5SP version has 5m length, fitted with sma plug connectors for a simple ‘plug & play' installation. WMMG-7-38-03NJ version has 30cm length, fitted with N socket connectors, which enables the use of lower loss cable types for longer runs.

• The WMMG is a cost-effective value-added product for network operators and service providers ensuring a stable network connection with improved data rates for subscribers, improving satisfaction and retention.



Specifications / Frequency

Network Compatibility	Yes/No	Gain
Telstra 4GX (700 MHz)		2dBi
Optus 4G+ (700 MHz)		2dBi
LTE Bands 12-14, 17, 28, 29, 44 (700 MHz)		2dBi
Telstra Next-G™ (850 MHz)		2dBi
Vodafone 4G+ (850 MHz)* *Please check Vodafone Coverage Map		2dBi
Optus Regional 3G (900 MHz)		2dBi
Vodafone Regional 3G (900 MHz)		2dBi
Telstra/Optus/Voda 4G (1800 MHz)		5dBi
LTE Bands 2, 25, 35-37, 39 (1900 MHz)		5dBi
LTE Bands 1, 33, 34 (2100 MHz)		5dBi
All Carriers - Urban/Metro 3G (2100 MHz)		5dBi
Optus 4G TDD (2300 MHz)		5dBi
LTE-TDD Bands 40 (2300 MHz)		5dBi
802.11 b/g/n/ac WiFi (2400 MHz)		5dBi
LTE Band 41 (2500 MHz)		5dBi
LTE Bands 7, 38 (2600 MHz)		5dBi
Telstra 4GX Band 7 (2600 MHz)		5dBi
All Networks 5G (3500MHz)		4dBi

Electrical Specifications

• Frequency Range: 698-960 / 1710-2700 / 3400-3800 MHz

• Input Impedance: 50 Ω

• VSWR: <2:1

• Efficiency (Excluding Cable Loss): >50%

• Element Isolation: >20 dB

• Radiation: Hybrid

• Maximum Power: 20 Watts

Mechanical/Environmental Specifications

• Construction Material : ASA

• Cable: 2 x CS29 5m or                         2 x CS29 0.3m

• Input Connector: 2x SMA Male or        2 x N Female

• Temperature: -30 °C to +80 °C

• Weight: 950g (excludes bracket)

• Dimensions: 155 x 155 mm (L x Ø)

• Fixing: Wall mount / Mast mount / Desk mount

• Mounting Pole Ø: 20-50 mm

• Rated to IP65

Read More

• Specification Sheet

• Installation Instructions
