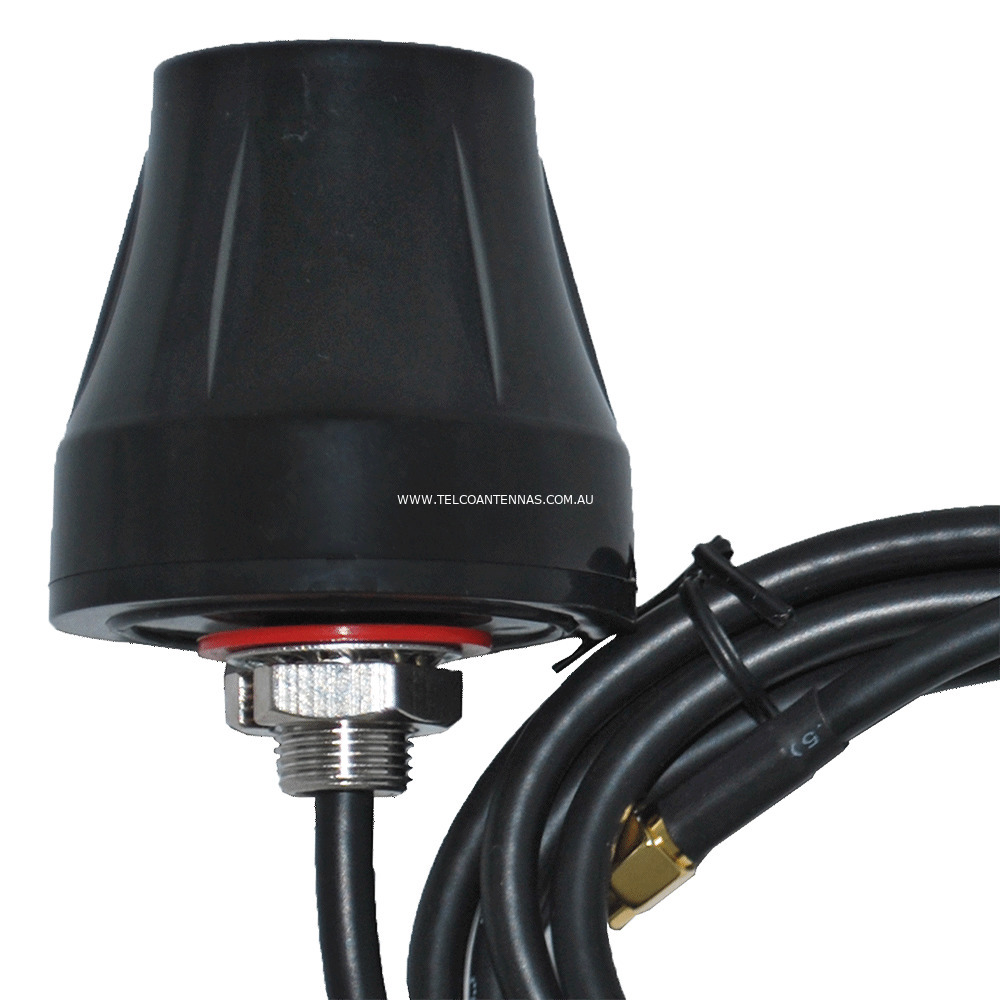

Taoglas Olympian G30 Low Profile Mobile & WiFi Antenna



Key Features



  • Wideband 700 to 2800 MHz

  • Low profile 48 mm black ABS construction

  • IP67 ingress proof

  • Compact unobtrusive form factor

  • M12 Stud Mounted

  • 2150 mm CFD-200 with SMA Male connector.



Usage



  • The G30 Olympian is a high performance steel thread-mount wideband 2G/3G/4G/WiFi antenna for external use on vehicles and outdoor assets worldwide

  • Omni-directional high gain across all bands ensures constant reception and transmission

  • Durable UV resistant ABS housing is discrete and resistant to vandalism

  • At only 48 mm height it complies with the latest EU height restrictions directives for roof-mounted objects

  • This antenna is mounted on metal and plastic structures and is locked from the inside of the structure by a nut

  • Adhesive foam at the base provides a watertight seal to the mounting structure.



Specifications / Frequency



Network Compatibility
Yes/No
Gain
Telstra 4GX (700 MHz)
compatible
1.2 dBi
Optus 4G+ (700 MHz)
compatible
1.2 dBi
Telstra Next-G™ (850 MHz)
compatible
1.2 dBi
Vodafone 4G+ (850 MHz)
compatible
1.2 dBi
Optus Regional 3G (900 MHz)
compatible
1.2 dBi
Vodafone Regional 3G (900 MHz)
compatible
1.2 dBi
Telstra/Optus/Voda 4G (1800 MHz)
compatible
3.2 dBi
802.11 b/g/n/ac WiFi (2400 MHz)
compatible
1.5 dBi
Telstra Metro 4GX (2600 MHz)
compatible
2.5 dBi



Electrical Specifications



  • Frequency Range: 698-960 MHz / 1710-2170 MHz / 2400-2483 MHz / 2500-2800 MHz

  • Input Impedance: 50 Ω

  • VSWR: <3.0:1

  • Vertical Beamwidth: See specification sheet

  • Radiation: Omnidirectional

  • Maximum Power: 5 Watts



Mechanical/Environmental Specifications



  • Construction: Black ABS radome, Nickel plated steel

  • Cable: 2.15 m CFD-200

  • Connector: SMA Male

  • Thermal Shock: -40 °C to +85 °C

  • Weight: 0.066 kg

  • Dimensions: 29 x 49 mm (H x Diameter)

  • Mounting: 18 mm thread stud



Read More





(G30.B.2155111)

SKU G30.B.2155111
Brand Taoglas
Shipping Weight 0.0450kg
Shipping Width 0.120m
Shipping Height 0.060m
Shipping Length 0.120m
Shipping Cubic 0.000864000m3
