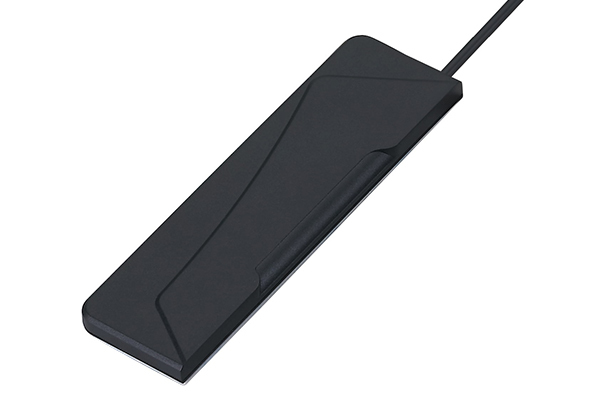

Apple iPhone Xs Patch Lead



Key Features



  • Passive Induction connector

  • Flexible 1m RG174 cable

  • SMA Male connector (supplied with adaptor to FME Female or SMA Female).



Additional



  • To provide you with the best performing passive antenna connection, we ran a series of mini-patch antennas through a number of tests and determined the Taoglas Phoenix antenna as the hands-down winner

  • As with all passive antennas, the patch must be aligned with the phones internal antenna which requires trialling a number of different positions

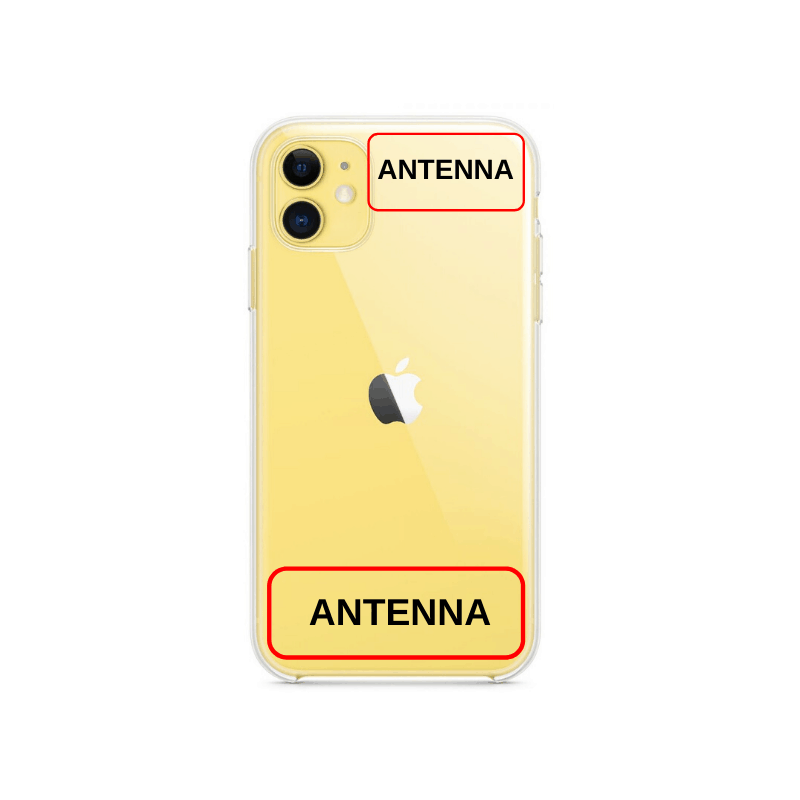

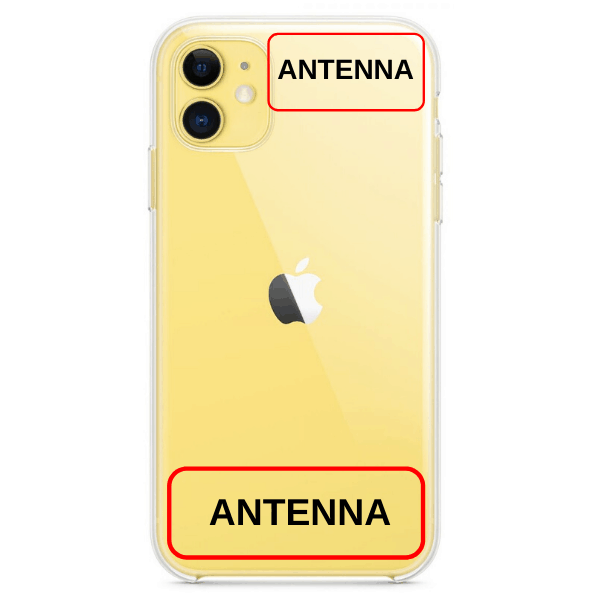

  • On most handsets we find placing the patch horizontally, either up the top or the bottom against the back.



What does a passive patch lead do?



  • Despite not having an external antenna port, this phone may benefit from an external antenna by using a passive patch lead at reduced performance

  • This type of patch lead has a pad containing a specially designed coil of wire and uses the principle of electromagnetic induction to enable signal to re-radiate from the pad to the phones internal antenna

  • Typically, users' experience anywhere from 5-10dB of signal loss depending on the design of the mobile phone, and the placement of the passive pad

  • To function effectively the pad must be placed directly on top of the phone's internal antenna

  • An external antenna is used to increase signal strength and quality - this results in faster mobile internet access, increased usable range from a cell tower, improved voice quality and reduced call drop-outs

  • For more information please see our Guide to Antenna Cables and Connectors



A heads up!



  • Passive patch leads use a generic design - they consist of a coil of wire that acts as a small antenna - this same design is used for all phone brands

  • Passive patch leads will never work as well as a direct connecting patch lead (i.e. one that has a metal-on-metal transfer of signal)

  • In comparison, a fitted phone cradle has a much larger metal coil that is specifically designed to match the phones internal antenna, providing far better performance

  • We offer this product as a cheaper alternative, but have had mixed results with its success. For the best results we highly recommend purchasing of a cradle designed specifically for your phone.



Specifications / Frequency



Electrical Specifications



  • Frequency Range: 700-800MHz / 824-960MHz / 1575.42MHz / 1710-2170MHz / 2400-2800MHz

  • Input Impedance: 50Ω

  • VSWR: <2.5:1

  • Radiation: Omnidirectional

  • Maximum Power: 50Watts



Mechanical/Environmental Specifications



  • Construction: UV Stabilised PC/ABS

  • Cable: 1m RG174

  • Connector: SMA Male provided with an Adapter

  • Thermal Shock: -40°C to +85°C

  • Weight: 40g

  • Dimensions: 105 x 7.7 x 30mm (L x W x H)

  • Mounting: Glass or Plastic
