Patch lead suit Huawei B800 4G WiFi Router


Key Features


  • Connect your modem (SMA) to an external antenna (FME) - 15cm of RG316 cable

  • Helps boost signal strength and speed of your 4G LTE device

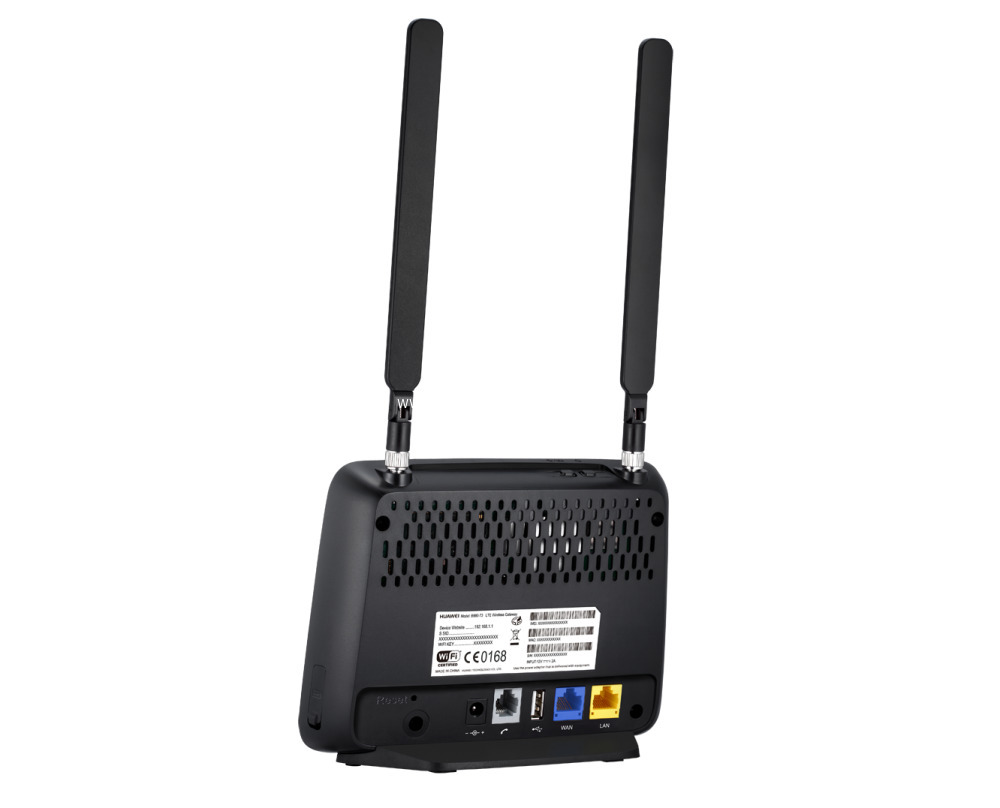

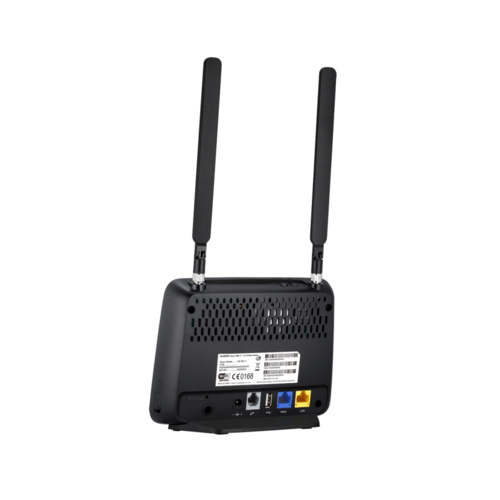

  • The Optus B800 mobile broadband router has two antenna sockets - use the left connector when connecting only one antenna

  • We recommend the use of dual antennas when on the 4G network

  • If you'd prefer an inline SMA to FME adaptor, click here


Why use an external antenna?


  • Next time you're out-and-about look around you - every day thousands of Australians use external antennas to enjoy fast, uninterrupted wireless broadband internet

  • If you're in a rural, hilly, low signal area, or you can't get a good signal indoors, there's no need to tear your hair out over slow mobile broadband crashing or dropping out half way, when an external antenna is often all you need.


What does a patch lead do?


  • Most antenna cables terminate with a standard connection, most commonly a female 'FME' connector

  • To plug an antenna into your phone or wireless modem, you need a short cable that acts as a conversion from the FME connector to the device-specific connector that will plug into the antenna port on your device.




SMA male connector FME male coaxial connector
Male SMA Connector
Male FME Connector

Specifications / Frequency


Electrical Specifications


  • Resistance: 50Ω

  • Frequency Range: DC-3GHz

  • Working Voltage: 335V RMS

  • Withstand Voltage: 1000V

  • RMS Insertion Loss: <0.4dB/3GHz VSWR: <1.25:1


Mechanical/Environmental Specifications


  • Cable: 150mm RG316

  • Durability: >500 cycles

  • Body Material: Brass

  • Plating Material: Nickel/Gold

  • Pin/Socket Contact: Beryllium

  • Pin/Socket Plating: Gold/Gold

  • Insulator: PTFE Operating Temperature: -55° to 155° C
