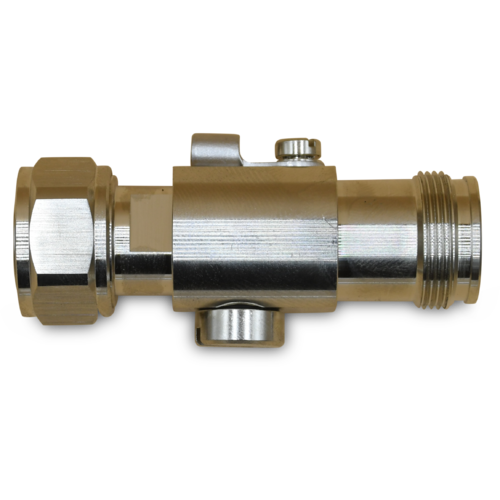

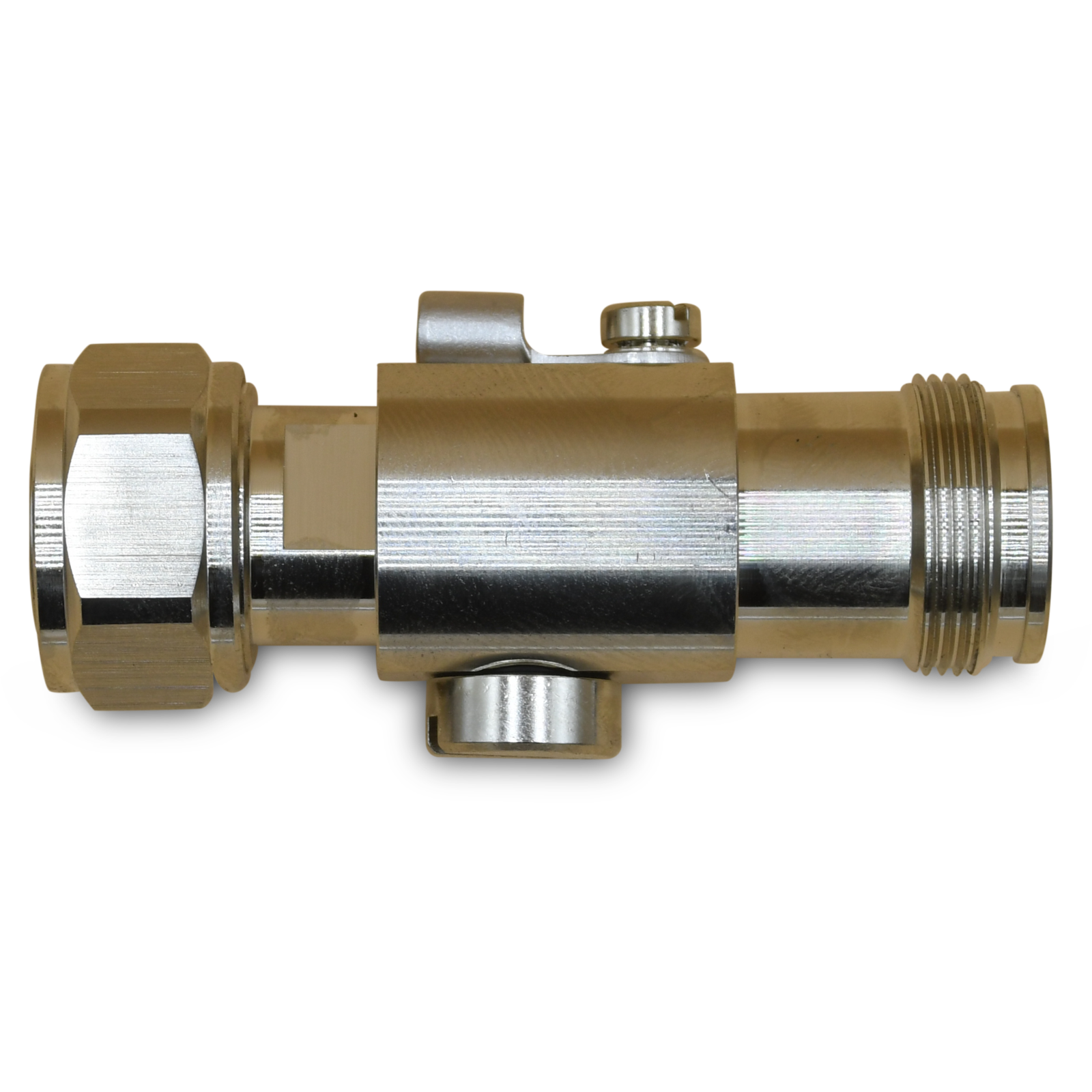

Phaseblocker Inline (Male to Female) Lightning Arrester



Key Features



  • 4.3-10 Male to 4.3-10  Female Connectors

  • For devices operating 0-40W

  • Bi-directional protection

  • DC Pass

  • Protect your antenna and device from dangerous electrical surges.



Usage



  • Gas tube lightning protection with excellent VSWR and superior RF performance characteristics for equipment operating DC to 6GHz with up to 40W RF power

  • Male to Female arresters designed for installation in-line between an antenna and feeder cable

  • By installing at the tower-top position, this arrester helps protect not only the end user equipment, but the cabling itself

  • When feeder lengths exceed 10-15m vertically a second arrester is recommended at the equipment end of the cable to protect against parasitic coupling

  • Given the critical nature of remote communications, this high grade surge suppressor has been designed with safety as a priority

  • This device has a built-in gas-charging surge arrester element which discharges and grounds the surge the moment the surge voltage exceeds the pre-specified level

  • This device makes the actions of surge discharge and restoration repeatedly - no replacement necessary.



Specifications / Frequency



Electrical Specifications

  • Frequency Range: DC - 6GHz

  • Input Impedance: 50Ω

  • VSWR: <1.2:1

  • DC-6GHz Insertion Loss: <0.4dB

  • DC-6GHz Return Loss: >26dB

  • Power Rating: 0-40W

  • Sparkover Voltage: <90VDC

  • Voltage protection level @ 3kA (8/20us): <600V

  • Maximum Discharge Current: 10kA @ IEC 61000-4-5 8/20us waveform



Mechanical/Environmental

  • Construction: Nickel plated brass

  • Durability: >500 cycles

  • Connector: 4.3-10 Male to 4.3-10  Female Connectors

  • Temperature: -40 to +155ºC / 5 to 95% non-condensing

  • Environmental Protection Level: IP55

  • Weight: 155g

  • Dimensions: 64 x 26mm (L x Ø)



Applications

  • Cellular (GSM, UMTS, LTE)

  • WiMAX - 2.4 & 5.8GHz WiFi

  • ISM

  • UNII

  • Coaxial DC Pass Applications (Remote Amplifiers, LNA, etc)
