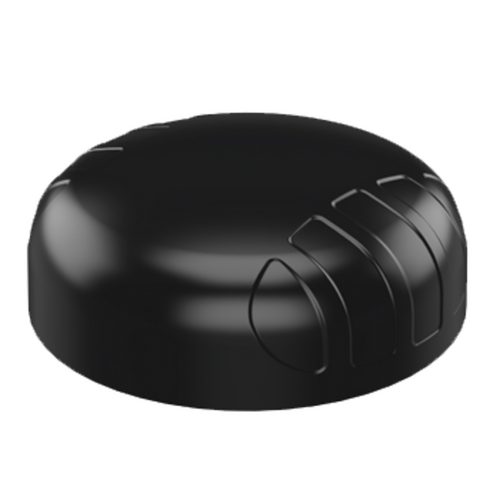

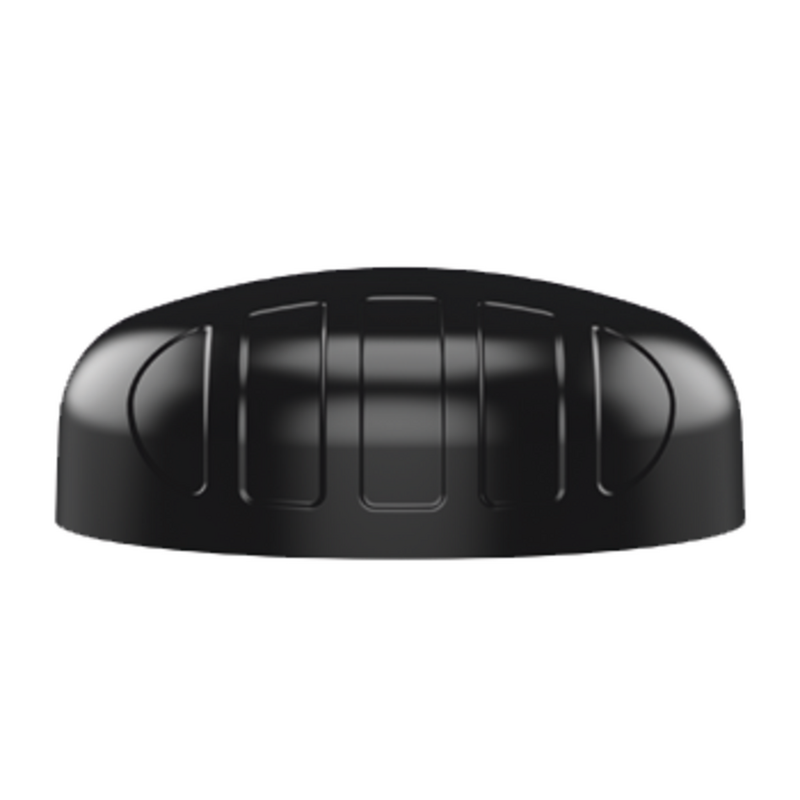

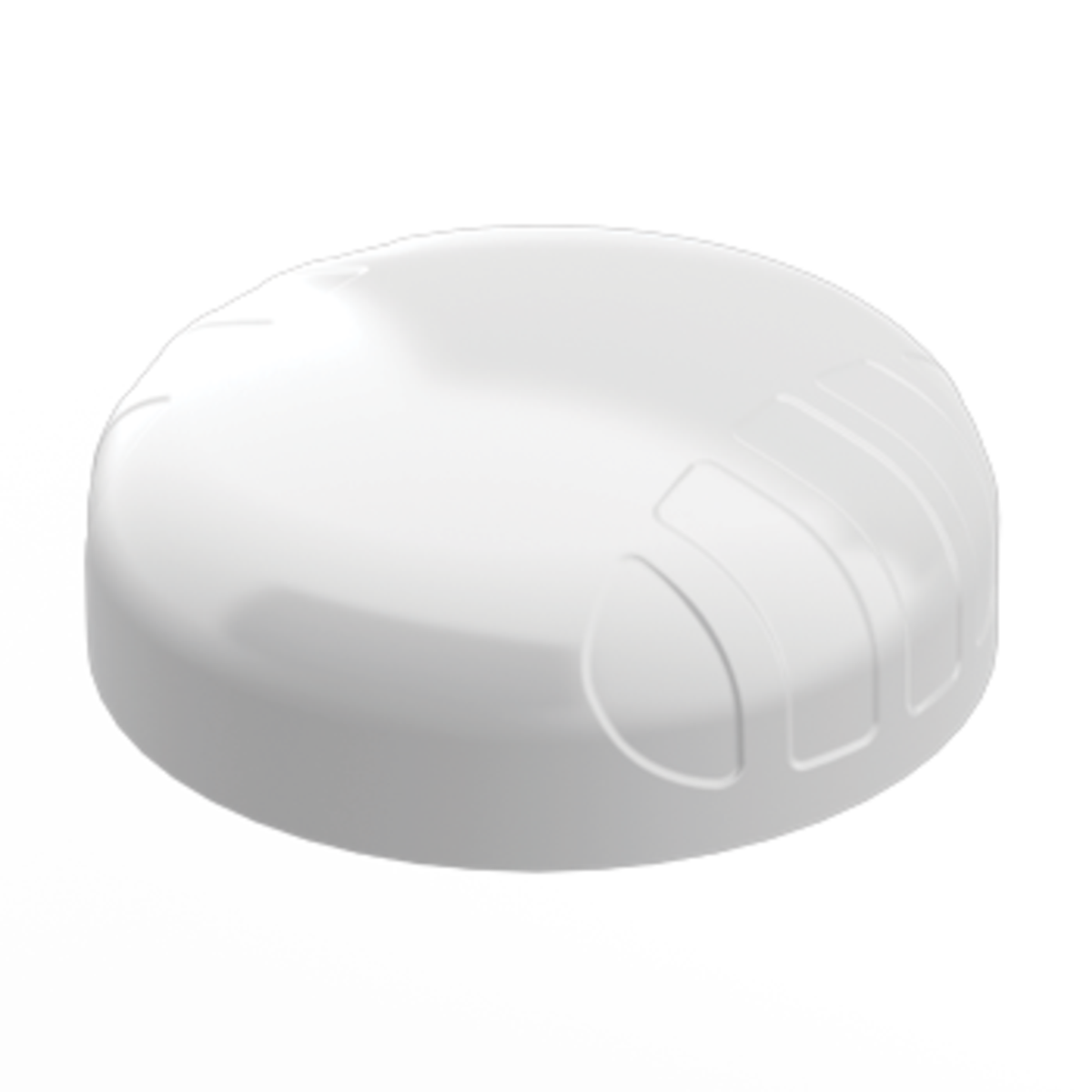

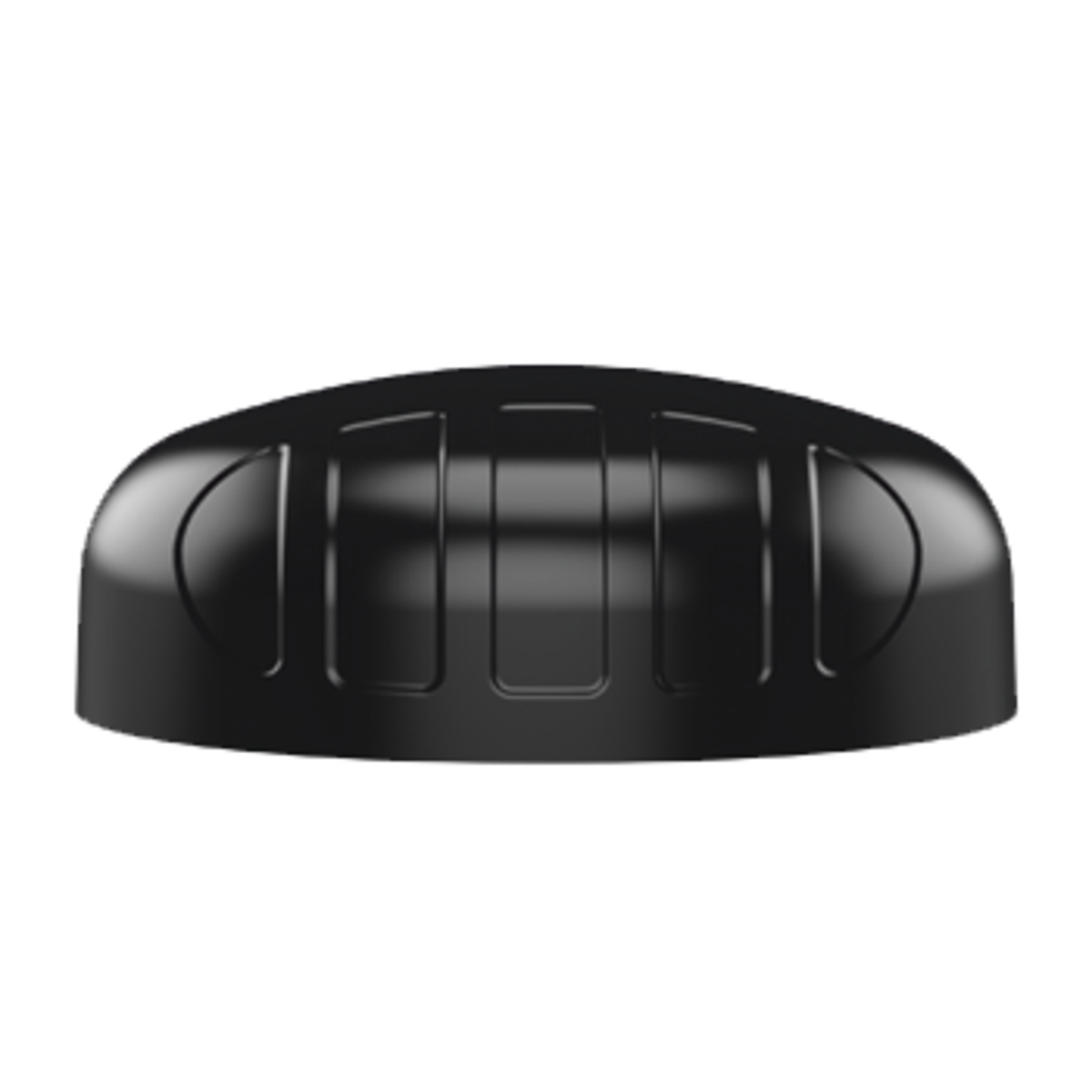

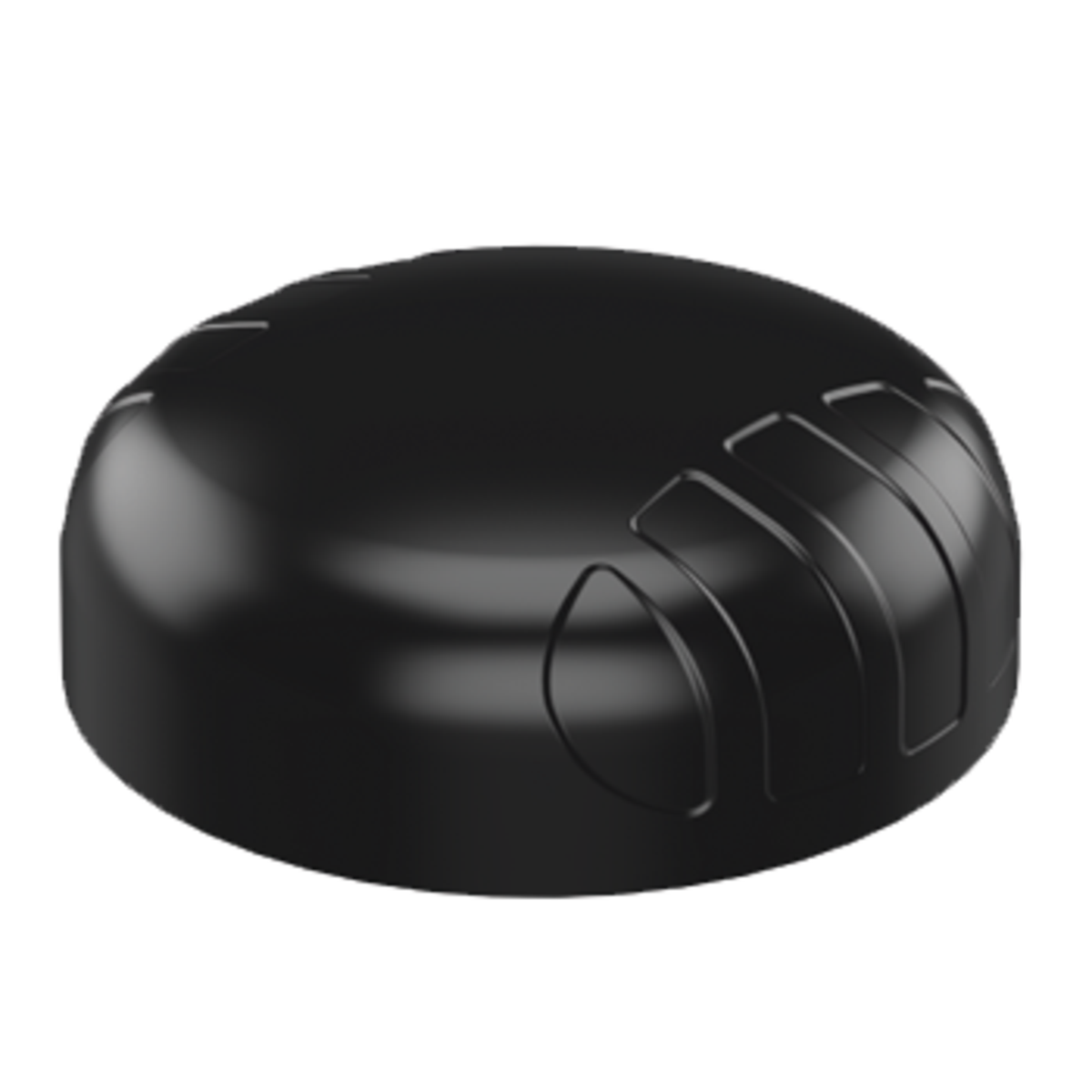

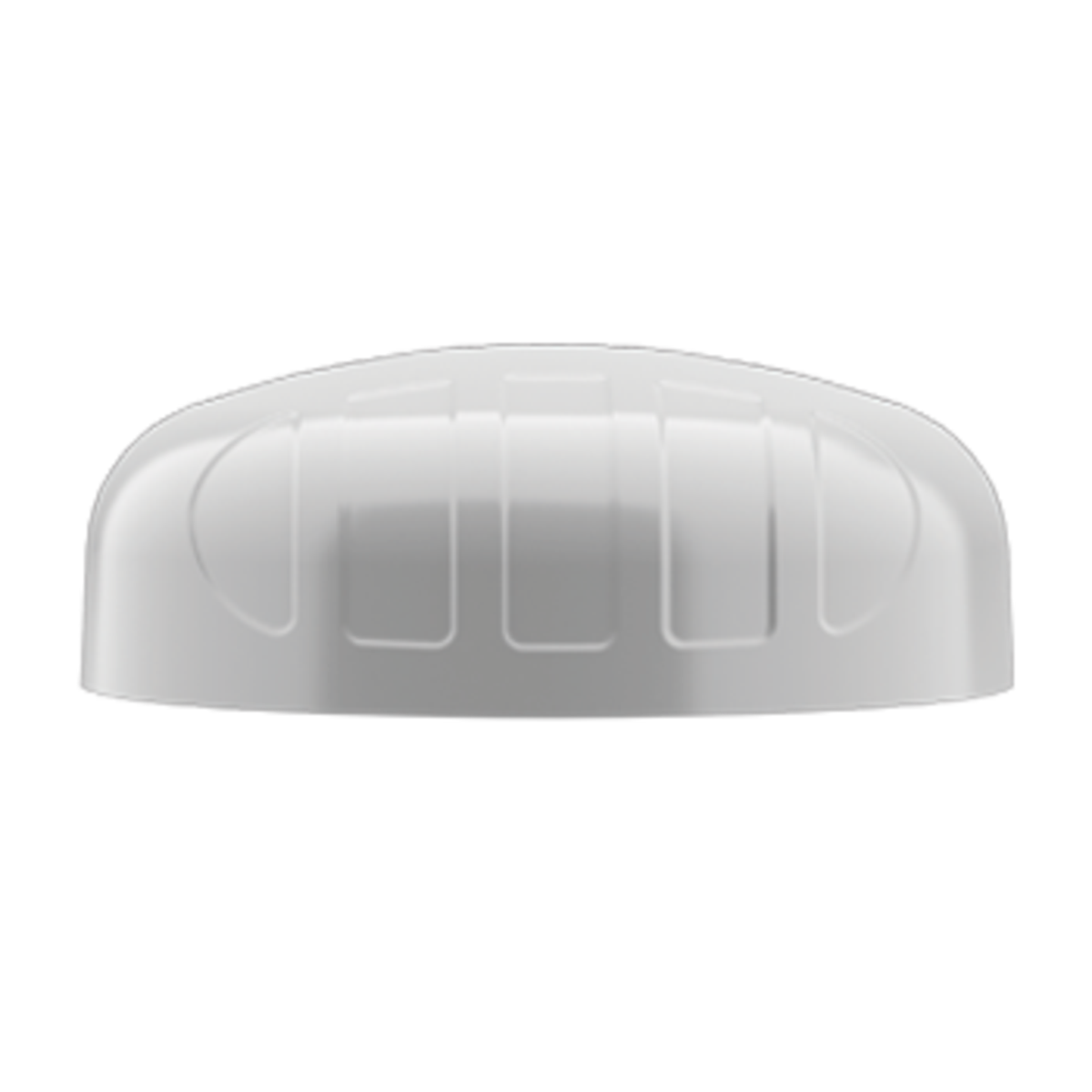

Poynting 2-in-1 5G/LTE 2x2 MIMO Transportation & IoT/M2M Antenna

Key Features

• 2-in-1 LTE high performance multi frequency antenna

• 2G/3G/4G/LTE/5G antenna

• LTE (2x2 MIMO)

• Wideband – covers wide frequency band, incl. 3.5 GHz CBRS band

• Robust, vandal resistant and waterproof (IP69K)

• Ideal for transportation, marine and IoT/M2M use

• Ultra-versatile mounting options for easy installation

Usage

• Poynting’s new PUCK range offers a small profile antenna for use in the IoT/M2M, Smart Meter, Smart Utilities, Transportation, Marine and the Agricultural/Farming markets.

• The PUCK-2 consists of a 2-in-1 antenna system within a single housing, featuring 2x2 MIMO LTE antennas (for 2G/3G/4G/5G) that cover the 617 to 4200 MHz band which includes the most popular international LTE bands.

• The PUCK exceeds the performance of many competitors due to the attention to design of this high-performance antenna.

• The radiation patterns of all radiating elements provide an excellent balance between omnidirectionality, pattern diversity and good radiation abilities at the desired elevation which is often overlooked in such a small size antenna.

• Despite its small size, this antenna provides excellent performance especially at the higher frequency bands where performance is critical for LTE throughput and connection stability.

• This antenna is designed so that both the LTE ports are connected to the router/device to ensure the best performance.

Typical Applications

• HD video over LTE

• First responder and emergency services

• Intelligent transport systems

• Internet of Things (IoT market)

• High definition video broadcast systems

• Wireless LTE MIMO M2M devices

• Digital signage.

Network Compatibility	Yes/No	Gain
Telstra 4GX (700MHz)		0Bi
Optus 4G+ (700MHz)		0dBi
Telstra Next-G™ (850MHz)		0dBi
Vodafone 4G+ (850MHz)* *Please check Vodafone Coverage Map		0dBi
Optus Regional 3G (900MHz)		0dBi
Vodafone Regional 3G (900MHz)		0dBi
Telstra/Optus/Voda 4G (1800MHz)		5dBi
All Carriers - Urban/Metro 3G (2100MHz)		5dBi
Telstra 4GX (2600MHz)		5dBi
All Carriers 5G 3500MHZ		6dBi

Specifications / Frequency

Electrical Specifications

• Frequency Range: 617-960MHz / 1427-1517MHz / 1710-2700MHz / 3400-4200MHz

• Impedance: 50Ohm

• VSWR: <2.5:1

• Polarisation: Linear Vertical

• Feed Power Handling: 10W

Mechanical/Environmental Specifications

• Construction: PC+ABS (Halogen free) (Black) / UV Stable ASA (White)

• Cable: 2m RTK-031

• Connector: 2x SMA Male

• Dimensions: Ø99.3 mm x 36 mm

• Weight: 376g

• Ingress Protection Rating: IP69K

• Mounting Type: Ø20 Threaded Spigot, Pole, Wall, Surface and Magnetic mount

• Humidity: Non-condensing 65°C 95% RH

• Wind Survival: ≤220 km/h

• Temperature Range (Operating): -40°C to +80°C

• Environmental Conditions: Outdoor/Indoor

• Water Ingress Protection Ratio/Standard: IP69K

• Salt Spray: MIL-STD 810G/ASTM B117

• Operating Relative Humidity: Up to 98%

• Storage Humidity: 5% to 95% - non-condensing

• Storage Temperature: -40°C to +80°C

• Enclosure Flammability Rating: UL 94-HB

• Impact Resistance: IK 10

• Product Safety & Environmental: Complies with CE and RoHS standards
