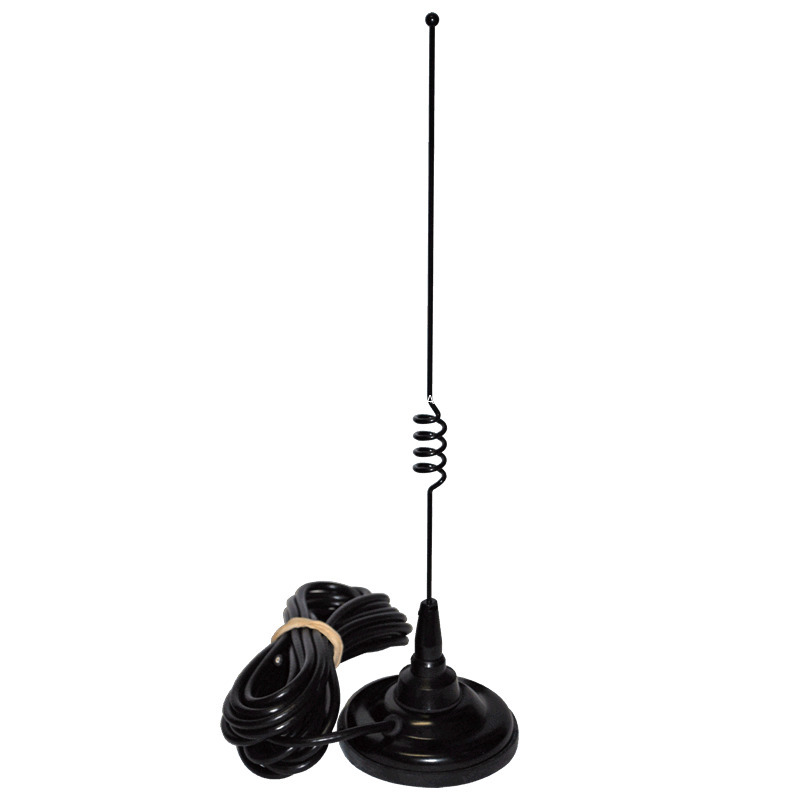

RFI SW1486 3dBi Magnetic Base Mobile/M2M Antenna



Key Features



  • Roof/enclosure top mounting for optimum performance

  • Ideal integrated antenna for ICS, M2M devices

  • Black finish will not scratch or peel

  • Ground independent

  • Limited lifetime warranty.



Usage



  • Indoor & Urban M2M Environments - this low gain 3dBi Telstra Next-G antenna is designed for operation of cellular devices in highly multipath environments, such as indoor and urban environments

  • The wide vertical and omnidirectional horizontal radiation patterns allow your receiver to pick up heavily varied transmission paths

  • Buildings, walls, and other obstructions create a multipath propagation environment - transmissions that bounce off walls or trees at an acute angle cause signal echos

  • Having travelled a further distance than a straight line transmission, these signals are delayed, and to a simple receiver would be nothing more than interference. However thanks to clever technology used in cellular communications, multipath signals can recovered by your modem's RAKE combiner

  • A RAKE receiver consists of a series of sub-radios which read the incoming signal at different delay periods (typically one chip in WCDMA) and then combined to result in a higher quality signal

  • Roof mount antennas are recommended by system operators, mobile manufacturers and system designers as they provide the strongest reception and most reliable performance of any cellular mobile antenna

  • At the heart of each RFI SW1486 antenna is the MB14 base

  • The base (SW1486) is intricately constructed, much like a coaxial connector

  • The precisely controlled termination is reliable electrically and mechanically provides a superb match resulting in a broad bandwidth.



Specifications / Frequency



Network Compatibility
Yes/No
Gain
Telstra Next-G™ (850MHz)
compatible
3dBi
New Vodafone Network (850MHz)* *Please check Vodafone Coverage Map
compatible
3dBi



Electrical Specifications



  • Frequency Range: 824-896MHz

  • Input Impedance: 50Ω

  • VSWR: <1.9:1

  • Radiation: Omnidirectional Maximum Power: 10Watts



Mechanical/Environmental Specifications



  • Construction: Heavy duty black magnetic base with rubber lining, black 17-7PH stainless whip

  • Cable: 5M low loss 9006 cable (unterminated)

  • Connector: TNC Male crimp supplied

  • Weight: 0.80kg

  • Dimensions: 90 x 350mm (Dia x H)
