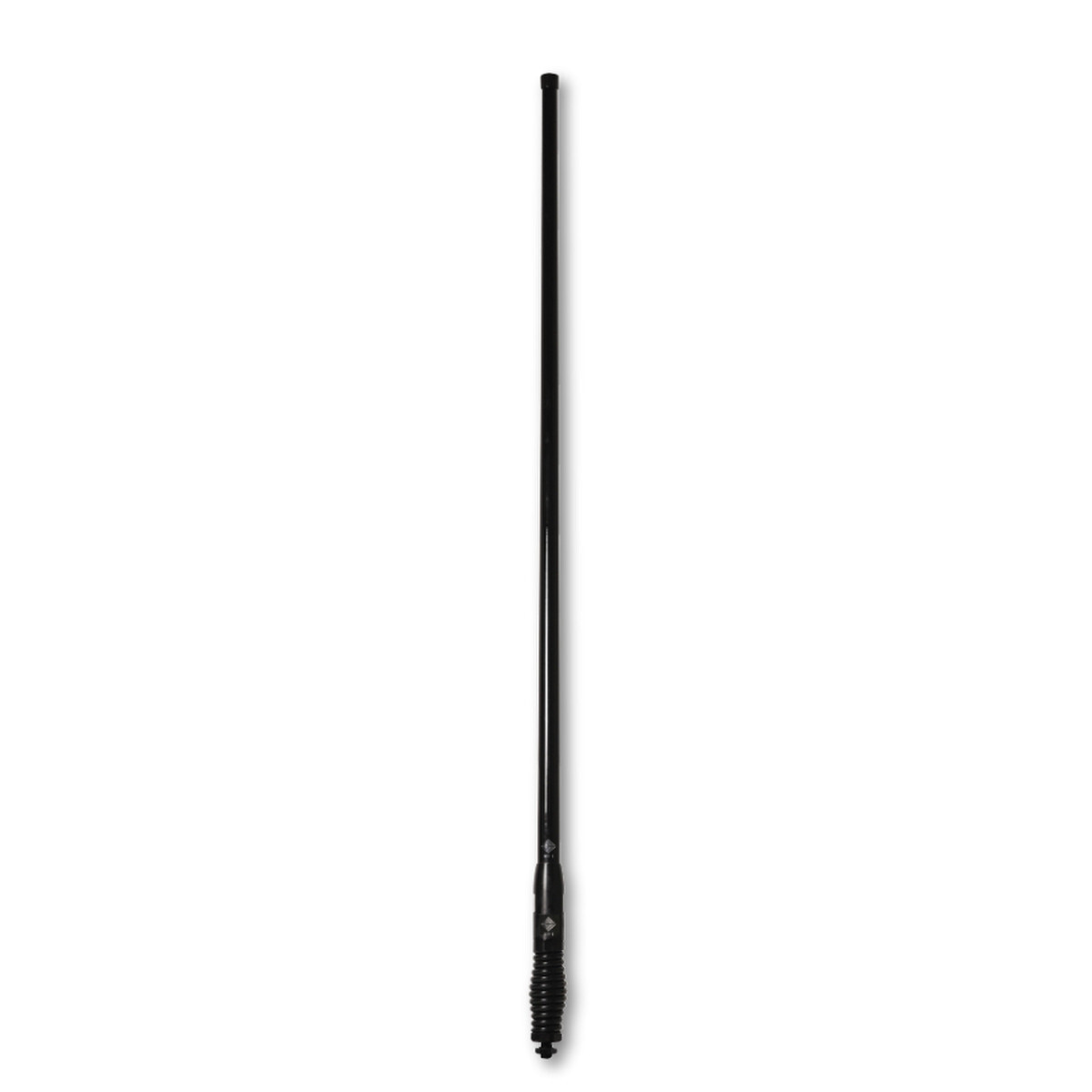

RFI CDQ5000 - Black with Long Radome Quick Removable Whip 5dBi UHF CB Antenna

CDQ5000-BL antenna is designed to match the same height

Key Features

• Height profile match with CDQ8197 cellular antenna.

• Patented PCB based Meander™ collinear design offering the ultimate in pattern and gain stability.

• 5 dBi gain across the full 477 MHz UHF CB band. - Q-Fit™ removable whip system for ease of removal in low height environments such as multi-story car parks, car wash’s or for security.

• Ground Independent

Usage

• The CDQ5000-BL employs the new Q-Fit® removable whip system for fast and simple removal when entering low height areas such as car parks or when using car washes.

• This antenna is supplied with a waterproof cap to ensure no water/dust ingress into the antenna connection when the whip is removed.

• With a heavy-duty electro polished stainless steel spring, the CDQ5000 can be installed on a number of mounting brackets and are ideal for installations in commercial vehicles, four-wheel drives and trucks.

Specifications / Frequency

Electrical Specifications

• Frequency Range: 477MHz

• Input Impedance: 50Ω

• VSWR: <1.5:1

• Polarisation: Vertical

• Radiation: Omnidirectional

• Vertical Beamwidth: 33 degrees

• Maximum Power: 25Watts.

Mechanical/Environmental Specifications

• Construction: Fibreglass radome, extra heavy duty stainless steel spring assembly

• Cable: 5m Cellfoil 9006 (RG58)

• Connector: FME Female with UHF adaptor

• Length: 1210mm

• Weight: 1.2kg

• Mounting hole diameter: 13mm.

Connection

• This antenna has a 5m cable that terminates with an FME Female connector

• The FME Female connector is a smaller 6mm connector which makes routing through the vehicle firewall easier than standard UHF connectors

• A UHF connector for attaching to your UHF radio is supplied.

• Please contact us if you would like a shorter length of cable, or a different connector, and we will customise this antenna for you.

Read More

• Specification Sheet
