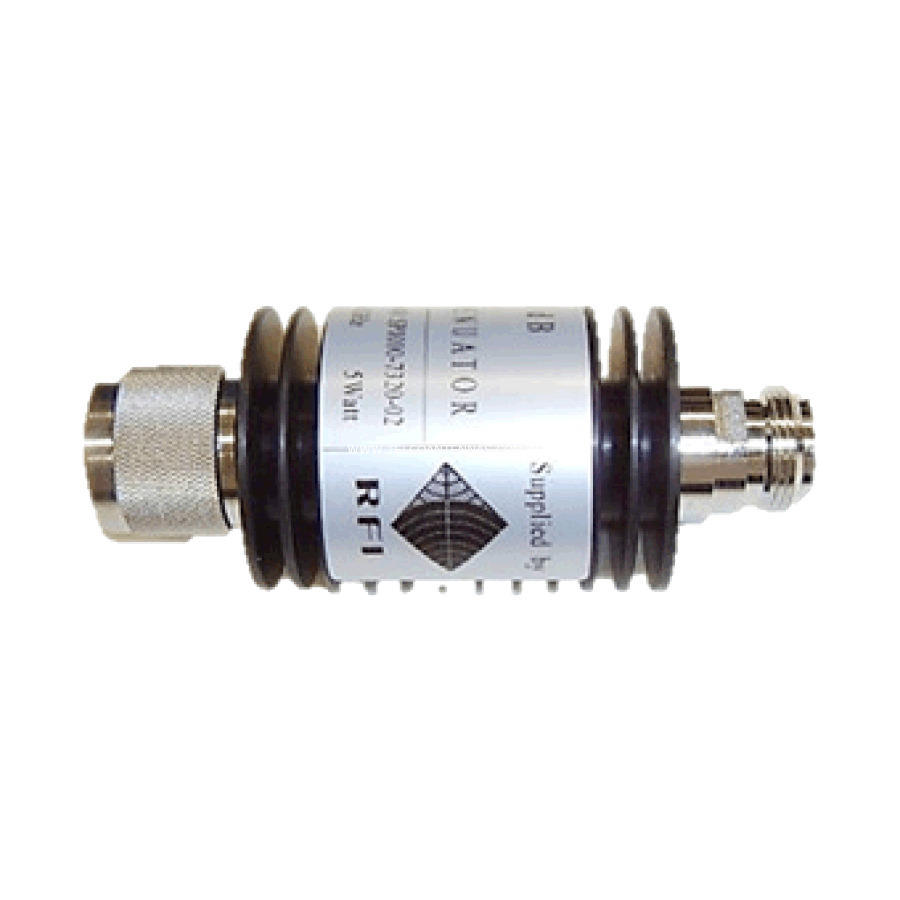

RFI Coaxial Attenuator - N M/F, 5W, 10 dB



Key Features



  • 5 Watt power rating

  • N Male to N Female connectors

  • DC to 2.5 GHz frequency range

  • Excellent Return Loss / VSWR across full DC to 2.5 GHz bandwidth.



Usage



  • RF attenuators are designed as general purpose attenuators to reduce signals to required levels

  • They are typically used in applications such as on the input of preamplifiers, test equipment, or as part of systems designs (such as bi-directional amplifiers) to prevent overload, control gain or to otherwise maintain signals levels within desired limits

  • This RFI 50 Ohm RF Coaxial In-Line Attenuator is used primarily in RF multicoupling and bench test and measurement applications, it has excellent return loss and temperature tolerances making it reliable and useful in most applications

  • It is air cooled through natural convection with conservative power to heatsink surface area power density factors.



Read More





(SP0000-7310-02)

SKU SP0000-7310-02
Brand RFI
Shipping Weight 0.0450kg
Shipping Width 0.050m
Shipping Height 0.080m
Shipping Length 0.280m
Shipping Cubic 0.000896000m3
