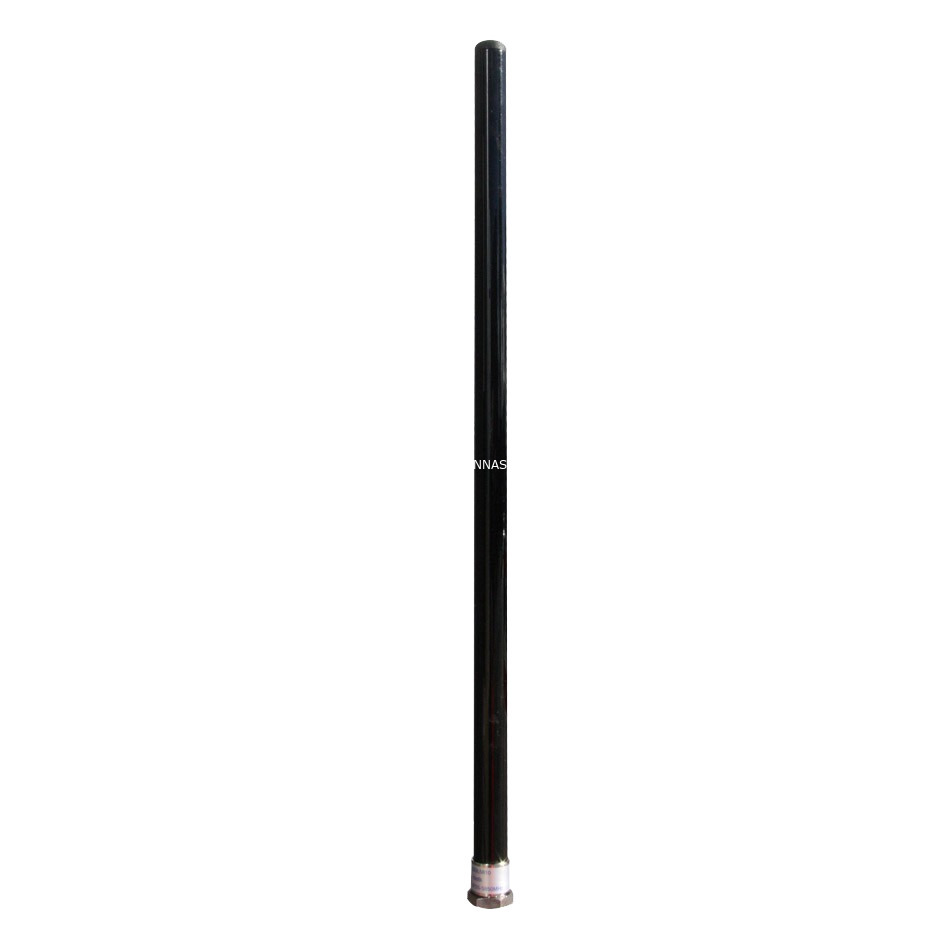

Stud Mount COL5810 5.8GHz Omnidirectional Antenna



Key Features



  • 5.8GHz ISM band - IEEE 802.11ac/n WLAN, ISM

  • Tightly controlled radiation patterns for optimum coverage

  • Small unobtrusive design

  • 13mm stud mount, 200mm cable tail (not pictured).



Usage



  • This rugged, stud mount 5.8GHz ISM band antenna series offers an omnidirectional broadcast pattern enabling optimum network configuration

  • The patented PCB design delivers superior pattern stability across the entire band avoiding inherent pattern tilting common in more traditional collinear designs

  • The UV stable fibreglass housing make this antenna the ideal choice in a wide range of industrial spread spectrum applications.



Specifications / Frequency



Network Compatibility
Yes/No
Gain
802.11ac/n WLAN (5800MHz)
compatible
10dBi
UNII-3 5.725GHz - 5.85GHz
compatible
10dBi



Electrical Specifications



  • Frequency Range: 5725-5850MHz

  • Input Impedance: 50Ω

  • Input Power: 5W

  • VSWR: <1.5:1

  • Vertical Beamwidth: 8°

  • Polarisation: Vertical

  • Radiation: Omnidirectional



Mechanical/Environmental Specifications



  • Construction: Black fibreglass collinear antenna with nickel plated stud assembly

  • Cable: 200mm Cellfoil 9006

  • Connector: N Female

  • Weight: 0.13kg

  • Height: 425mm

  • Mounting: 13mm Stud mount



Read more



















RFI wireless logo































(COL5810)

SKU COL5810
Brand RFI
Shipping Weight 0.0450kg
Shipping Width 0.080m
Shipping Height 0.080m
Shipping Length 0.600m
Shipping Cubic 0.003840000m3
