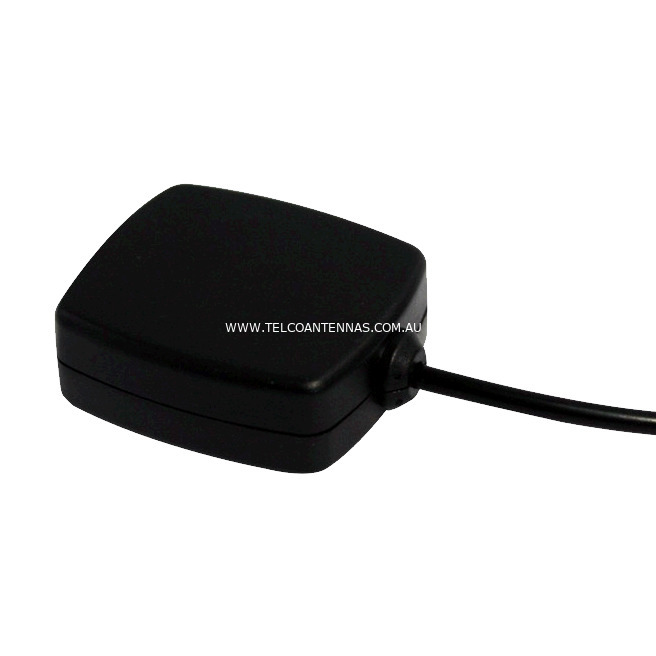

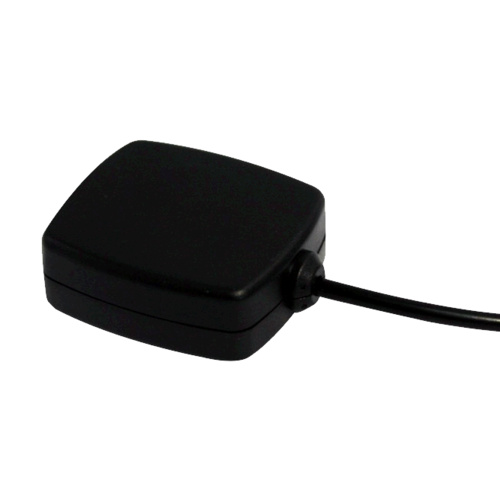

RFI Compact Active Boosted GPS Antenna



Key Features



  • 28dB active amplifier @ 5V

  • Magnetic or adhesive pad mounting

  • Unique LNA operation providing excellent gain and noise characteristics.



Usage



  • The RFI GPS series are high performance compact GPS antennas designed for automotive applications and a wide variety of OEM, system integrator and end user applications

  • They feature a unique low noise amplifier circuitry specifically for operation on RHCP GSP signals

  • This 25mm patch antenna is coupled with a 28dBi gain active amplifier which operates from 2.5DC to 12DC with a low 11mA consumption (at 2.5 VDC)

  • Enclosed in a UV stable, high impact, fully weatherised housing, with 5m of double screened low-loss RG174 type cable terminated with an MCX connector.



Specifications / Frequency



Network Compatibility
Yes/No
Gain
GPS (1227MHz / 1575MHz)
compatible
28dB (ACTIVE)



Electrical Specifications



  • Frequency Range: 1227MHz / 1575MHz

  • Input Impedance: 50Ω

  • VSWR: <1.2:1

  • Radiation: Omnidirectional



Mechanical/Environmental Specifications



  • Construction: Black polycarbonate radome

  • Cable: 5M RG174 type cable

  • Connector: MCX Male

  • Dimensions: 28.2mm (L) 21.2mm (W) 13.2mm (H)



(GPS3-5M-SMA)

SKU GPS3-5M-SMA
Brand RFI
Shipping Weight 0.5000kg
Shipping Width 0.180m
Shipping Height 0.060m
Shipping Length 0.190m
Shipping Cubic 0.002052000m3
