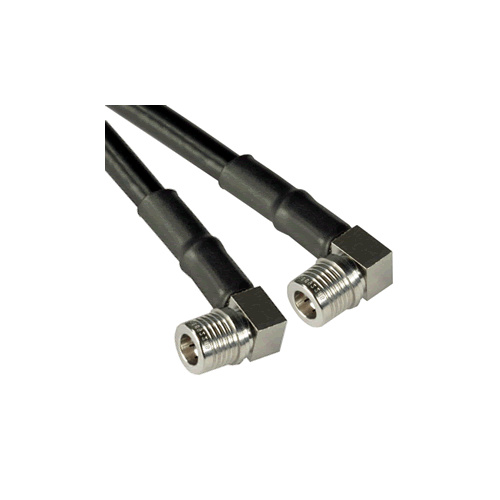

​1.5m LCU195 Right Angle QMA Male to Right Angle QMA Male Coaxial Cable



Key Features



  • DB-FLEX is our flagship subtype of LCU195 cabling, designed for maximum weather resistance and usability

  • LCU195 50Ω series cabling

  • Right Angle QMA (QSMA) Male (Plug) to Right Angle QMA (QSMA) Male (Plug)

  • DB-FLEX Stranded Copper Conductor

  • UV Stable rubberised TPFE Jacket.



Usage



  • Designed for Vodafone NodeB equipment

  • This cable is designed for special uses and should be purchased with caution

  • LCU195 DB-FLEX sports a 7-strand bare copper centre conductor which permits repeated bending and much greater flexibility, allowing an incredibly tight bend radius - similar to Times Microwave's LMR-195 UltraFlex

  • Both DB-FLEX and UltraFlex cables achieve this by trading off for a marginally higher per-metre loss, up from 0.36dB/m to 0.42dB/m @ 850MHz

  • DB-FLEX has a UV-stable TPE (Thermoplastic Elastomer) jacket designed for harsh outdoor environments while maintaining maximum flexibility and minimising plastic memory (for improved wall-cavity feeding)



Specifications / Frequency



Electrical Specifications



  • Resistance: 50Ω

  • Capacitance: 83.3pF/m

  • Signal Loss: 0.42dB/m @ 850MHz, 0.63dB/m @ 1800MHz

  • Frequency Range: DC-6GHz

  • Velocity of Propagation: 76%

  • Nominal Delay: 4.17ns/m

  • Voltage Withstand: 1000Volts DC

  • Peak Power: 2.5kW



Mechanical/Environmental Specifications



  • Weight/100m: 3.0kg

  • Operating Temperature: -40° ~ +85°C

  • Minimum Bend Radius: 12.7mm

  • Conductor Material: Seven Strand Solid Copper (0.94mm)

  • Insulating Material: Foam PE (2.79mm)

  • Outer Shield Material:

  • (1) Bonded Aluminium Polyester Tape 100% Coverage (2.95mm)

  • (2) Tinned Copper Wire 88% Coverage (3.53mm)

  • Outer Jacket Material: TPE Weather & UV Resistant (4.95mm ±0.15mm)



Read More





(195-QMAMRA-3)

SKU 195-QMAMRA-3
Shipping Weight 0.1000kg
Shipping Width 0.050m
Shipping Height 0.050m
Shipping Length 0.195m
Shipping Cubic 0.000487000m3
