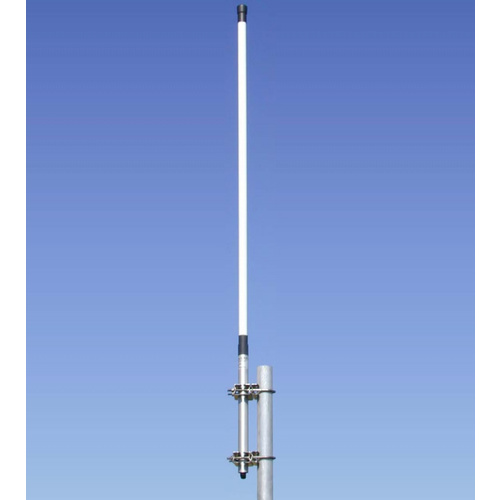

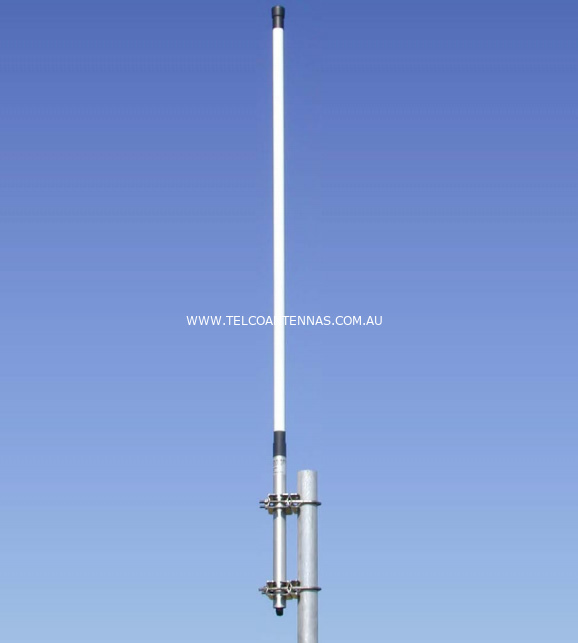

ZCG Scalar Air Band Coaxial Dipole Antenna



Key Features



  • Lightweight weatherproof aluminium construction

  • Omnidirectional 360° radiation pattern

  • Broad 46° vertical beamwidth

  • Stainless steel mount tube

  • Made to order - specify any 3% of 118-136MHz when ordering.



Usage



  • The B14 and B18 omnidirectional coaxial dipoles are an effective and economical air band base station antenna

  • For use in the 118 to 136 MHz frequency range, specify any 3% bandwidth you require and your dipole will be manufactured and tuned accordingly at better than 1.5:1 VSWR

  • At the lowest frequency 118MHz the coaxial dipole will stand 3 metres tall

  • When manufactured for higher frequencies, the fibreglass radome height reduces slightly

  • An N-Female connector rated for up to 100 watts input power is located at the base of the mount tube

  • Mounting clamps, coaxial feeder cable, connectors and other accessories are all available separately to complete the installation.



Specifications / Frequency



Network Compatibility
Yes/No
Gain
Air Band (118-136MHz)
compatible
2.15dBi (0dBd)



Electrical Specifications



  • Frequency Range: Specify 3% of 118-136MHz

  • Input Impedance: 50Ω

  • VSWR: <1.5:1 (better than 15dB)

  • Polarisation: Vertical

  • Radiation: Omnidirectional

  • Maximum Power: 250Watts.



Mechanical/Environmental Specifications



  • Construction: Aluminium internal radiators, fibreglass radome, stainless steel mount

  • Cable: none

  • Connector: Integrated N Female

  • Maximum Height: 3m (at 118MHz)

  • Weight: 1.9kg

  • Wind Load at 160kph: 6kg, 0.08 kN

  • Mounting: None supplied, 2x TF1SS clamp recommended

    • must be mounted at least 2m away from any other vertical structure for omnidirectional performance.





Connection



  • This antenna has an integrated N Female connector at the base of the mounting tube

  • Cable is not supplied.



N Flange panel mount connector



N Female Connector [pictured]



Important



  • This item is not always stored at our Queensland warehouse, however it is available within 24-48 hours from order.
