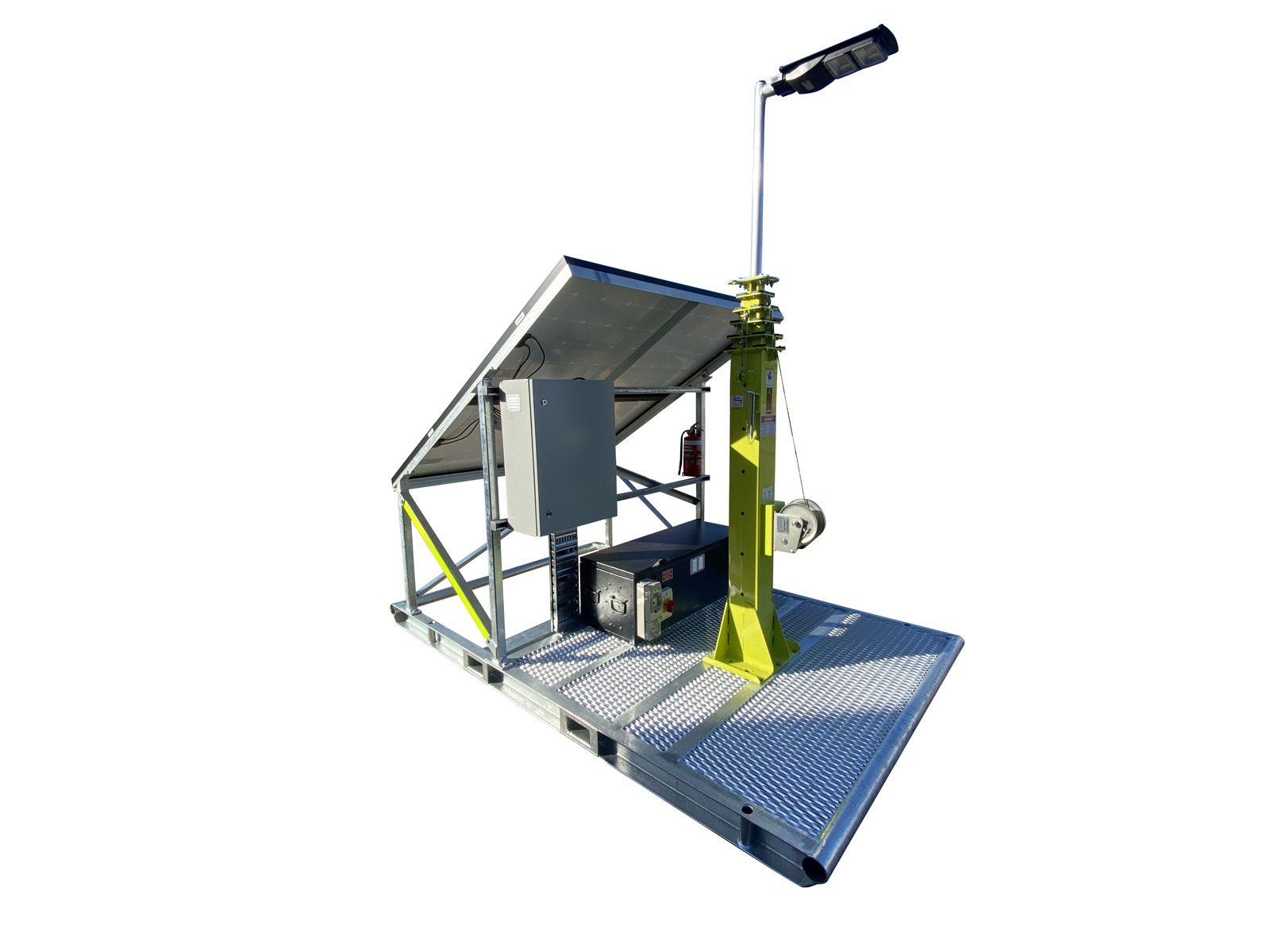

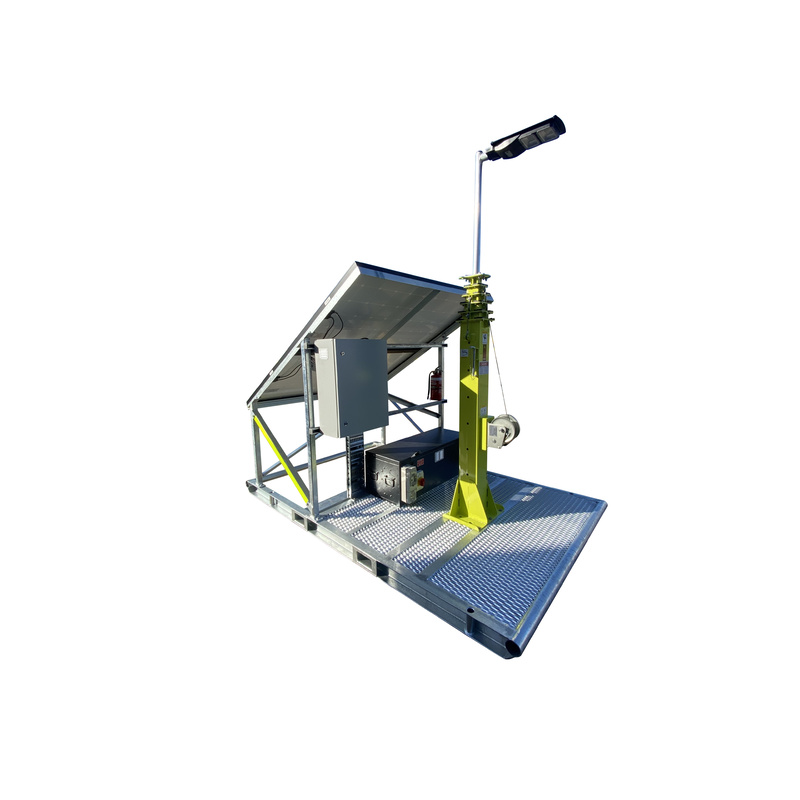

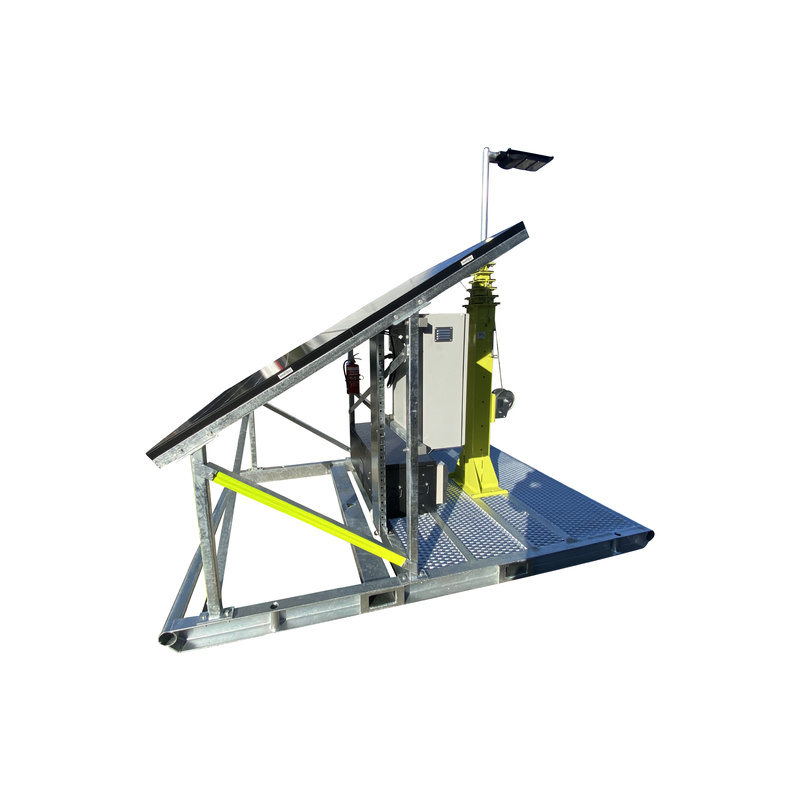

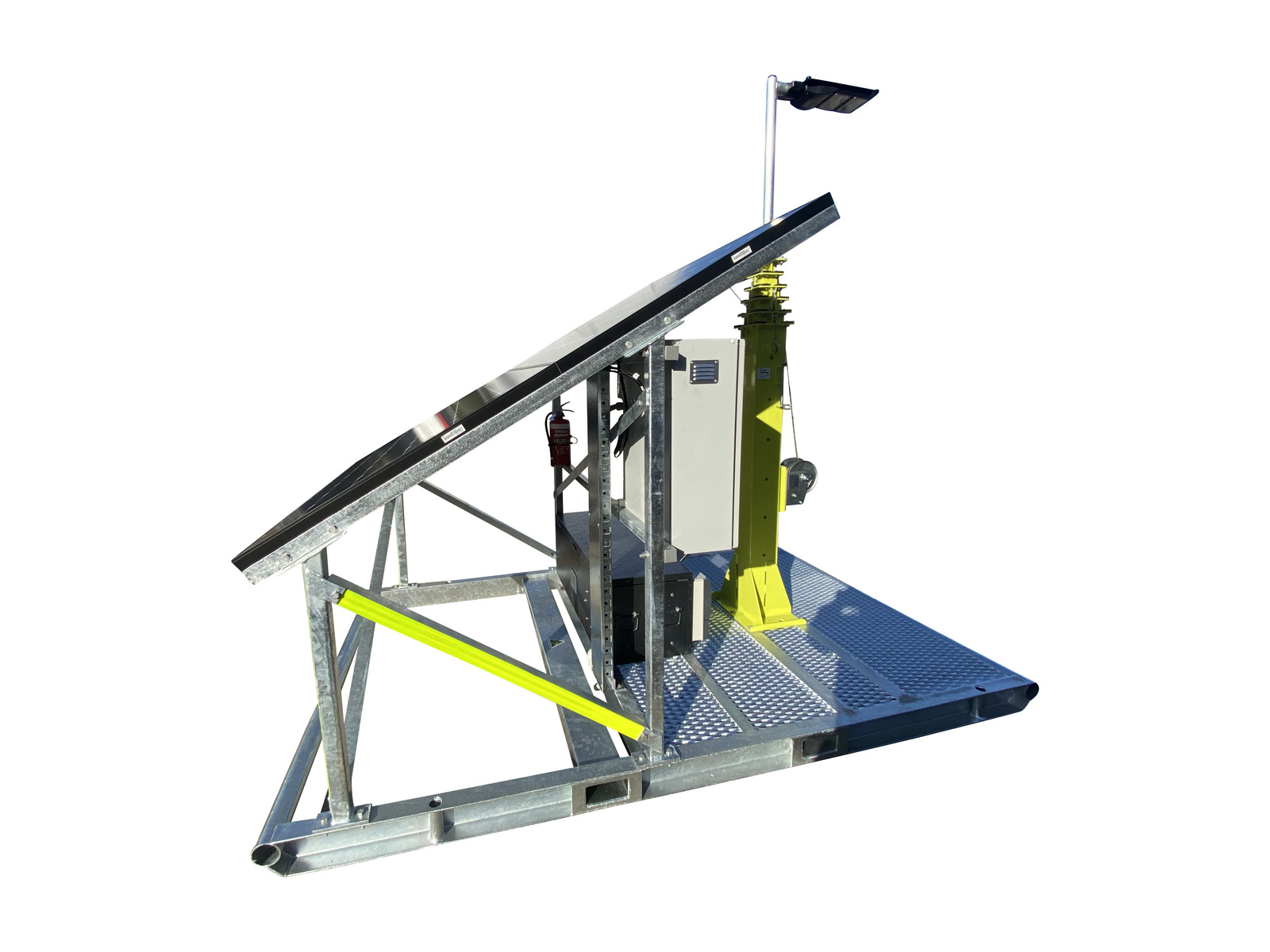

The Telco Antennas Skid Mounted Communications System has been designed specifically for the harsh
and forever changing landscapes of Mines and construction sites across Australia. With a focus on
providing a rugged, practical, adaptable solution that requires minimal maintenance and can be rapidly
deployed in the field to support Wi-Fi networks, UHF, 3G, 4G and 5G communication systems, CCTV
Cameras, GPS tracking systems, meteorological and ecological data collection.

Skid Frame:
The Skid is built from heavy-duty Galvanised steel to provide a robust and durable base to support the
mast and solar system. The frame has four 1tonne lifting lugs located on each corner that can be used for
loading and unloading or as towing points to move the skid around site with heavy machinery, four
through frame anchor points to secure the system to the ground if required and two forklift tine sleaves
located the skids centre of gravity.

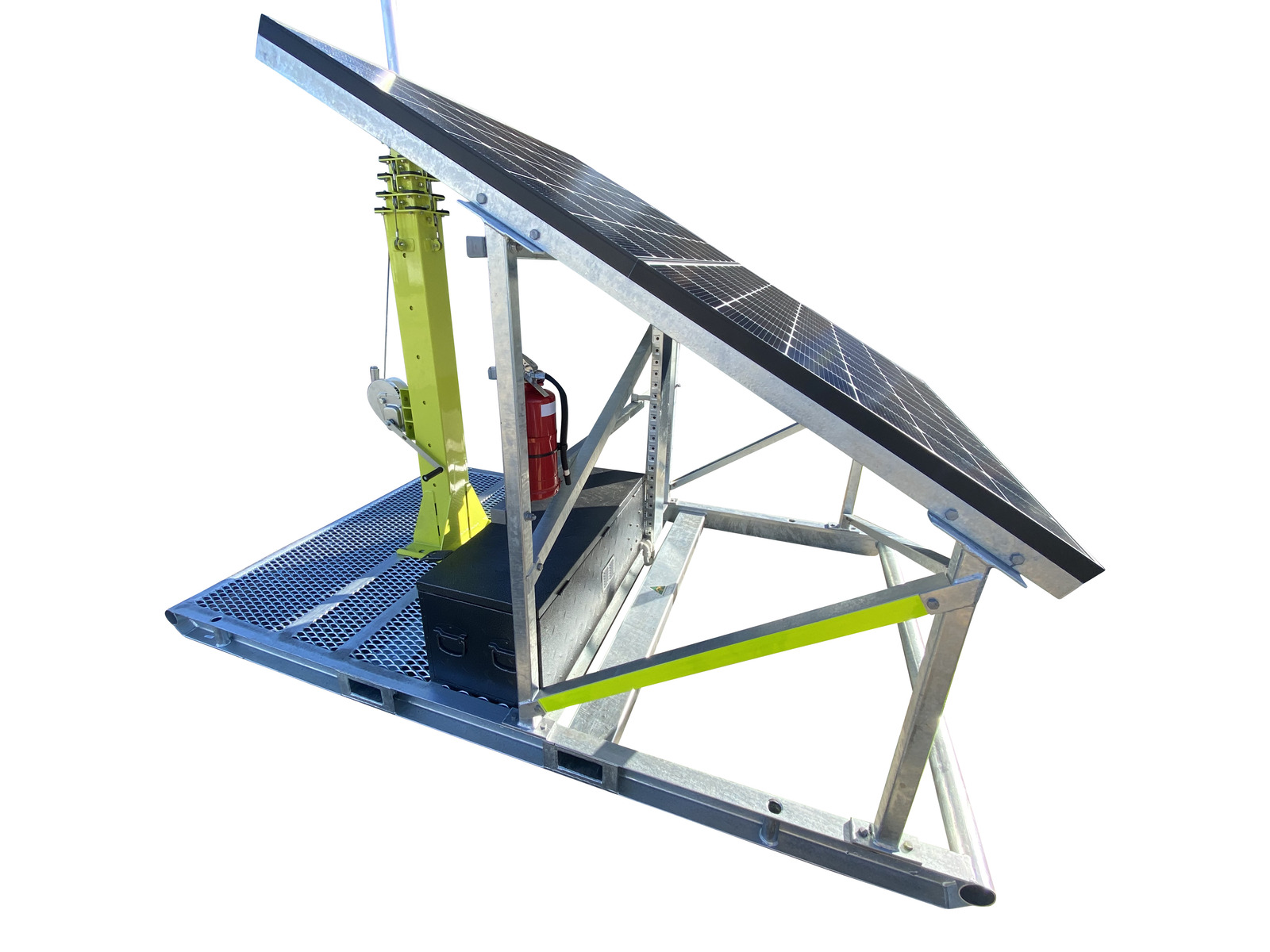

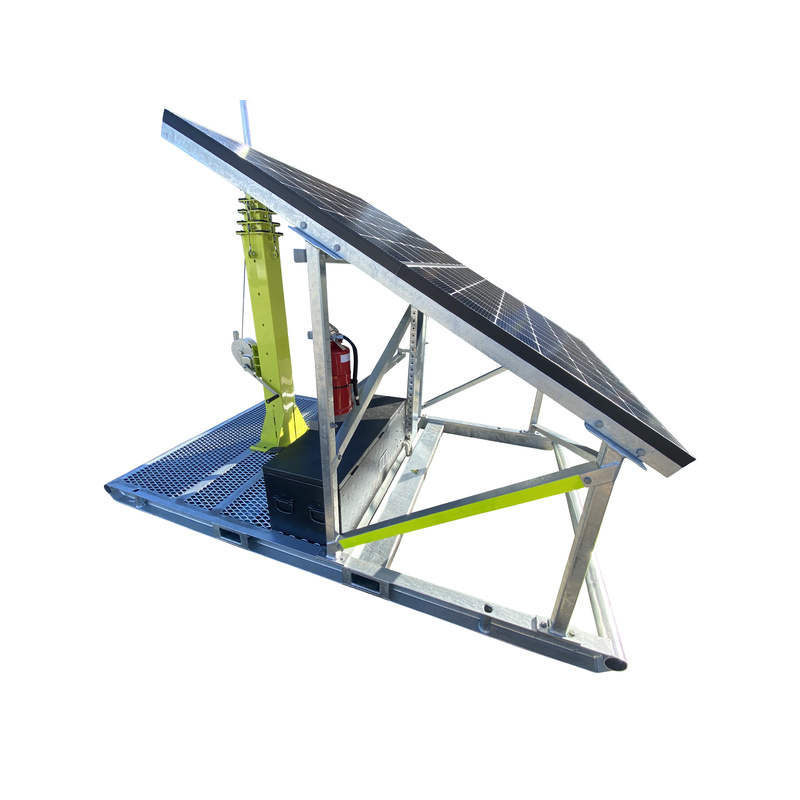

Solar and Power System:
Providing an adaptable solution was a key design aspect for this system, so as a standard feature we’ve
included full width enclosure mounts and full width solar panel mounting rails making it easy to add
remove or change out solar panels and enclosures as needed.
Because of the multitude of applications the skid can be used for, we custom design each power supply
based on the clients specific requirements but as a standard, they can support up to three 330watt solar
panels and five 120amp batteries before any modifications to the standard design need to be made.

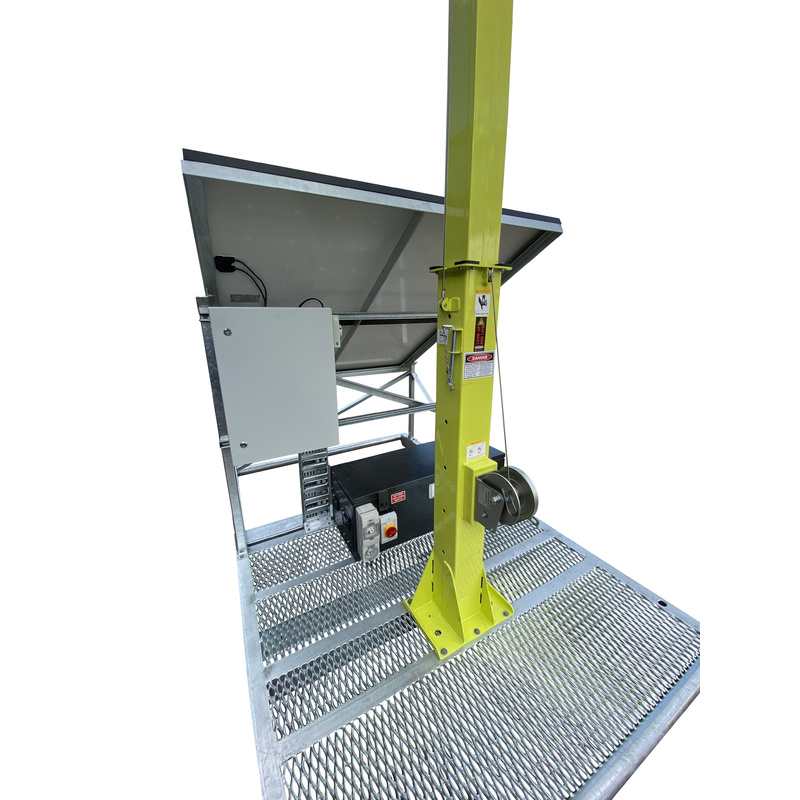

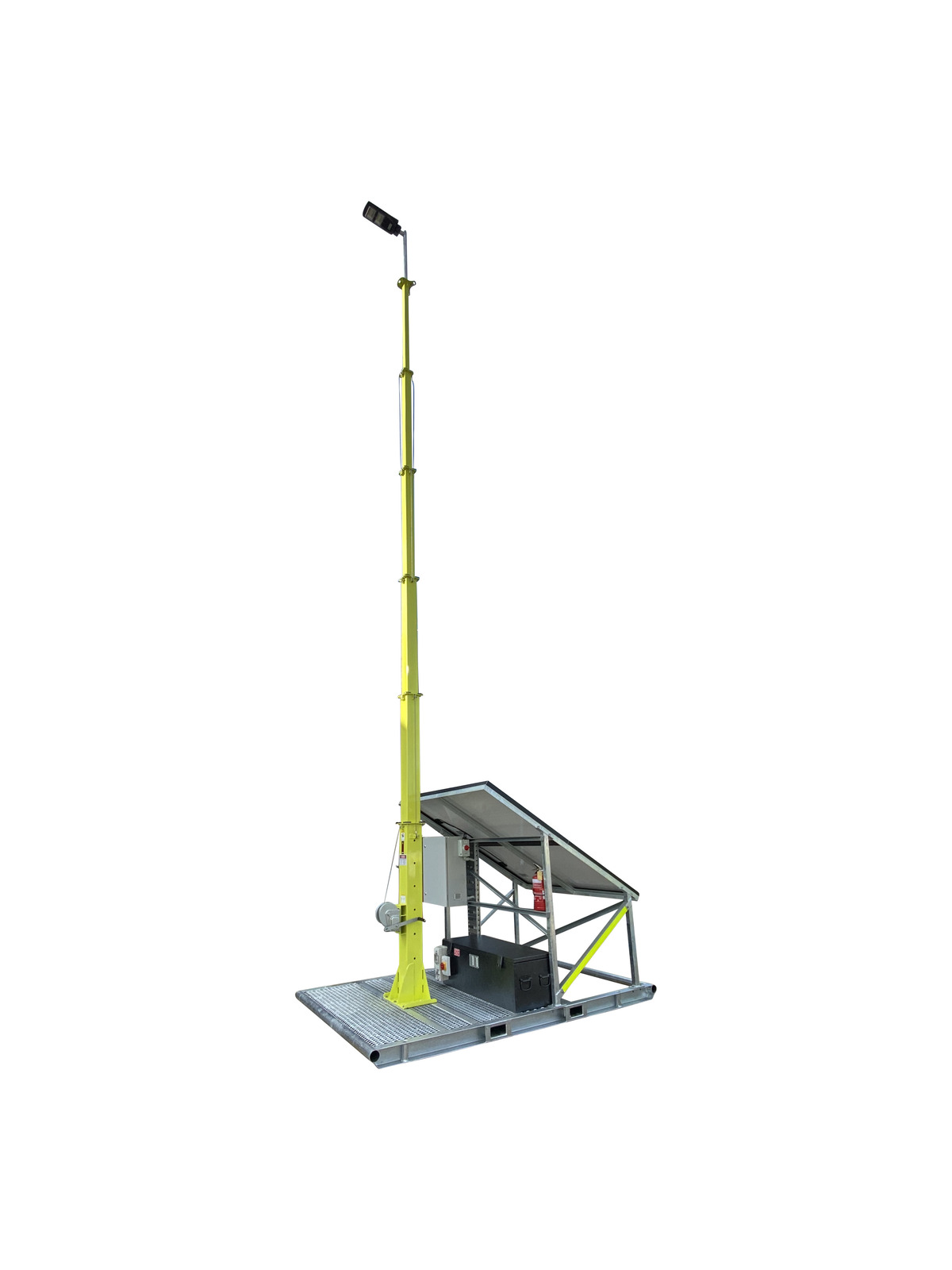

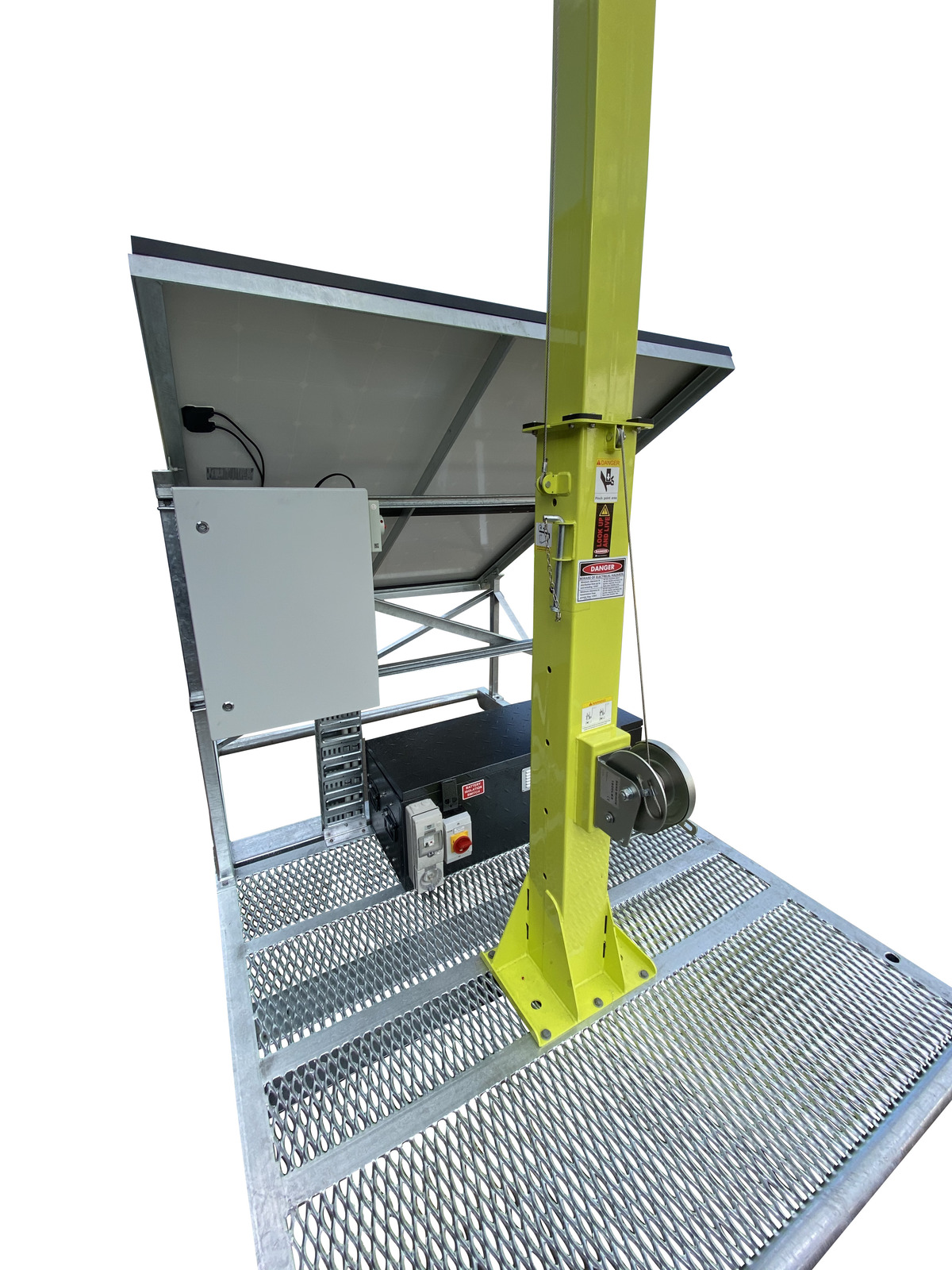

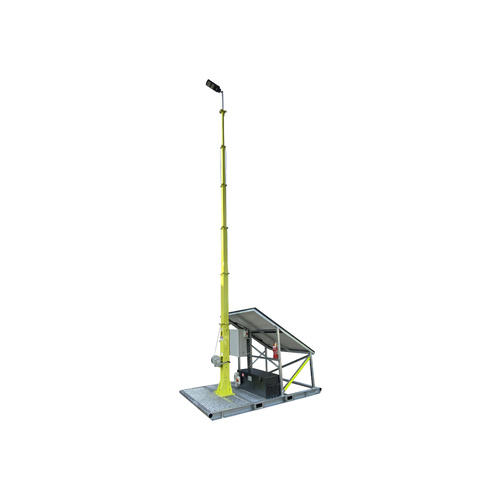

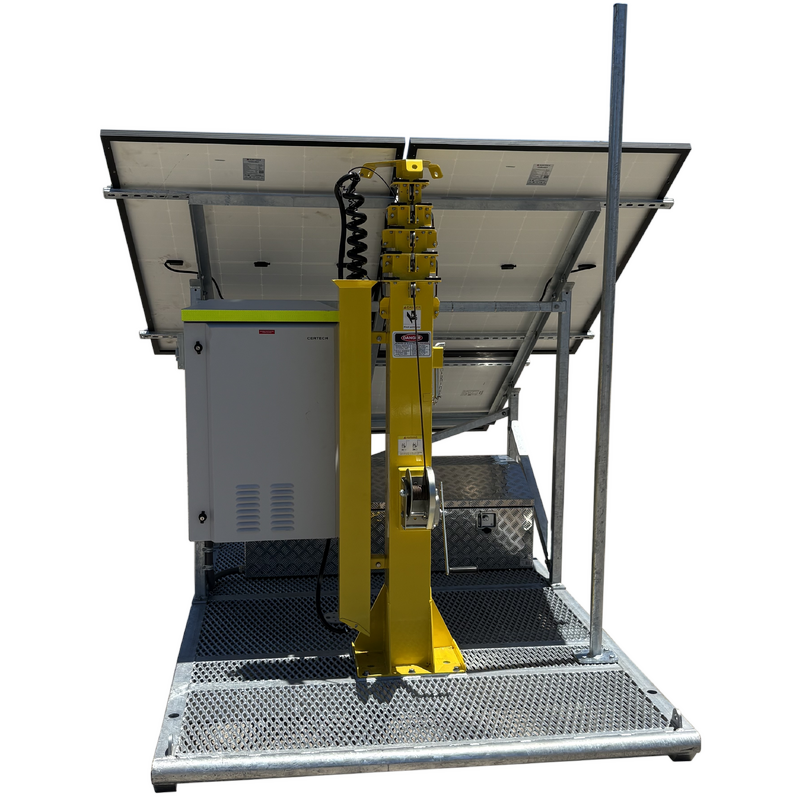

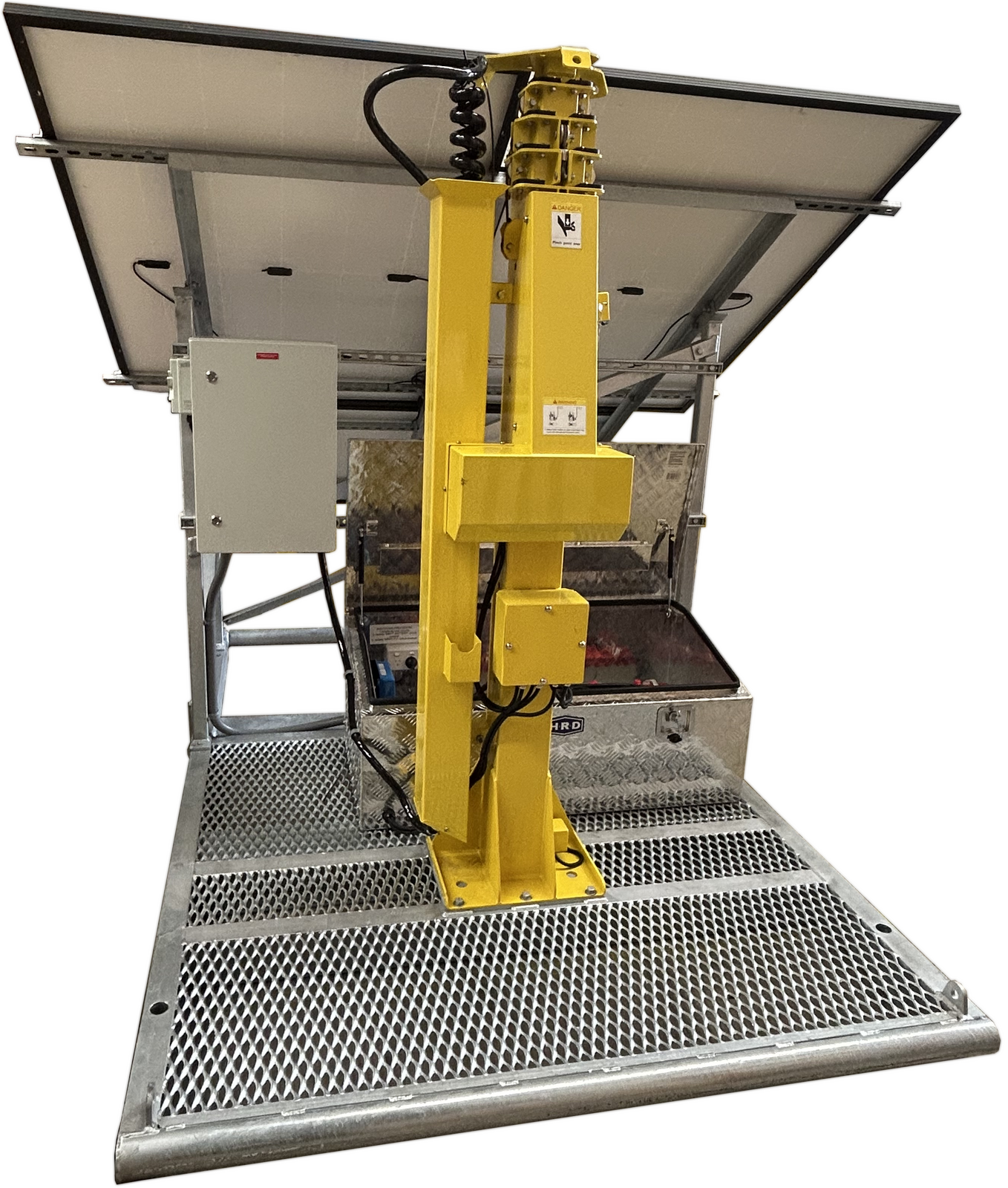

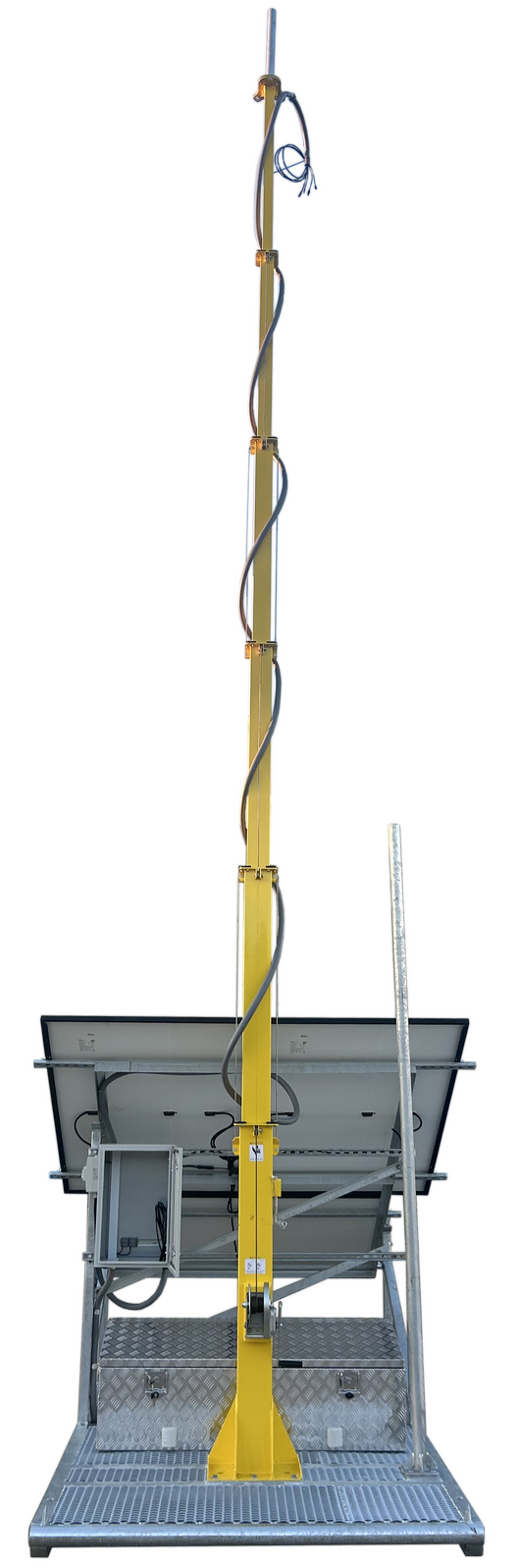

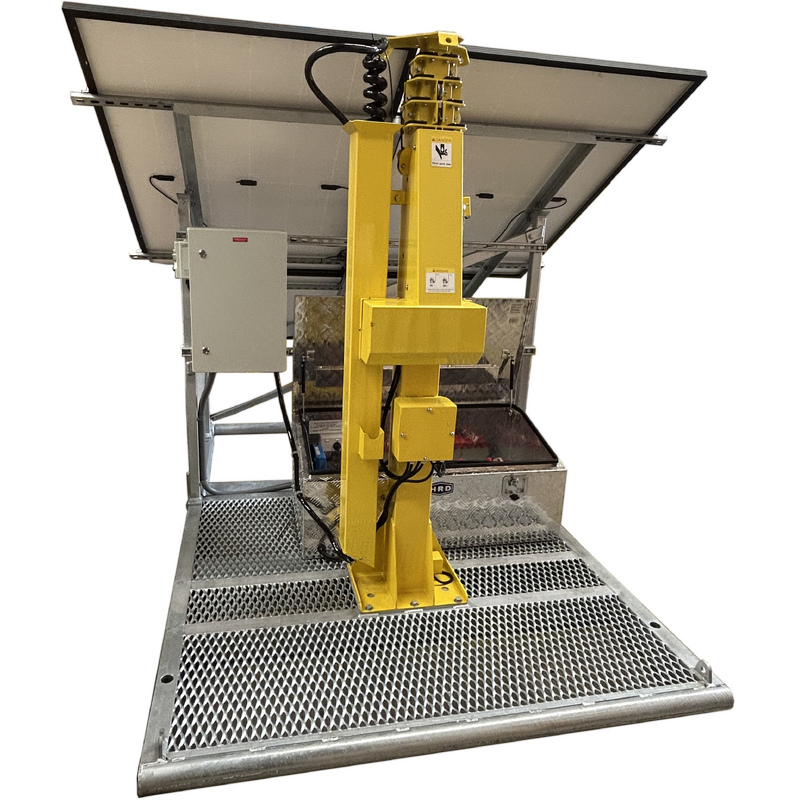

Telescopic Mast:
The 7.5meter Steel Telescopic Mast can support equipment with wind loading of up to 1.89m2 un-guyed in
wind region B and 1.89m2 in wind Region C with the use of guyed wires. It utilises a manual winch with a
built-in self-locking safety feature for raising and lowering of equipment which means the mast requires
minimal maintenance and does away with the added costs of running a pneumatic or hydraulic.

Technical Specifications

Dimensions ( L x W x H ) 2800mm x 1800mm x 1960mm with mast retracted

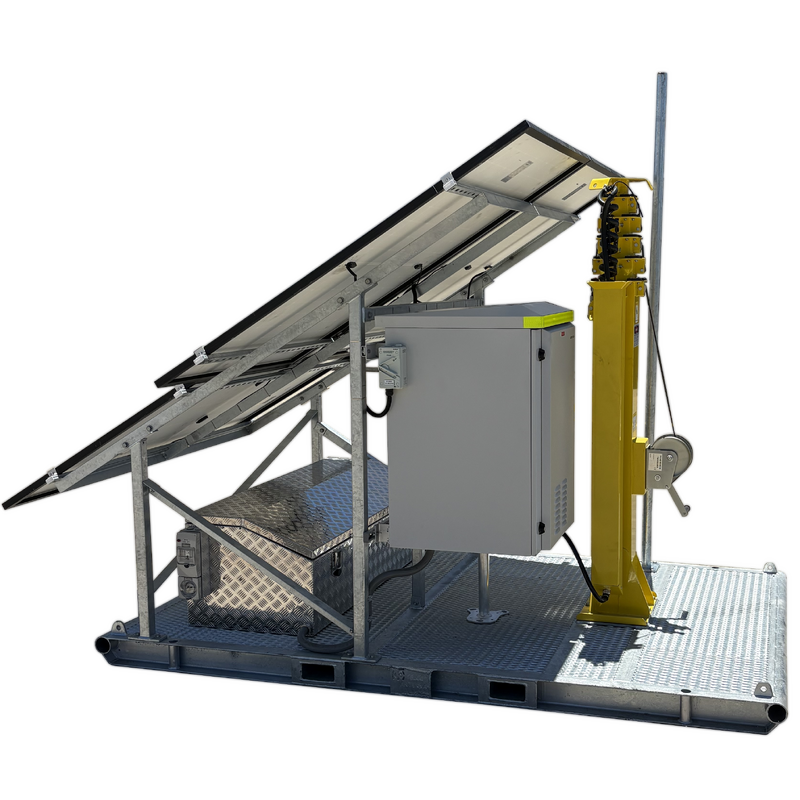

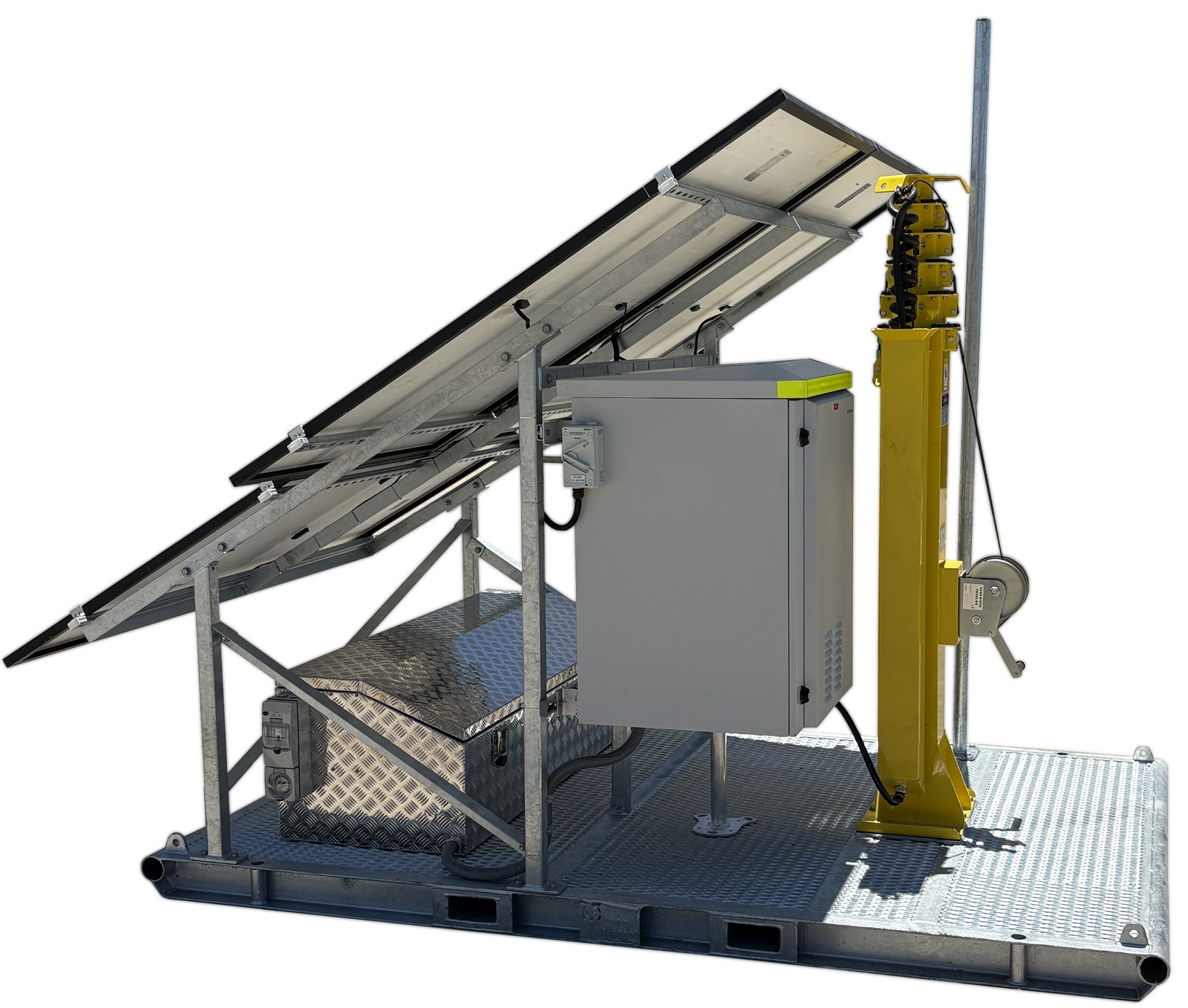

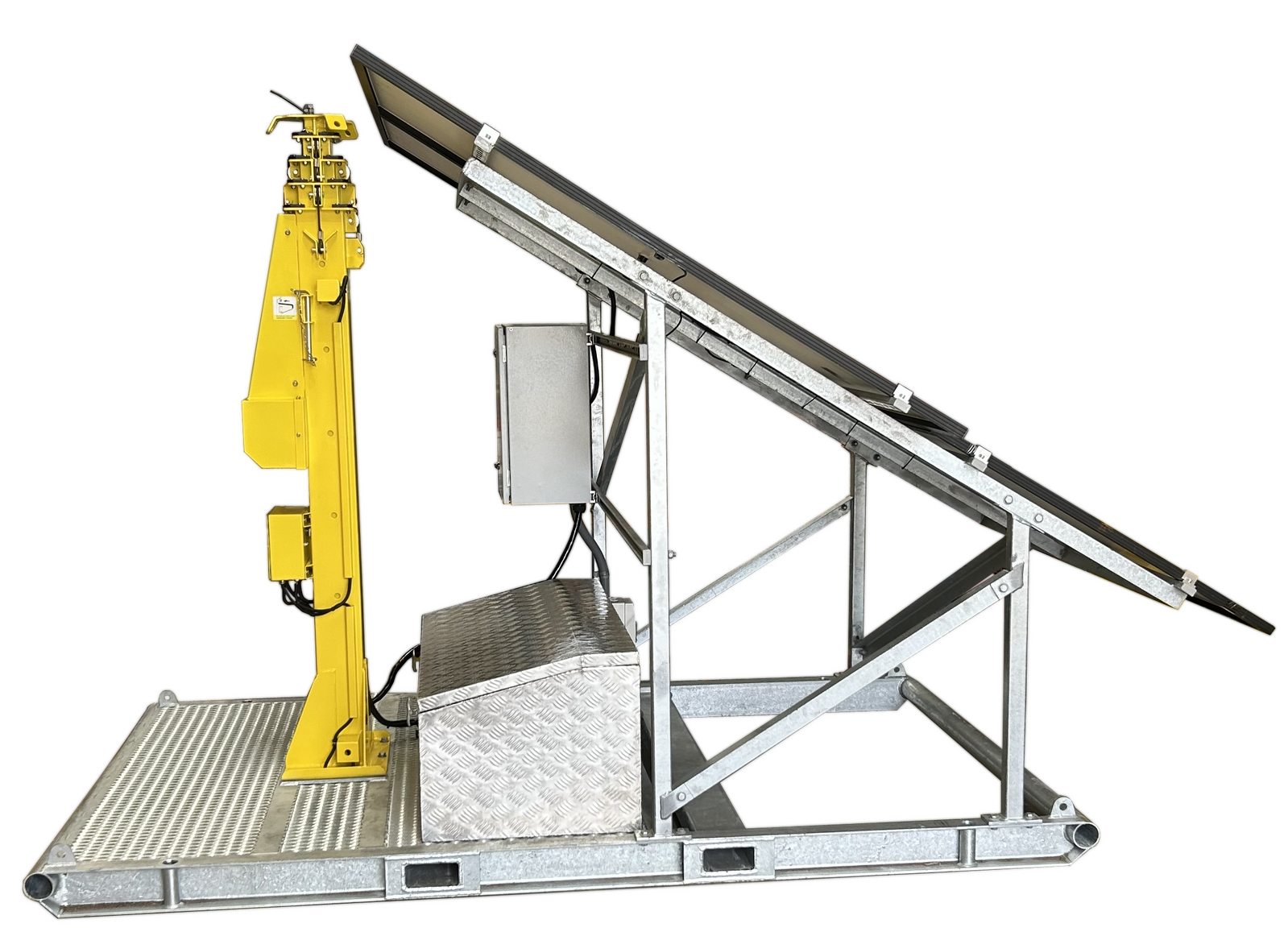

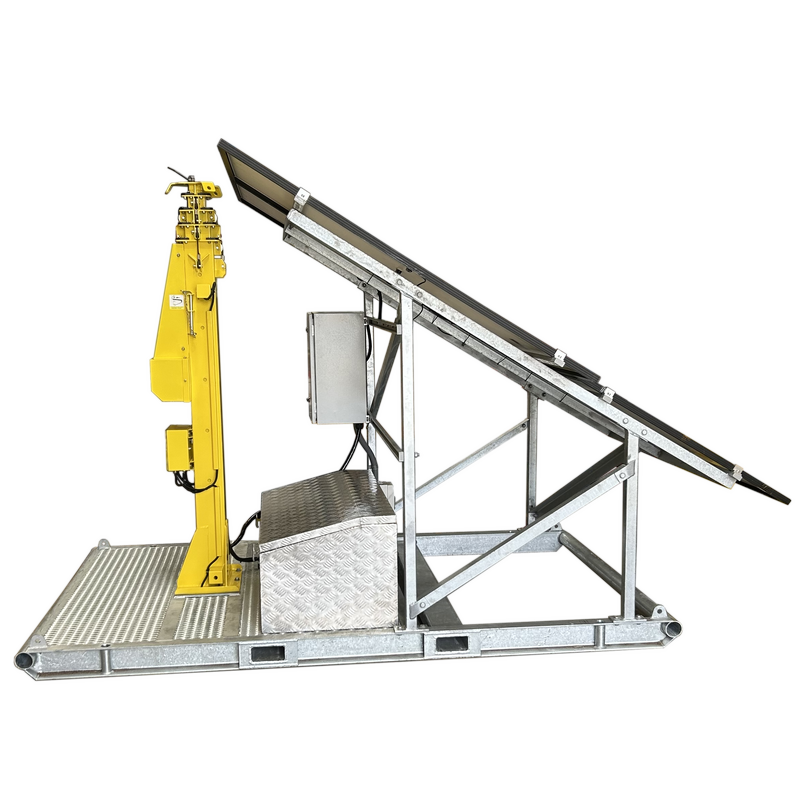

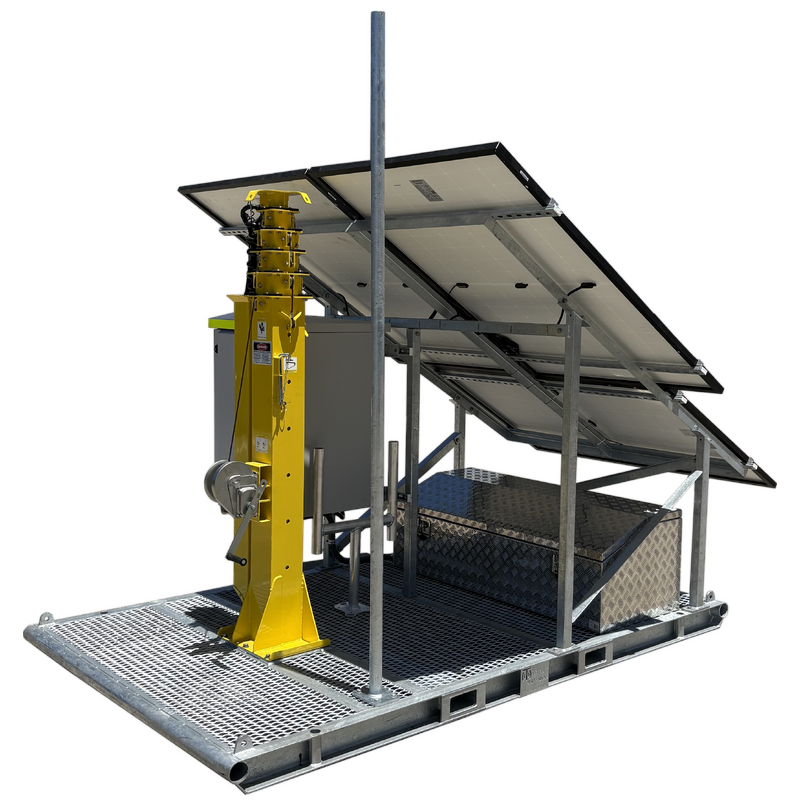

Weight 612kg (as depicted in photos)
Mast Details 1800mm collapsed 7800mm extended
Expected lateral deflection with 600mm dish antenna @ 27m/s:
self-supporting: 157mm
Guyed: 20mm
Design ultimate wind speed 64.0m/s (Wind region C)
Design Serviceability wind speed 47.0m/s
Optional solar array 2 x 330watt LG Neon3 panels
Optional battery arrangement 2 x 120amp lead acid batteries
Optional Electrical enclosure ( H x W x D ) 800 x 600 x 400 IP66 powder coated finish

(TF-VM-SKID)

SKU TF-VM-SKID
Brand Telco
Shipping Width 1.800m
Shipping Height 1.960m
Shipping Length 2.800m
Shipping Cubic 9.878400000m3
Unit Of Measure ea
