SMA Male to FME Male Patch Lead



Key Features



  • Highest quality & best fitting connector on the market

  • 15cm of RG316 cable

  • Gold SMA Male, nickel plated FME Male connectors

  • Suits most network gateway style modems, or modems with protruding antennas.



Specifications / Frequency



  • This cable has been tested and exhibits average cable loss of 0.47dB over full band 694-2700MHz.

    • 840MHz: 0.28dB

    • 885MHz: 0.30dB1

    • 710MHz: 0.25dB1

    • 815MHz: 0.17dB

  • Please contact us for test report



Electrical Specifications



  • Resistance: 50Ω

  • Frequency Range: DC-3GHz

  • Working Voltage: 335V RMS

  • Withstand Voltage: 1000V RMS

  • Insertion Loss: Enquire for test report



Mechanical/Environmental Specifications



  • Cable: 150mm RG316

  • Durability: >500 cycles

  • Body Material: Brass

  • Plating Material: Nickel/Gold

  • Pin/Socket Contact: Beryllium

  • Pin/Socket Plating: Gold/Gold

  • Insulator: PTFE

  • Operating Temperature: -55° to 155° C



Automatic Price Breaks



  • The price listed for this item is for a quantity of 1-24 units

  • Prices will automatically incur a bulk-buy discount during checkout depending on quantity ordered

  • For large orders please contact our team to arrange a quote.



Discounts



  • 25-49 units = 10% Discount

  • 50-74 units = 15% Discount

  • 75-99 units = 20% Discount

  • 100-249 units = 24% Discount

  • 250-499 units = 29% Discount

  • 500-999 units = 33% Discount

  • +1000 units = 37% Discount



Current stock levels: Approx. 1000 units.

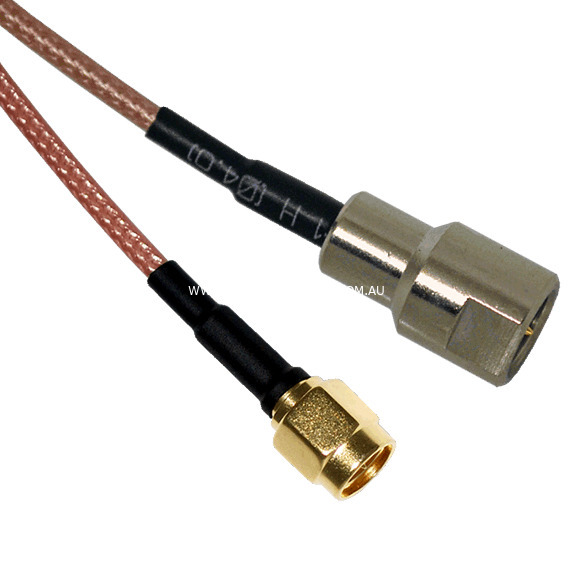

Product image is representative only - for exact dimensions and/or specification please contact us for a copy of the CAD drawing.



Read More

(SMAM-FMEM-316)

SKU SMAM-FMEM-316
Shipping Weight 0.0500kg
Shipping Width 0.050m
Shipping Height 0.050m
Shipping Length 0.150m
Shipping Cubic 0.000375000m3
