SMB Male Right Angle Crimp Connector - RG174/RG178/RG188/RG316
SKU: SMBM-RA-316
SMB Male Right Angle Crimp Connector
Key Features
-

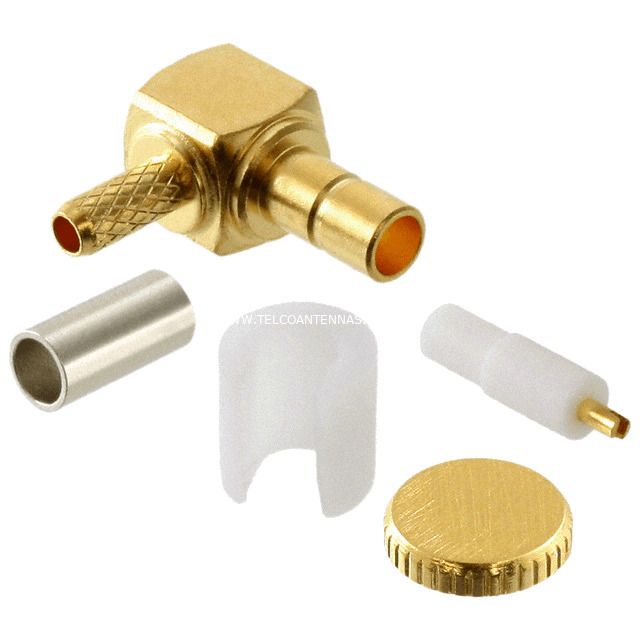

Right angle SMB socket with male pin
-
Suits 2.5mm diameter cables such as RG174, RG178, RG188, RG316, and LMR100.
Usage
-
A crimp connector is used to terminate the end of a coaxial cable to allow connection to an RF device or antenna
-
Each series of connector differs by method of connection, size, and electrical properties, allowing a technician to select a connector to best match the intended purpose.
-
Most crimp connectors consist of three components - the connector body, pin/socket, and crimping ferrule
-
Terminating a coaxial cable with a crimp connector requires three tools - a wire stripper/cutter, soldering iron, and hex crimp
-
You can find instructional videos on crimping most connectors on YouTube.
Crimp Hex Die Sizing
-
RG316/RG174 - 0.128"
-
RG58/LMR195 - 0.213"
-
LMR400/RG8 - 0.429"
For large orders please contact our team to arrange a quote.
Product image representative only, for exact dimensions and/or specification please contact us for a copy of the CAD drawing.
Specifications /Frequency
Electrical Specifications
-
Resistance: 50Ω
-
Frequency Range: DC-4GHz
-
Working Voltage: 335V RMS
-
Withstand Voltage: 1000V RMS
-
Contact Resistance: - (1) Centre Contact: <6mΩ - (2) Outer Contact: <1mΩ
-
Insulation Resistance: >1000MΩ
-
Insertion Loss: <0.3dB/1.5GHz
-
VSWR: <1.35:1/3GHz
Mechanical/Environmental Specifications
-
Durability: >500 cycles
-
Body Material: Brass
-
Plating Material: Gold
-
Pin/Socket Contact: Brass/Beryllium-Copper
-
Pin/Socket Plating: Gold
-
Crimp Ferrule Material: Copper-alloy
-
Crimp Ferrule Plating: Gold
-
Insulator: PTFE
-
Operating Temperature: -55° to 155° C
-
CECC 22130
-
MIL-C-39012
-
IEC 60169-10
-
RoHS Compliant (Pb Free)
(SMBM-RA-316)
