Right Angle SMA Male to SMA Female Adaptor

Right Angle SMA Plug to SMA Jack

Right Angle SMA Pin to SMA Socket



What is an adaptor?



A coaxial adaptor can be either inter-series or intra-series.



  • An inter-series (also known as between-series) adaptor is used to convert one type of connector into a different series connector.

  • An intra-series (also known as within-series) adaptor is used to connect two devices or cables of the same series, cable joiners and bulkheads are the most common type of intra-series adaptors.



Automatic Price Breaks







Specifcations



Electrical Specifications



  • Resistance: 50Ω

  • Frequency Range: DC-12.4GHz

  • Working Voltage: 335V RMS

  • Withstand Voltage: 1000V RMS

  • Insertion Loss: <0.15dB/3GHz

  • VSWR: <1.2:1



Mechanical/Environmental Specifications



  • Durability: >500 cycles

  • Body Material: Brass

  • Plating Material: Gold

  • Pin/Socket Contact: Brass/Beryllium-Copper

  • Pin/Socket Plating: Gold/Gold

  • Insulator: PTFE

  • Operating Temperature: -55° to 155° C

  • CECC 22110

  • MIL-C-39012

  • IEC-60169-15

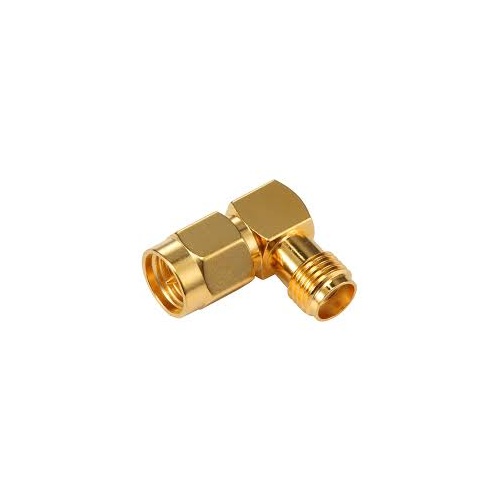

Product image is representative only - for exact dimensions and/or specification please contact us for a copy of the CAD drawing.




tick rohs compliant lead free



(SMAF-SMAM-RA)

SKU SMAF-SMAM-RA
Shipping Weight 0.0450kg
Shipping Width 0.050m
Shipping Height 0.050m
Shipping Length 0.030m
Shipping Cubic 0.000075000m3
