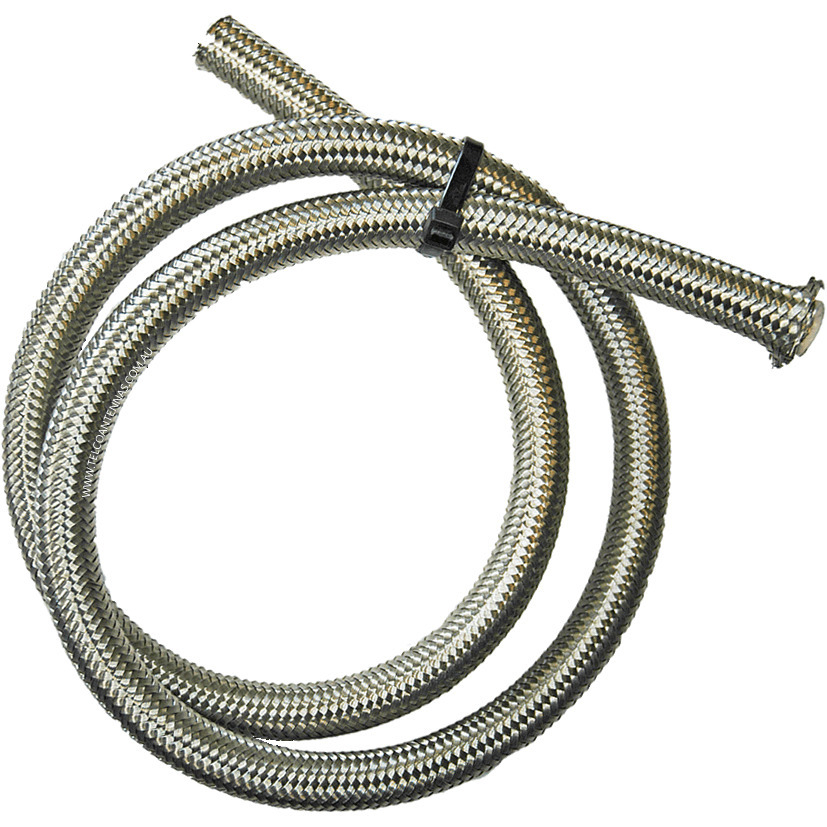

Stainless Steel Cable Braid - Cut to Length


Key Features


  • Grade 304 stainless steel

  • High coverage, flexible sleeving

  • 50mm inner diameter

  • Please enquire for bulk pricing.


Tailored cost quotes = cost effective freight


  • Prices are displayed per metre and while it's possible to order through our website, we prefer to provide you with a tailored quote - this will help us give you the most cost effective freight option, and volume discounting.


Protecting your investment


  • Bird proofing is an important consideration where there is a likelihood of RF feeders and connector weatherproofing being attacked and damaged by birds, or other animals

  • Galahs, Cockatoos and Corellas are the primary culprits observed to cause damage to feeder equipment

  • Critical Ethernet and coaxial communications run in many industrial facilities are at risk of attack from rodents known to chew PVC and PE cable jackets

  • Cables with an outer diameter less than 1/2", such as Cat5/6 Ethernet, RG58, LMR195, and LMR400, are at particular risk

  • Stainless steel cable ties are recommended for use in high risk areas.


RF Shielding


  • While many high quality coaxial and Ethernet cables have a good level of shielding from nearby RF sources, stainless braiding can be used to add another layer of protection against EMI/RFI coupling and crosstalk

  • It is particularly useful in applications where communications run parallel with power or other unshielded cables.


Installation note


  • Stainless steel braid must be isolated from making contact with other metallic components

  • Contact or rubbing against a metal surface may result in PIM interference

  • It is important that stainless steel braiding not be installed on the antenna tail, within proximity of the antenna, or in the path of the centre lobe.



Shipping Weight 0.0450kg
Shipping Width 0.100m
Shipping Height 0.500m
Shipping Length 0.100m
Shipping Cubic 0.005000000m3
