Starlink Gen 3 DC TO DC Power Convertor

  • Compatible with:
    • Starlink Standard Actuated (Gen2)​
    • Starlink Standard (Gen3)​
    • Starlink Enterprise​

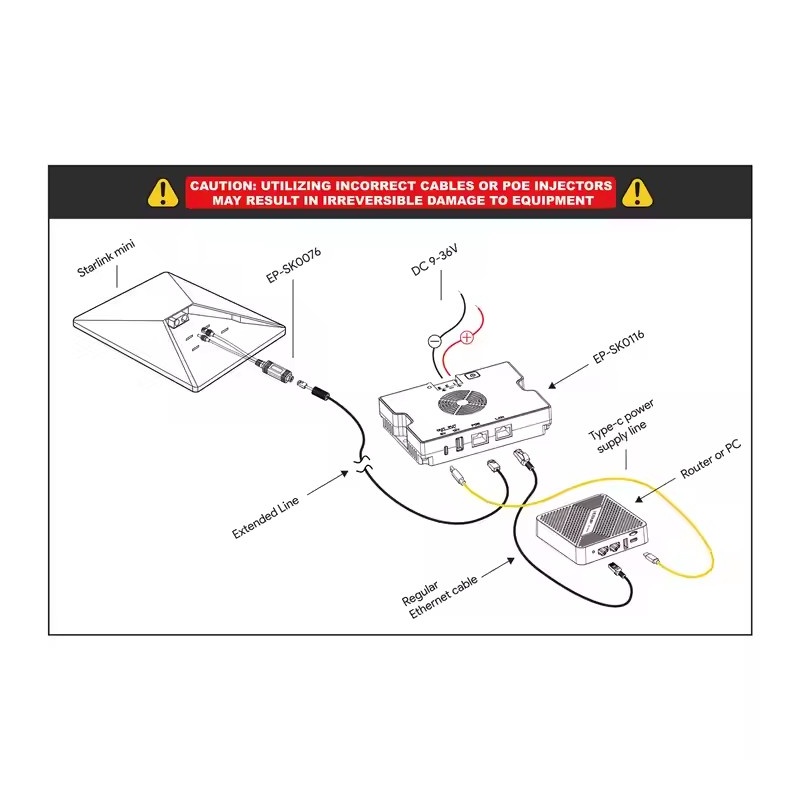

    • Starlink Mini​
    • Starlink High Performance​
    • Starlink Flat High Performance



  • Compatible with vehicle, solar, or off-grid power sources. Supports 9-36V input and delivers a stable 52V ±3% output, up to 6A (320W). Ensures consistent Starlink performance, even in extreme conditions.
  • Dual Output Design: USB-A & Type-C Port - Features additional USB-A (12V/3A) and USB-C (5V/3A) ports for powering routers, mesh WiFi units, or other devices—no extra adapters required.

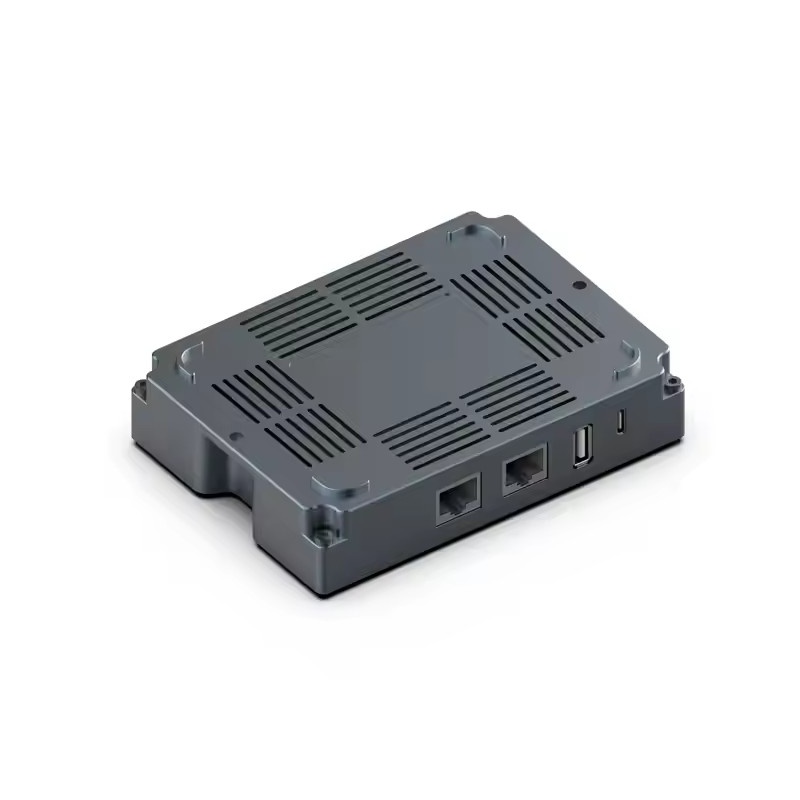

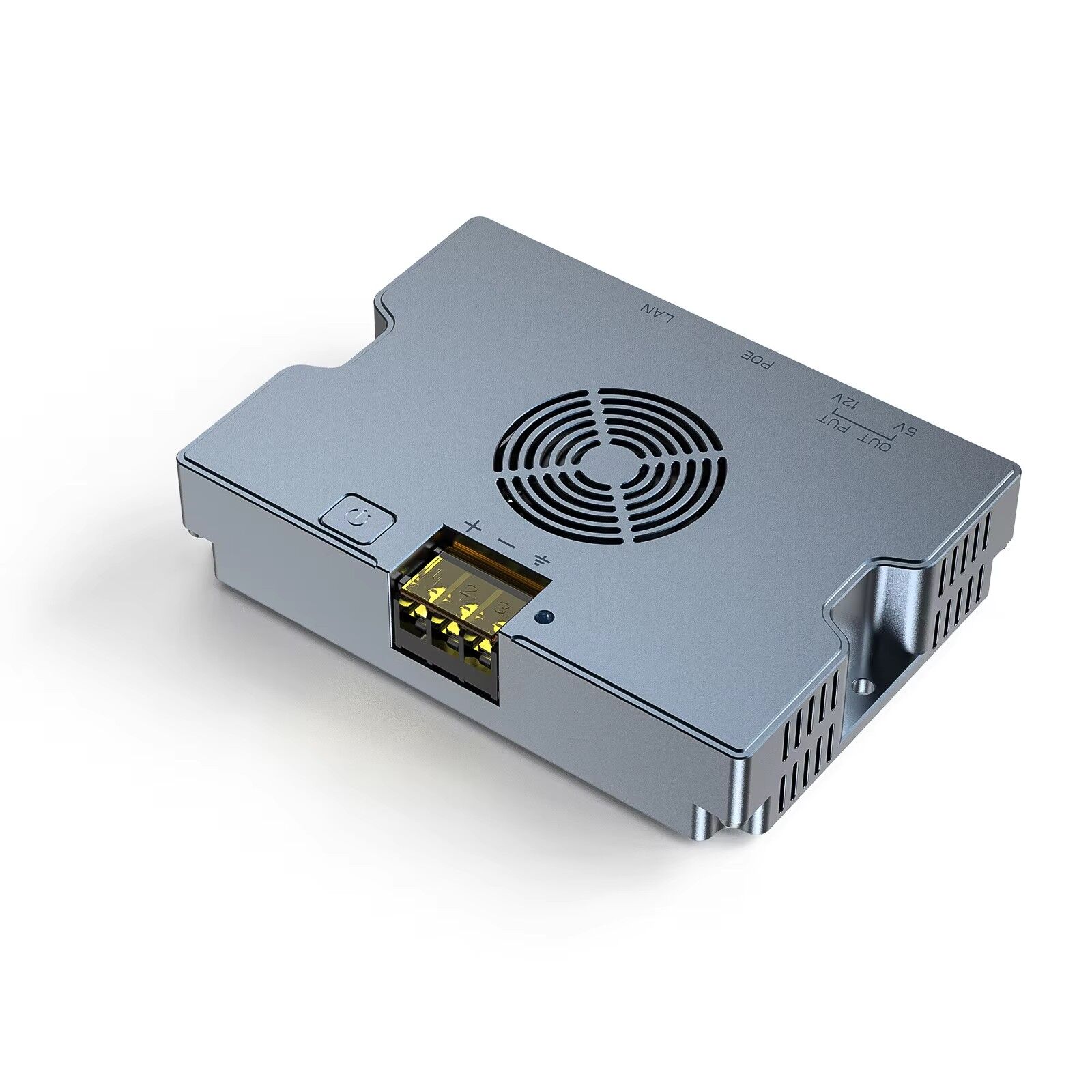

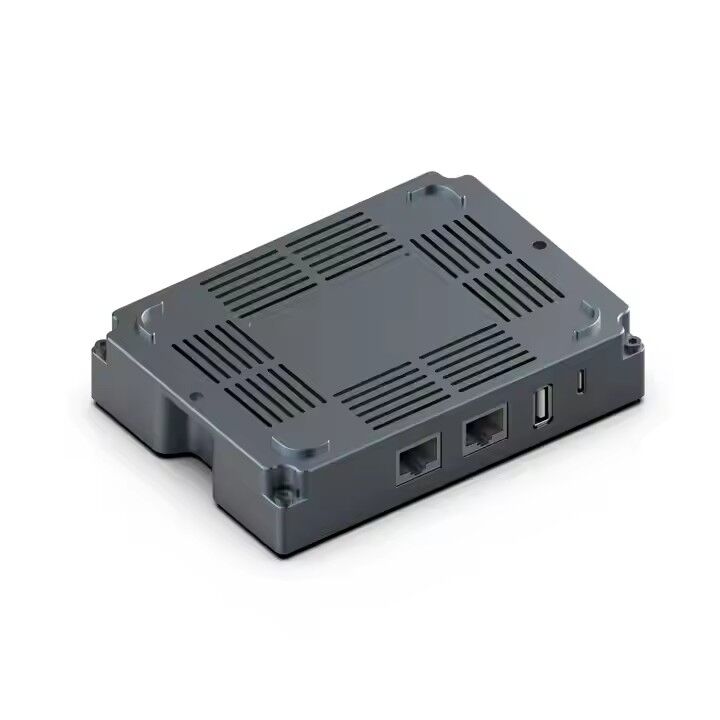

  • Smart Cooling | Rugged and Durable - Built-in smart cooling fan automatically adjusts speed based on temperature for quiet and efficient operation. Enclosed in a premium all-aluminum case for excellent heat resistance and long-lasting durability.
  • Safe, Reliable, and Easy to Use - One-button power switch, reverse polarity protection, surge protection (±8KV), ESD protection (±15KV), and wide operating temperature range (-30°C to 75°C). Simply connect and power your Starlink with confidence.



Specifications:

  • Pin Configuration +V: 1, 2, 3, 6; -V: 4, 5, 7, 8

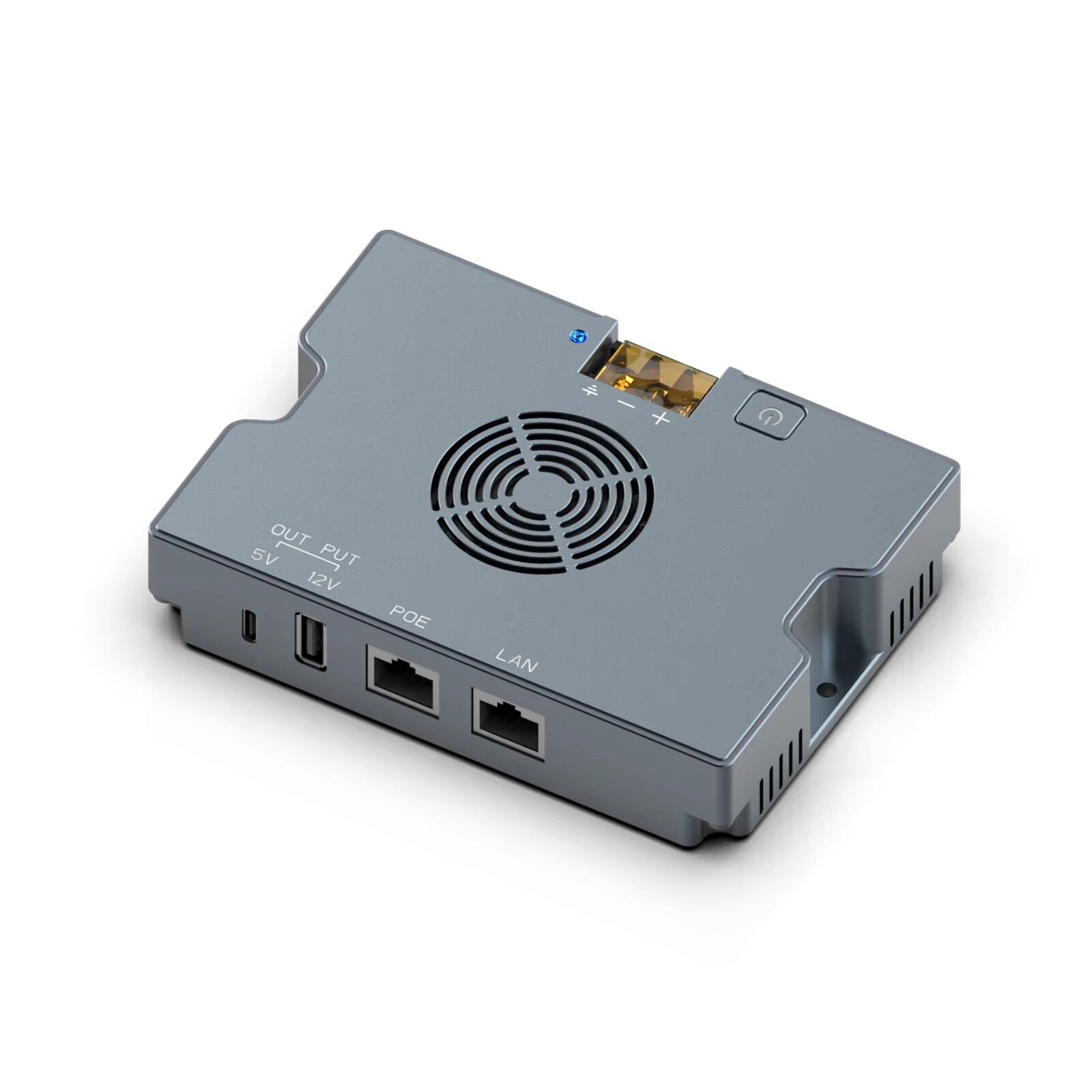

  • Interface: LAN*1, POE*1, 3pin Power*1,Type C*1,USB-A*1,
  • Network Speed: 10/100/1000M
  • Input: DC 9~36V
  • Output: 52V 6A Max 320W
  • USB-A Output: 12V/3A Max
  • Type C Output: 5V/3A Max
  • Protection Surge: ± 8KV (Differential), Class A
  • ESD: ± 8KV (Contact), ± 15KV (Air), Class A
  • Power Switch
  • Reverse Polarity Protection
  • Intelligent Cooling Fan
  • Operating Temperature: -30~+75°C
  • Operating Humidity: 10% - 90% (Non-condensing)
  • Storage Temperature: -40 to +90°C
  • Power: 340W









(TF-EP-SK0116)

SKU TF-EP-SK0116
Shipping Weight 0.2500kg
Shipping Width 0.100m
Shipping Height 0.020m
Shipping Length 0.100m
Shipping Cubic 0.000200000m3
