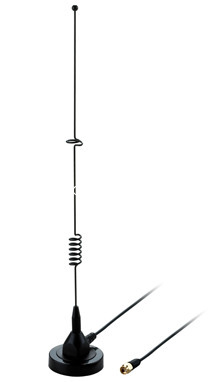

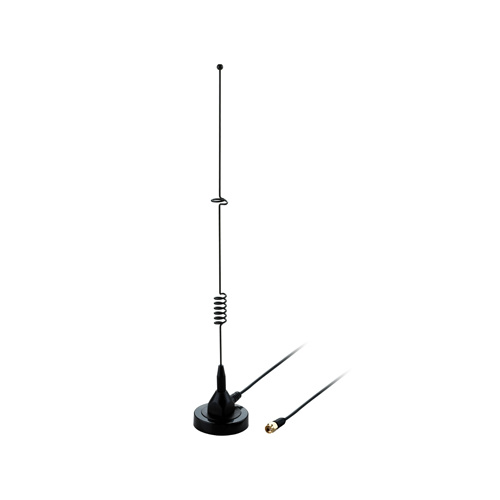

Taoglas GA.110 3G+4G+4GX Cellular Flexible Whip, Magnetic Antenna SMA(M)



Key Features



  • 698MHz to 3500MHz

  • Robust high strength neodymium magnet mount

  • High electrical efficiency

  • IP67 Certified.



Usage



  • The GA.110 flexible whip monopole has high performance on all common CDMA/GSM/2G/3G/4G bands used worldwide

  • Taoglas specifications are compiled completely from real-life testing in state of the art CTIA approved 3D anechoic chambers

  • Peak gain, average gain/efficiency are both optimised to provide extended coverage area in the azimuth (horizontal direction), while also maintaining an omni-directional pattern for close in reception/transmission

  • Testing of the whip antenna on the bracket, in free-space, and on a reference ground-plane has been done to show the benefit of the L-bracket

  • The bracket allows complete concealment of the cable for a more secure integration and cleaner installation

  • The cable can also be routed out of the back wall of the bracket into the interior of the mounting wall for added security against vandalism

  • The standard version comes with 1 metre extremely low loss CFD200 (0.3dB against 0.7dB for RG58) to allow for flexibility of placement

  • The cable and connector can be completely customised, the whip itself can also be changed for different frequency bands or gain requirements.



Specifications / Frequency



Network Compatibility
Yes/No
Gain (peak, 3m cable)
Telstra 4GX (700MHz)
compatible
-2.5dBi
Optus 4G+ (700MHz)
compatible
-2.5dBi
Telstra Next-G™ (850MHz)
compatible
-0.1dBi
Vodafone 4G+ (850MHz)* *Please check Vodafone Coverage Map
compatible
-0.1dBi
Optus Regional 3G (900MHz)
compatible
1.80dBi
Vodafone Regional 3G (900MHz)
compatible
1.80dBi
Telstra/Optus/Voda 4G (1800MHz)
compatible
1.2dBi
All Carriers - Urban/Metro 3G (2100MHz)
compatible
1.2dBi
Optus 4G TDD (2300MHz)
compatible
1.2dBi
802.11 b/g/n/ac WiFi (2400MHz)
compatible
-0.5dBi
Telstra Metro 4GX (2600MHz)
compatible
-0.5dBi



Electrical Specifications



  • Frequency Range: 698-960MHz 1710-3500MHz

  • Input Impedance: 50Ω

  • Max Input Power: 50W

  • Polarisation: Vertical Linear



Mechanical/Environmental Specifications



  • Construction: Steel Core, ABS Casing

  • Cable: 1m CFD200

  • Connector: SMA Male

  • Operating Temperature: -40°C to +85°C

  • Weight: 0.420kg

  • Dimensions: 298 x 50mm (Height x Diameter)



Response Graphs



Return Loss

Taoglas GA.110 gain

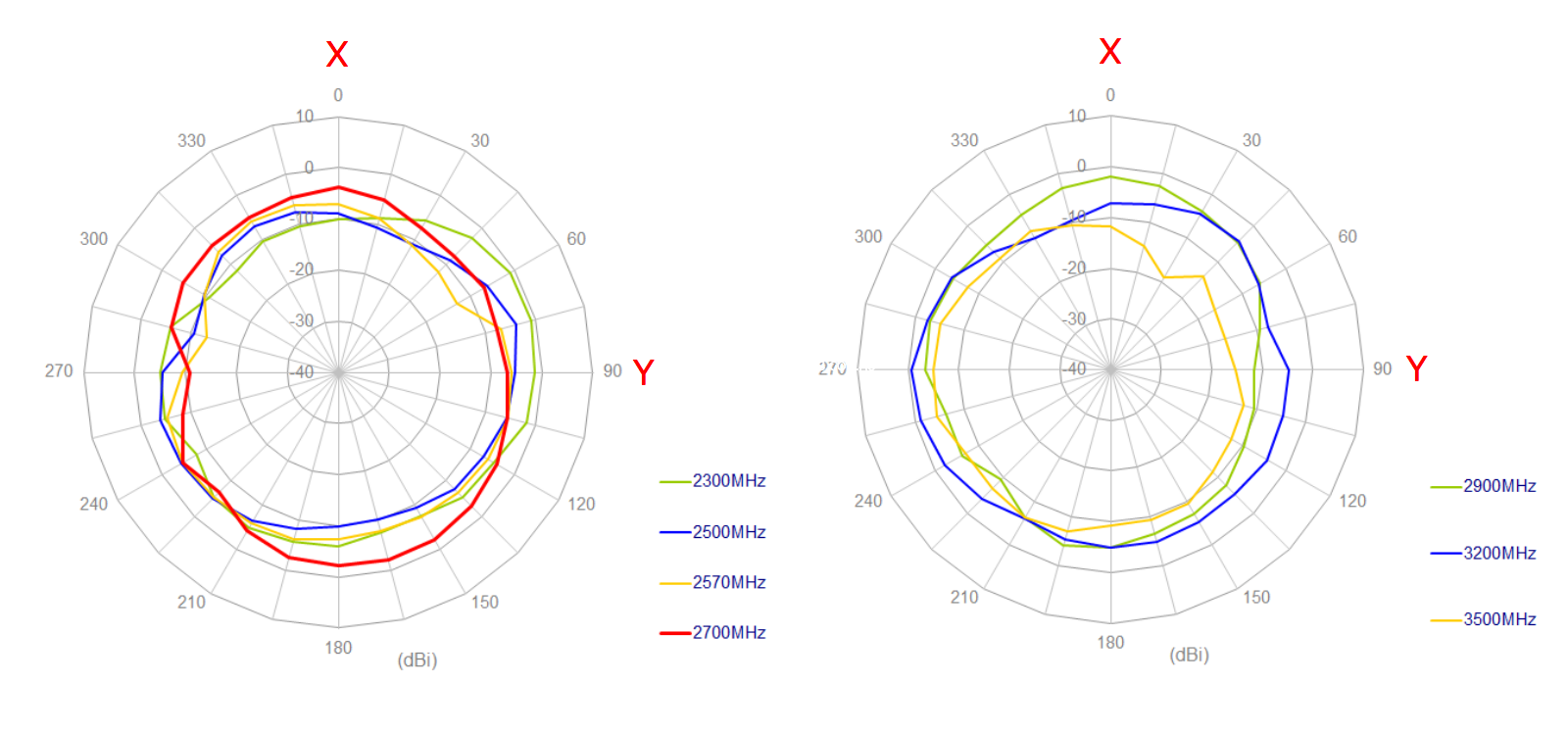

Radiation Patterns (X,Y Plane)



Taoglas GA.110 radiation pattern response



Radiation Patterns (X,Y Plane)



Taoglas GA.110 radiation response
